42
D726
B

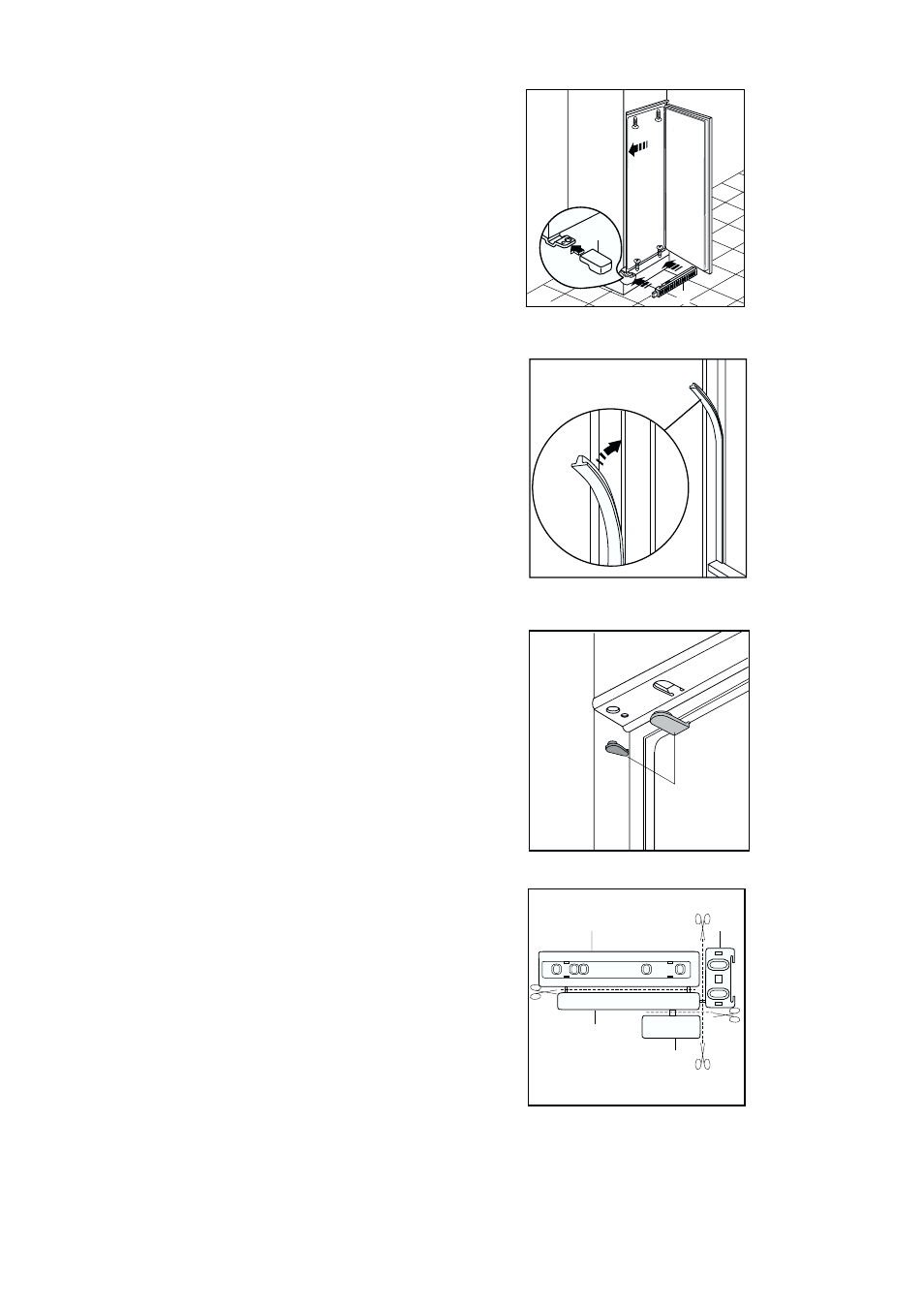

Apply covers (B) on joint cover lugs and into hinge
holes.
Separate parts A, B, C, D as shown in the figure
PR266
A B
C
D
D724
Apply the sealing strip pushing it between the
refrigerator and the adjacent cabinet.
Open the door and push the appliance against the
side of the kitchen unit opposite to that of appliance
hinges.
Fasten the appliance with 4 screws provided in the
kit included with the appliance. Snap vent grille (C)
and hinge cover (D) into position.
D
C
D723/2
