Slide the appliance into the recess, pushing it
against the wall on the handle side.
PR01
540
50
3
2 1

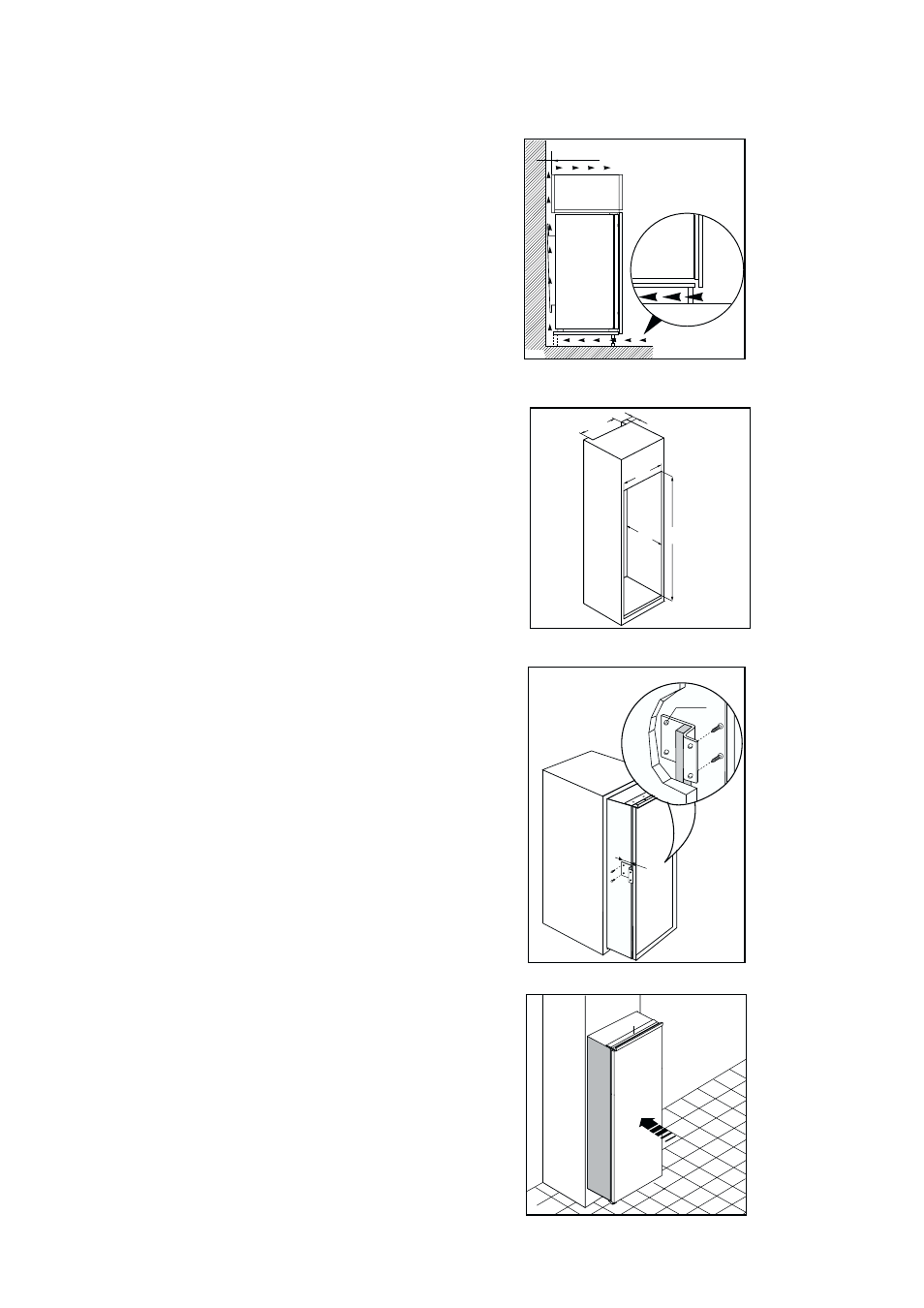

Building-in instructions
Dimensions of housing
Height (1)
1780 mm
Depth (2)
550
mm
Width (3)
560
mm
For safety reasons, minimum ventilation must be as
shown in Fig.
Attention: keep ventilation openings clear of
obstruction.
It is necessary that the niche is provided with a
conduct of ventilation having the following
dimensions:
Depth 50 mm
Width 540 mm
50 mm
min.
200 cm
2
200 cm
2
min.
D567
Drill the unit using a Ø 2.5 mm drill (10 mm max.
penetration);
Fix the square fitting to the appliance.
13mm
D740
Ø 2,5
A
