62

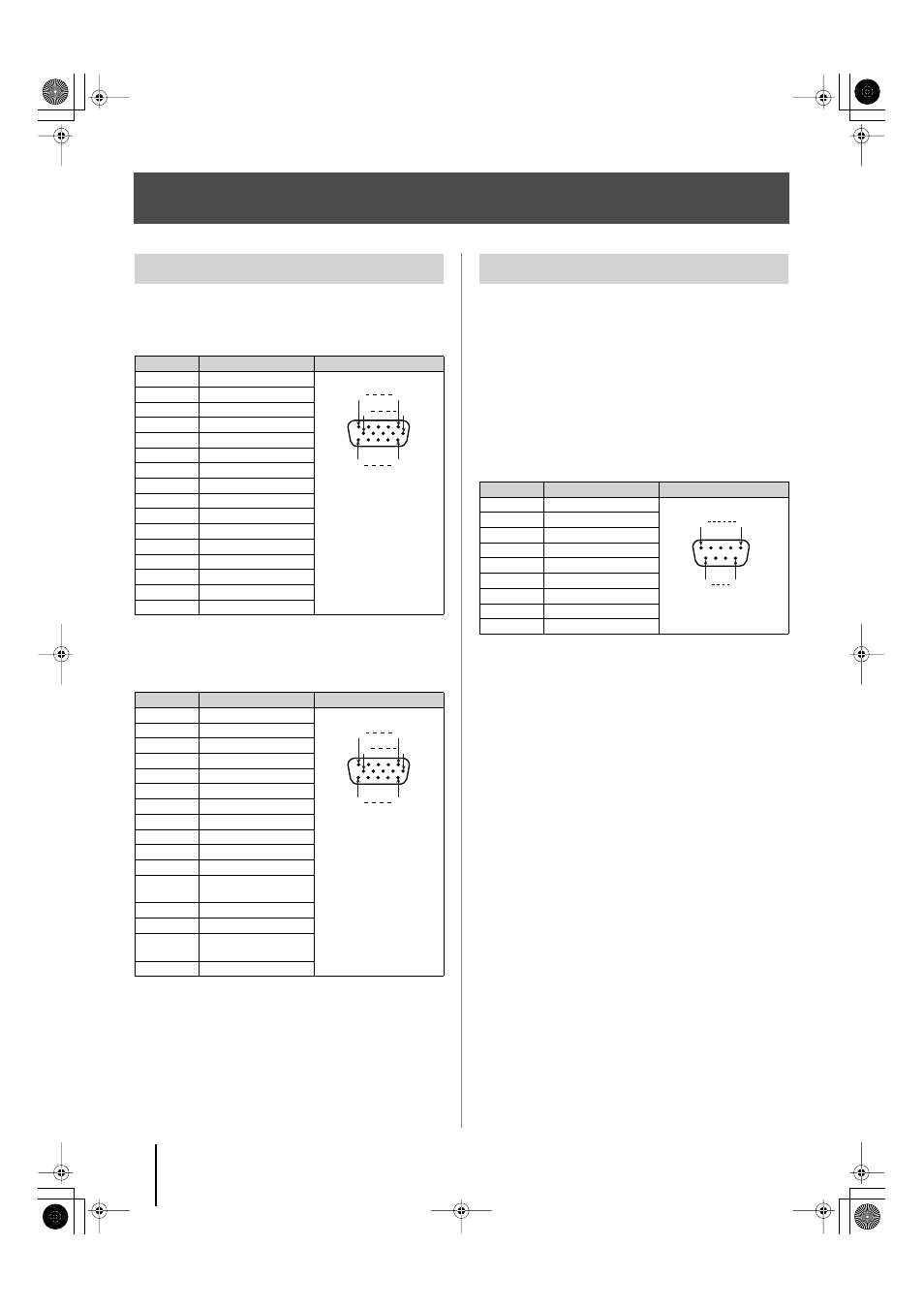

Connector Specifications
■
Inputting and Outputting Analog Component
Signals
•
Connector Type: D-sub 15-pin shrink terminal (female)
■
Inputting and Outputting RGB Signals
•
Connector Type: D-sub 15-pin shrink terminal (female)
•
Connector Type: D-sub 9-pin terminal (male)
•
Transmission Format:
Start-stop synchronization (asynchronous), full duplex
•
Transmission Rate:
9600 bps (Initial setting)/19200 bps
* This can be changed in the menu with “4. REMOTE
Baudrate” under “8. System.”
•
Parity: None
•
Data Length:
8 bits
•
Stop Bit Length: 1 bit
•
Encoding:
ASCII
•
Flow Control:
XON/XOFF
HD/RGB IN OUT Connectors
Pin number
Signal name
Pin Connections
1
Pr
2
Y
3
Pb
4
GND
5
GND
6
Pr-GND
7
Y-GND
8
Pb-GND
9
N.C.
10
GND
11
(Reserved)
12
-
13
-
14
-
15
-
FG
Frame GND
Pin number
Signal name
Pin Connections
1
Red
2
Green
3
Blue
4
GND
5
GND
6
R-GND
7
G-GND
8
B-GND
9
N.C.
10
SYNC-GND
11
(Reserved)
12
(VESA DDC
RESERVED)
13
H-SYNC
14
V-SYNC
15
(VESA DDC
RESERVED)
FG
Frame GND
5
1
15
10
9
6
5
1
15
10
9
6
REMOTE Connector
Pin number
Signal name
Pin Connections
1
DCD
2
RXD
3
TXD
4
DTR
5
GND
6
DSR
7
RTS
8
CTS
9
RI
1
5
6
9
