ELECTRO-VOICE ® Zx5 Owner’s Manual
Suspending Zx5 Speaker Systems (cont’)

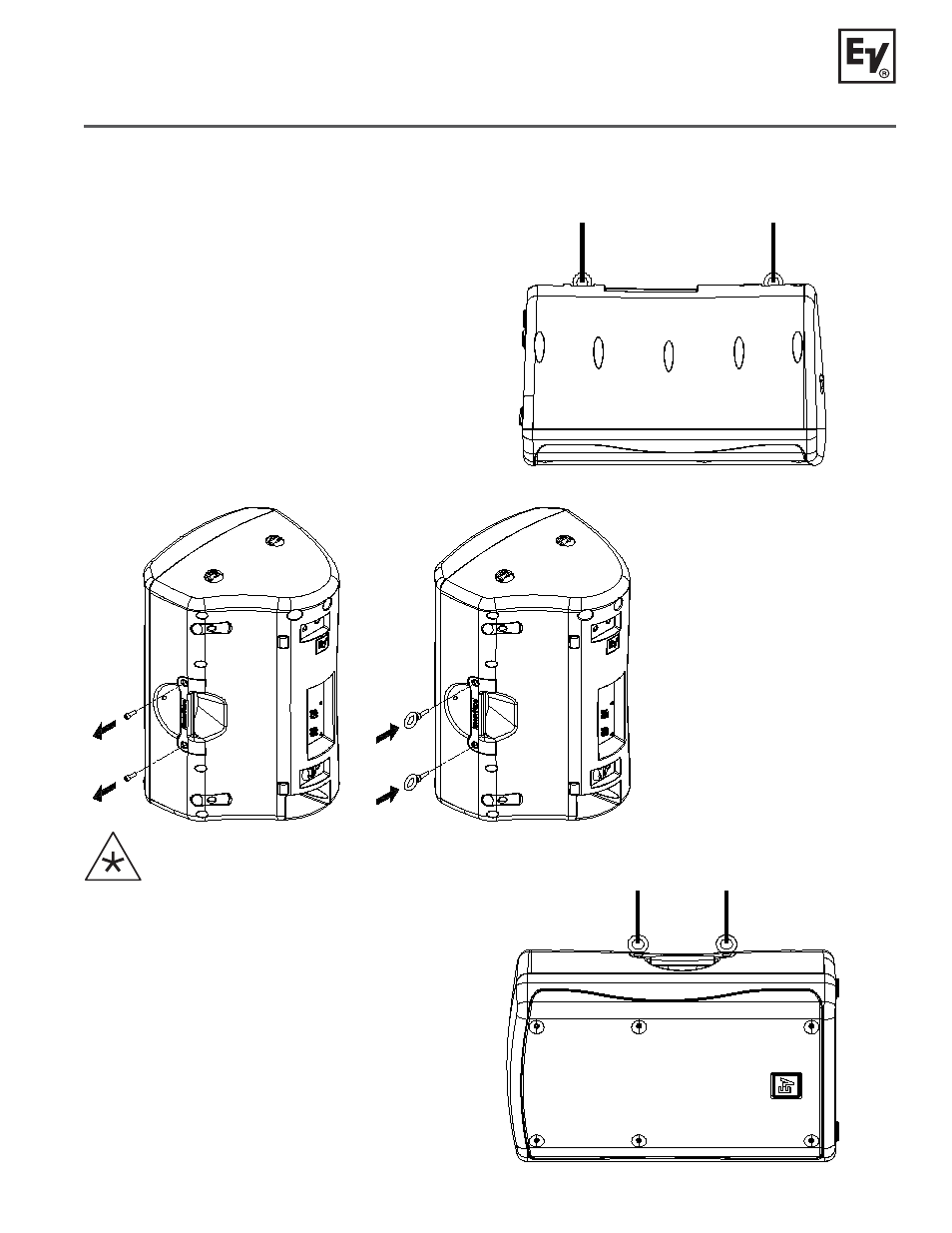

Figure 6:
Suspending the Zx5 Downward from Rear Using
Optional Forged Eyebolt Kit*
Kit Used - EBK-3 Forged M8 Eyebolt Kit (x1)
Figure 7:
Assembling Eyebolts to Handle
for Horizontal Suspension
Figure 8:
Suspending the Zx5 Horizontally from Handle Using
Optional Forged Eyebolt Kit
Kit Used - EBK-3 Forged M8 Eyebolt Kit (x1)
Step 1: Remove Handle Bolts Step 2: Attach Eyebolts
8
*Note - When suspending from the rear M8 suspension
points, it is recommended that the (2) left M8 suspension
points are used on the rear of the enclosure for best weight
distribution in relation to enclosure’s center of gravity.
Horizontal Suspension of the Zx5
The Zx5 is capable of being suspended horizontally from the side (handle) or downward from the
rear with the use of M8 Eyebolts.
