ELECTRO-VOICE ® Zx5 Owner’s Manual
Suspending Zx5 Speaker Systems (cont’)
Arraying and Suspending the Zx5 using optional Electro-Voice Mounting or Array Brackets
Figures 10 and 11 show several applications using EV mounting and array brackets. Carefully
follow the instructions in this manual & the user manual packaged with EV brackets, and always
use safe rigging practices when suspending Zx5.
9

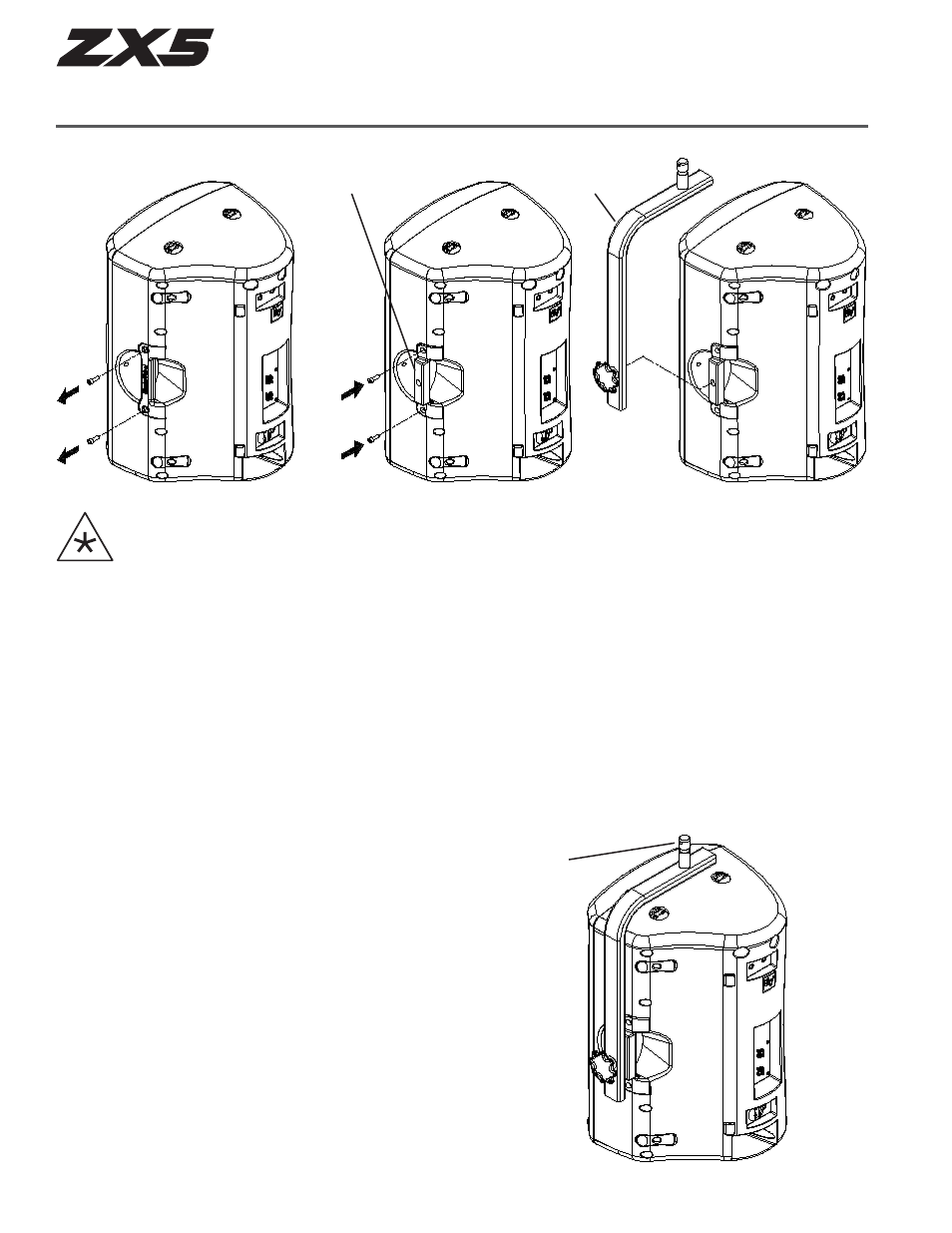

Figure 9:
Assembling HA-5 Adapter for use with VSA-1 Strong-Arm Mount
Kits Used -
HA-5 Handle Adapter Kit (x1)
VSA-1 Strong-Arm Mount (x1)
Figure 10:
Suspending the Zx5 Vertically from Handle Using Optional
Handle Adapter and Strong-Arm Mount
Kits Used -
HA-5 Handle Adapter Kit (x1)
VSA-1 Strong-Arm Mount (x1)
Step 2: Attach HA-5 and Handle Bolts Step 3: Attach VSA-1 Strong-Arm Mount
Spigot to Attach to Beam or
Truss Clamp
*Note - Please consult VSA-1 User Manual for additional
information.
HA-5 Handle Mount VSA-1 Strong-Arm
Step 1: Remove Handle Bolts
and Handle
