ELECTRO-VOICE ® Zx5 Owner’s Manual

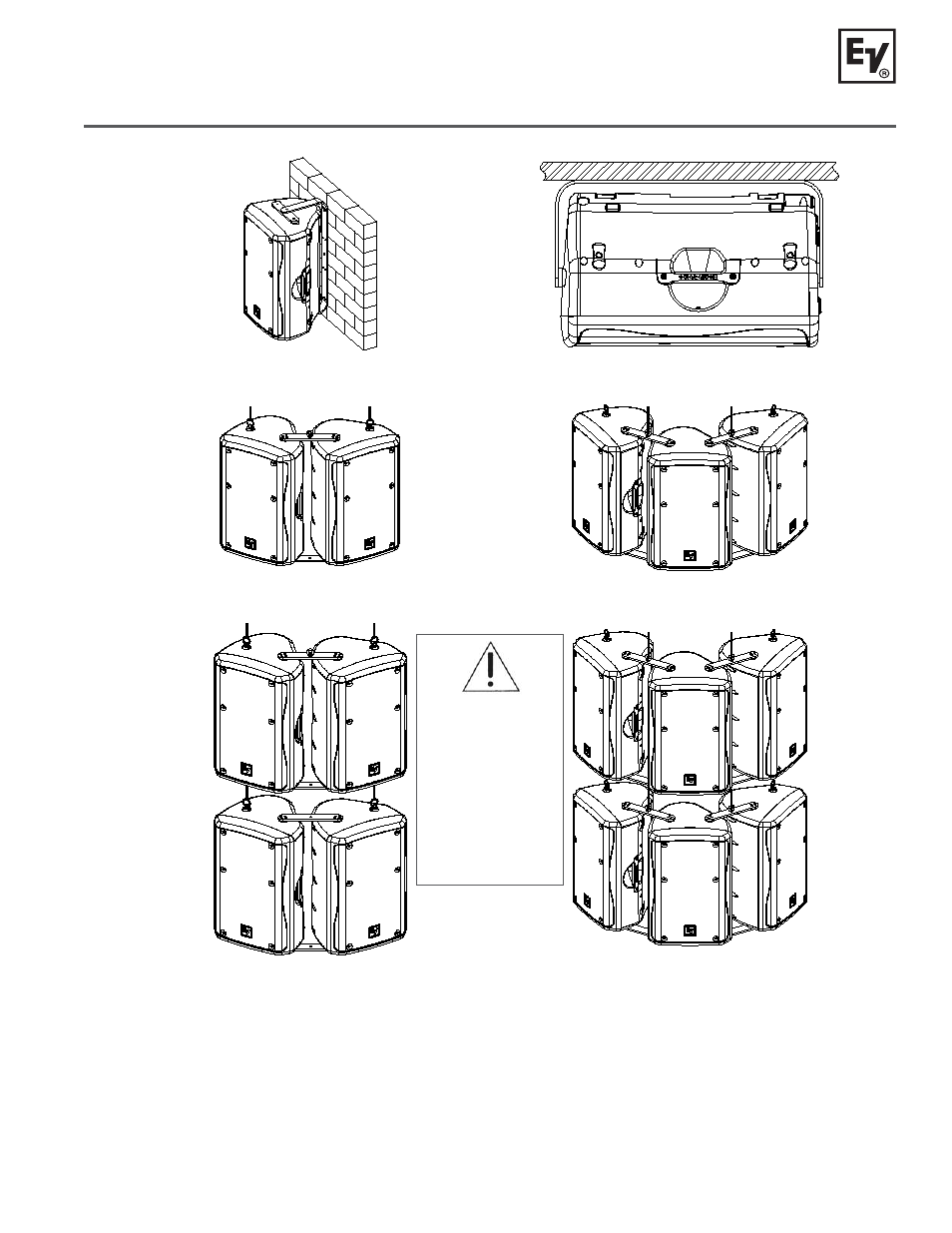

Figure 11:
Arraying and Suspending the Zx5
Kit Used - MB5 Wall/Ceiling Mounting Bracket
(Wall Configuration)
Kit Used - MB5 Wall/Ceiling Mounting Bracket
(Ceiling Configuration)
Kits Used - CB5 Array Bracket Kit (x1)*
SSK-1 Single-Stud Rigging Kit (x1)
Kit Used - CB5 Array Bracket Kit (x2)*
Kits Used - CB5 Array Bracket Kit (x2)*
SSK-1 Single-Stud Rigging Kit (x2)
EBK-3 Forged M8 Eyebolt Kit (x1)
Kits Used - CB5 Array Bracket Kit (x4)*
EBK-3 Forged M8 Eyebolt Kit (x1)
*Note - CB5 Array Kits can be used for 60° or 90° Splay Angles
10
NOTE: Do not
exceed working
load limit for
individual rigging
points when
arraying the Zx5.
(See Figure 2,
Page 5)
Suspending Zx5 Speaker Systems (cont’)
