ELECTRO-VOICE ® Zx5 Owner’s Manual 4
Description
The Electro-Voice ® Zx5 is a unique, lightweight package of pro audio performance, versatility and
aesthetics. You won’t find a speaker system available on the market that offers the unbelievable
sound, incredible flexibility and tremendous output capability of the Zx5 anywhere near it’s size
and weight.
System Features - Zx5
· Full-face grille for a clean, professional look.
·
DVX3150 15” woofer with 500 watts continuous power handling.
·
ND2 2” voice coil, 1” exit neodymium compression driver.
· Two models: 60° x 60° or 90° x 50° coverage patterns.
· Adjustable monitor angle built into enclosure.
· Integral rigging points and inserts for multiple flying options.
·
Full line of accessories for any installation.
·
Passive and biamp selectable.
System Coverage - Zx5
Coverage Patterns and Applications
Zx5-60 60° x 60° coverage for long-throw and cluster applications
Zx5-90 90° x 50° for wider coverage or shorter distances

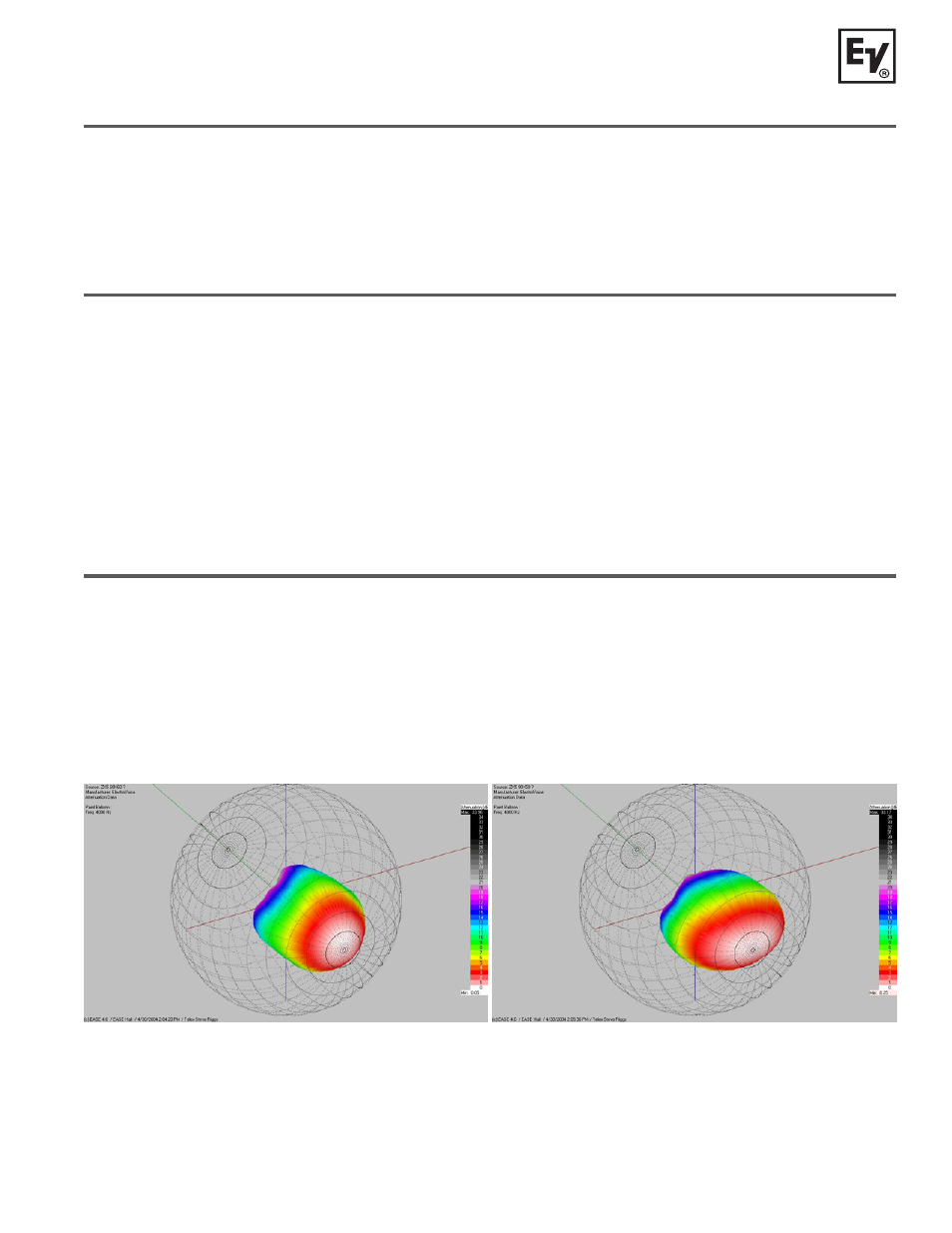

Figure 1a:
3D EASE Directivity Balloon,
Zx5-60, 60° x 60° Coverage
Figure 1b:
3D EASE Directivity Balloon,
Zx5-90, 90° x 50° Coverage
