ELECTRO-VOICE ® Zx5 Owner’s Manual
Suspending Zx5 Speaker Systems (cont’)
Suspending the Zx5 using optional Electro-Voice Single-Stud Rigging Kits
The Zx5 is shipped with three single-stud anchor plates for rigging with single-stud rigging. There
are two more locations on the bottom to mount single-stud anchor plates for flying the Zx5 upside-
down or horizontally. All of these locations can
facilitate M8 Eyebolts if desired as well.

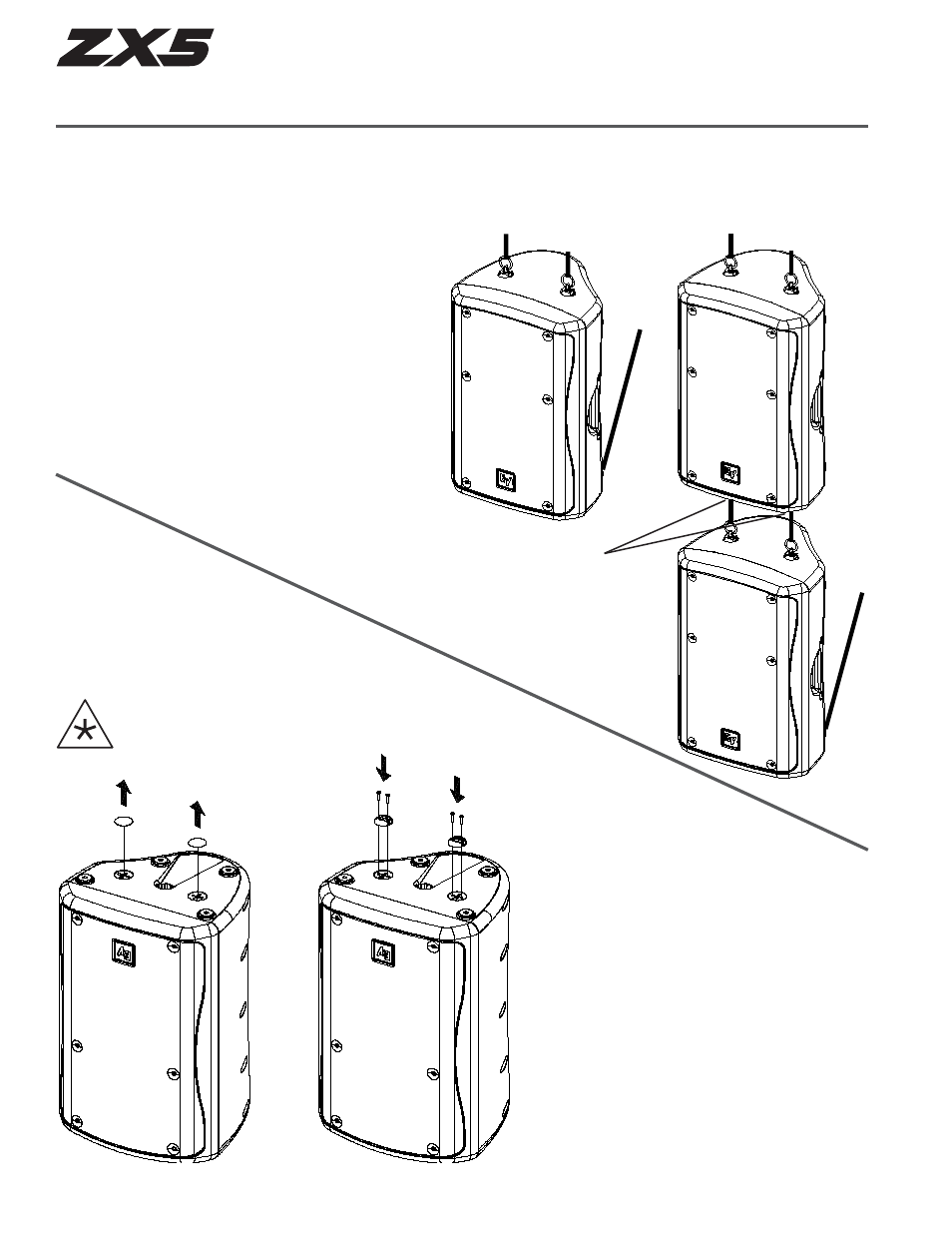

Figure 4:
Suspending the Zx5 Using Included Single-Stud
Anchor Plates
Kit Used (Left View) -
SSK-1 Single-Stud Rigging Kit (x1)
Kits Used (Right View) -
SSK-1 Single-Stud Rigging Kit (x2)
EBK-3 Forged M8 Eyebolt Kit (x1)*
Figure 5:
Suspending the Zx5 Upside-Down Using
Included Single-Stud Anchor Plates and Single-
Stud Rigging Kit
Kits Used -
RK-Z Single-Stud Anchor Plate Kit (x1)
SSK-1 Single-Stud Rigging Kit (x1)
Step 1: Remove Decals
Step 2: Attach Single-Stud Anchor Plates
Removed from the Top of the Enclosure or
optional RK-Z Kit (shown) or Eyebolts (not
shown)
7
*EBK-3 on Bottom of Top
Enclosure
(not shown, see Figure 3b)
