ELECTRO-VOICE ® Zx5 Owner’s Manual 11
CAUTION: When flipped to 55° the feet protrude from the enclosure. Care should be
taken when moving the enclosure, since damage to the feet or enclosure might occur if
the system is dropped or slid across a rough surface. It is recommended that the feet
be returned to the 45° position for transport.
Zx5 as a Monitor
By design the Zx5 is a perfect solution for stage monitors. As different stage sizes require
different monitor angles, the Zx5 offers two angles without any additional accessories.
Figure 13a:
Zx5 as Monitor in 45° Position
Figure 13b:
Zx5 as Monitor in 55° Position
Zx5 Stage Monitor Positions

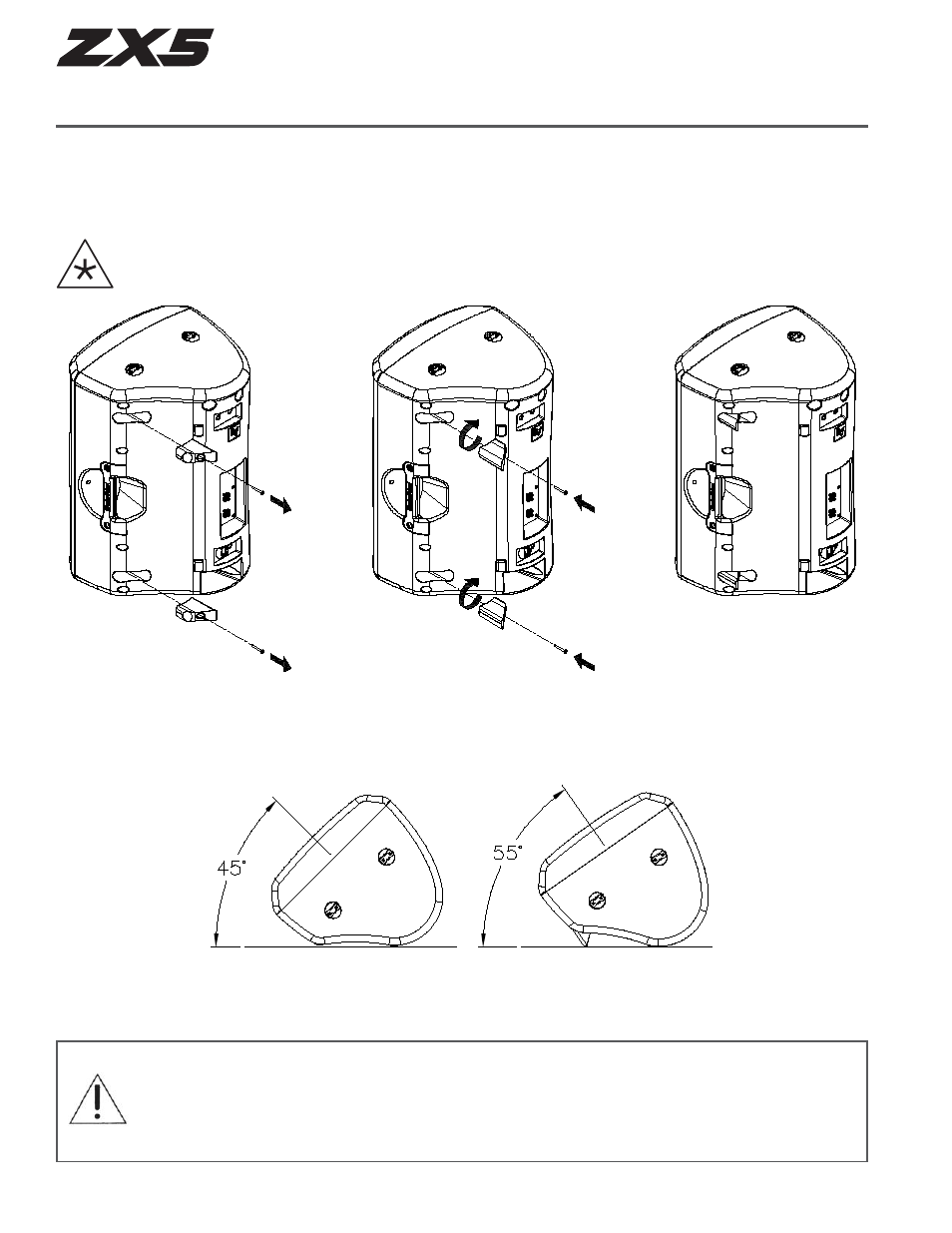

Figure 12:
Switching the Monitor Feet from the 45° to 55° Positions
Step 1: Remove Monitor Foot
Screws
Step 2: Rotate Monitor Feet 180° Step 3: Re-attach Monitor Feet
and Screws
