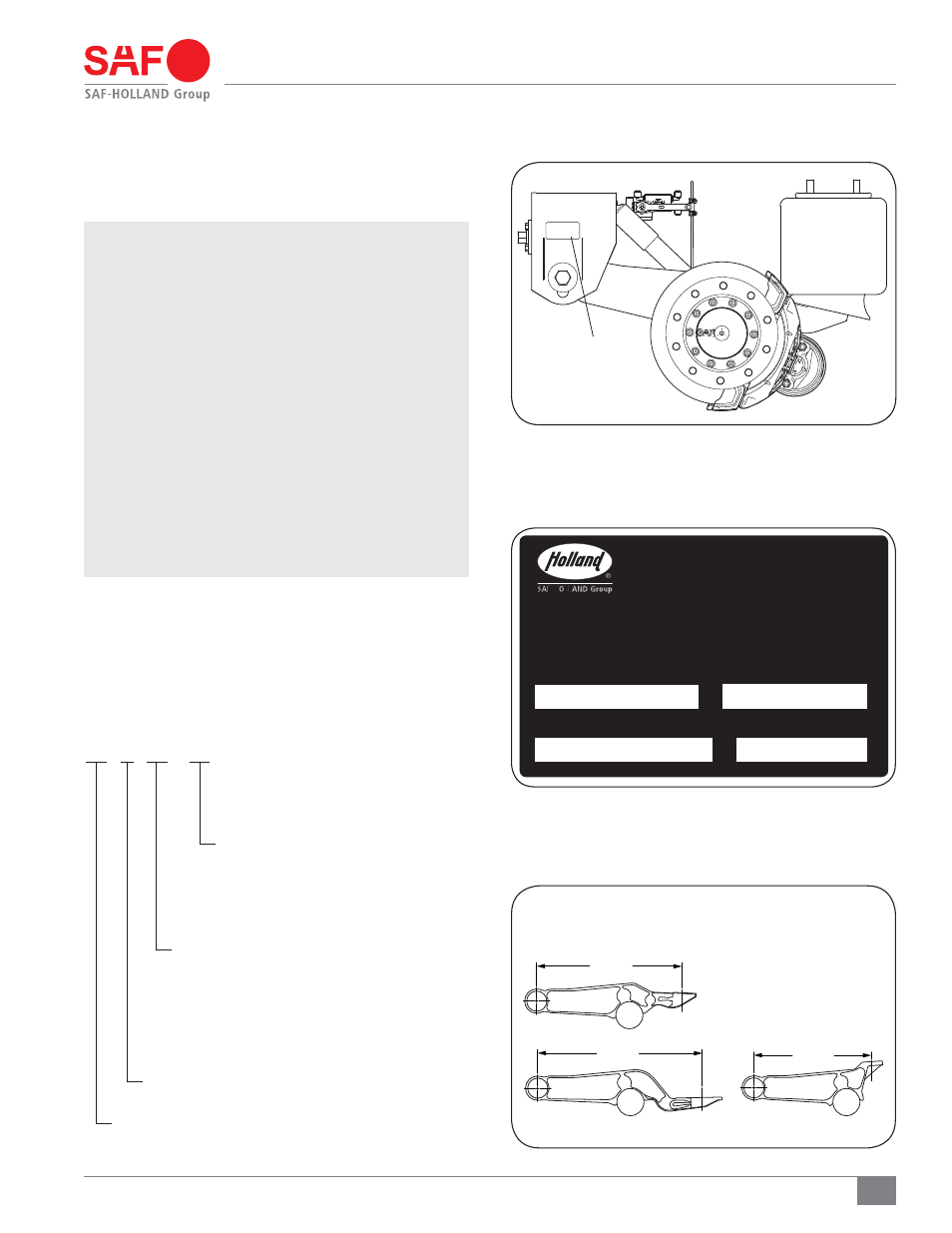

Model Identification & Nomenclature
5. CBX Model Identification
The CBX suspension serial tag is located on the frame bracket
(Figure 7).
NOTE: Refer to the serial number tag attached to the slider
rear crossmember for information
(Figure 7).
NOTE: This manual applies to the suspension models
listed on the front cover. However, we urge you to
determine your specific model number, write that
information below and refer to it when obtaining
information or replacement parts
(Figure 8).
NOTE: If the suspension serial tag is not legible or is not
available, you can identify your suspension model
by the appearance of the equalizing beam. The
CBX model will have a full cast beam mounted to
a 5.75" round axle
(Figure 9).
NOTE: The CBX models come in three (3) different beam
lengths. Equalizing beam lengths are measured
from the centerline of the pivot to the centerline
of the air spring mounting plate
(Figure 9).
6. CBX Model Nomenclature
The sample tag shown will help you interpret the information
on the SAF-HOLLAND, Inc. serial number tag. The model number
is on the first line along with the suspension capacity. The
second line contains the part number and the serial number
(Figure 8).
CB X 23 - 14
Cast Beam Suspension
Axle Capacity
Suspension Series
20 – 20,000
23 – 23,000
25 – 25,000
25/30 – 25,000/30,000*
*30,000 at creep speed
5.75" Diameter Premium Axle
Ride Height
14" (356 mm)
15" (381 mm)
16" (406 mm)
17" (432 mm)
5"(-0$"5&%0/
5)&'3"."$,&5
Figure 7
Figure 8
CONSULT SPECIFICATION FOR CAPACITY AND RECOMMENDED APPLICATION.
MODEL NO.
PART NO.
CAPACITY (LBS)
SERIAL NO.
SAF-HOLLAND, INC.
Figure 9
$#9#&".-&/(5)015*0/4
26.50"
33.80"
31.70"
