Torque Specifications
COMPONENT TORQUE VALUE
FASTENER
SIZE
Shock Absorber 140-175 ft.-lbs. 3/4"
Pivot Connection 450-500 ft.-lbs. 1-1/8"
Air Spring 30-40 ft.-lbs. 1/2"
Air Spring 40-45 ft.-lbs. 3/4"
SwingAlign™ Mounting
Hardware Only - NOT Pivot Bolt
50-60 ft.-lbs. 1/2"
HCV Lower Linkage 30-40 In.-lbs. 1/4"
17. Torque Specifications
NOTE: Torque specifications listed above are with
clean lubricated / coated threads. All new
SAF-HOLLAND fasteners come pre-coated
from the factory.
IMPORTANT: The use of special lubricants with friction
modifiers, such as Anti-Seize or Never-Seize,
without written approval from SAF-HOLLAND
Engineering, will void warranty and could
lead to over torquing of fasteners or other
component issues.
General Information
1. The torque specifications listed throughout the manual
are applied to the nut and not the bolt.
Failure to use the proper fasteners when
servicing the suspension could cause
component failure which, if not avoided,
could result in death or serious injury.
Failure to properly torque all fasteners
could result in component failure which,
if not avoided, could result in death or
serious injury.
(3"%&03
#0-5(3"%&."3,*/(4
-0$,/65(3"%&."3,*/(4
%054
-0$,/65
(3"%&# -0$,/65
(3"%&$
%054
(3"%& (3"%&

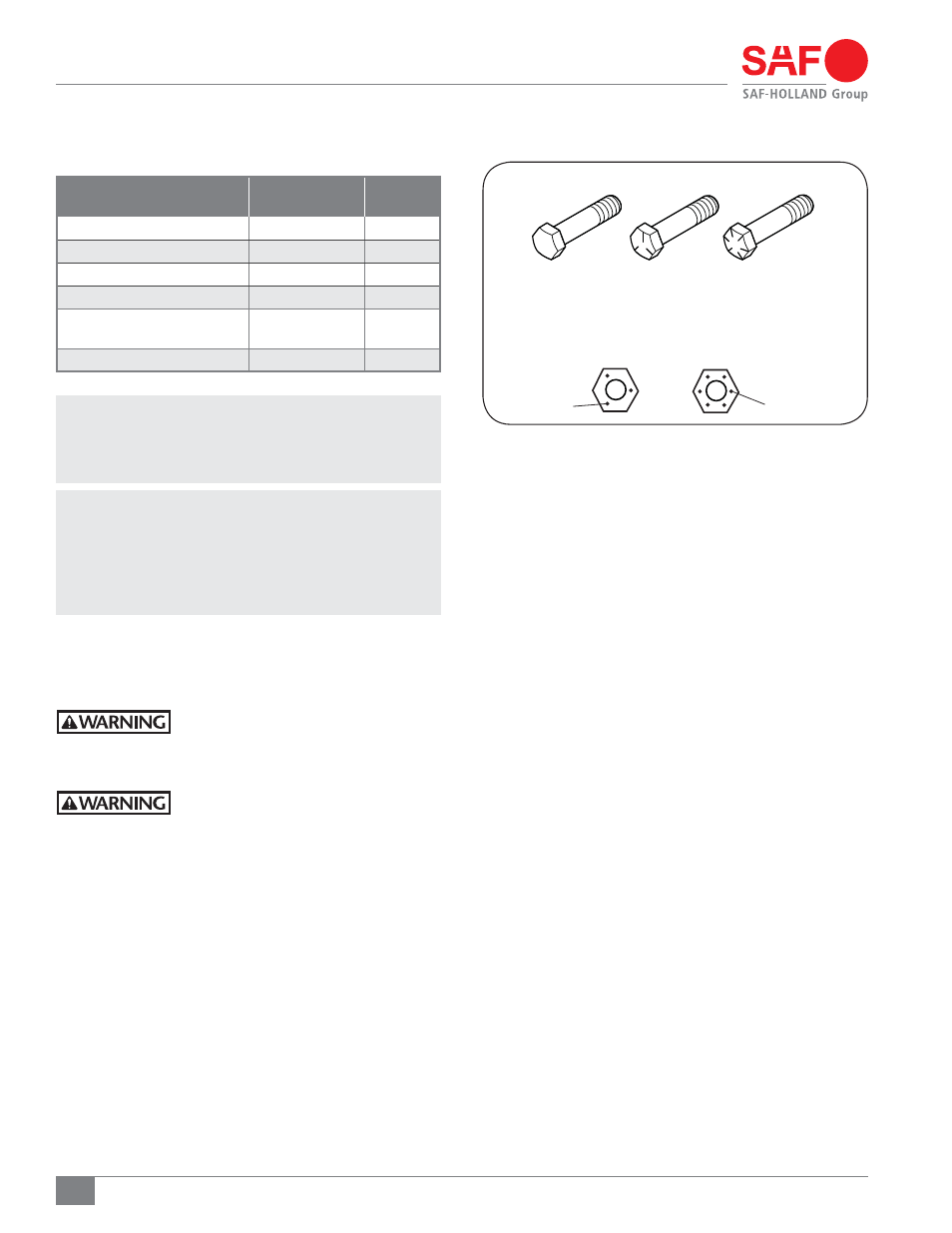

Figure 24
