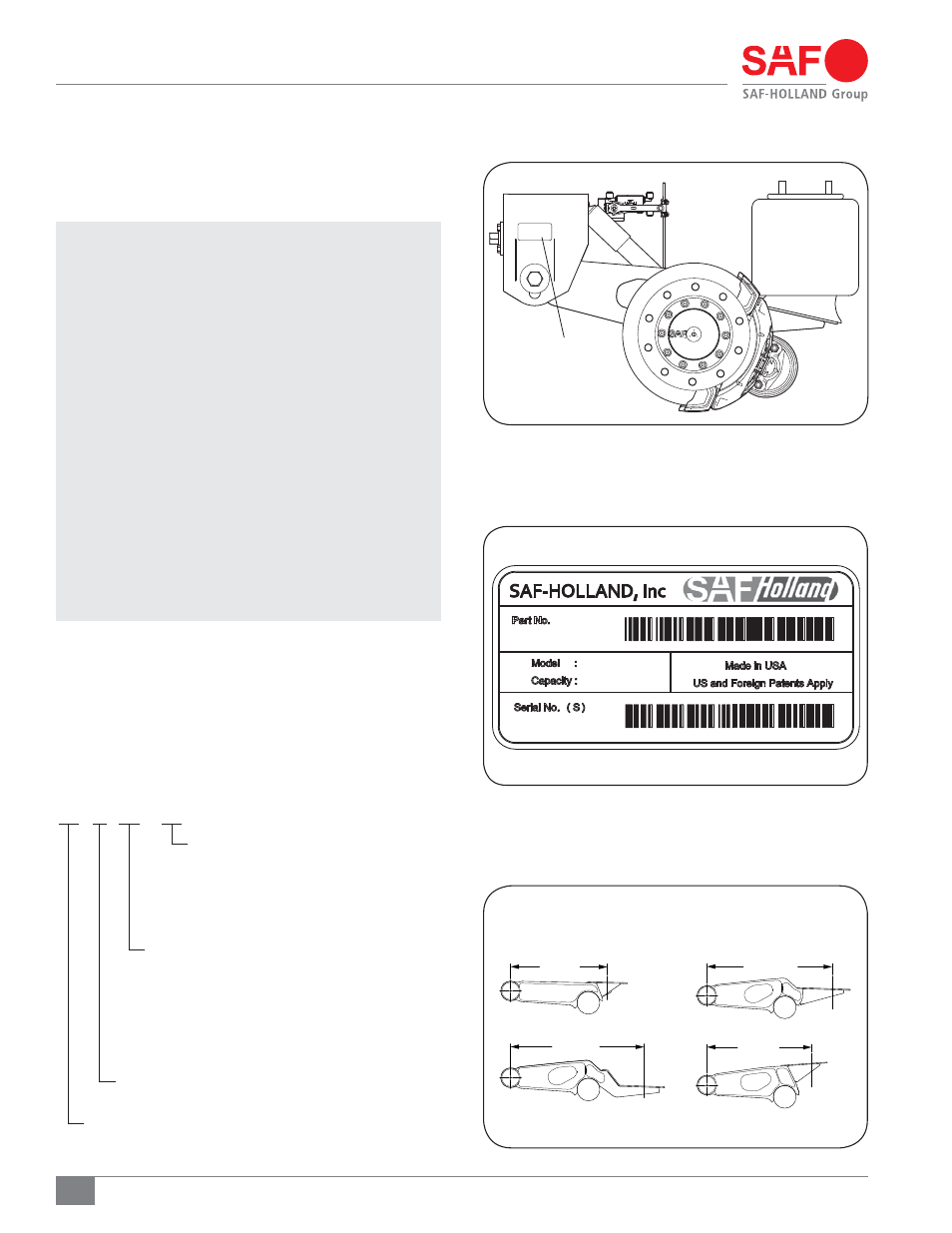

Model Identification & Nomenclature
Figure 5
Figure 4 3. CBX Fusion Model Identification
The CBX Fusion suspension serial tag is located on the frame
bracket
(Figure 4).
NOTE: Refer to the serial number tag attached to the slider
rear crossmember for information (Figure 4).
NOTE: This manual applies to the suspension models
listed on the front cover. However, we urge you to
determine your specific model number, write that
information below and refer to it when obtaining
information or replacement parts
(Figure 5).
NOTE: If the suspension serial tag is not legible or is
not available, you can identify your suspension
model by the appearance of the equalizing beam
(Figure 6). The CBX Fusion model will have a
cast beam with a lower air spring mounting
plate welded to it mounted on a 5.75" round
axle
(Figure 6).
NOTE: The CBX Fusion models come in four (4) different
beam lengths. Equalizing beam lengths are
measured from the centerline of the pivot to
the centerline of the air spring mounting plate
(Figure 6).
4. CBX Fusion Model Nomenclature
The sample tag shown will help you interpret the information
on the SAF-HOLLAND, Inc. serial number tag. The part number
is on the first line. The model number along with the suspension
capacity are on the second line. The third line contains the
serial number
(Figure 5).
CB X 23 - 14
Cast Beam Suspension
Axle Capacity
Suspension Series
20 – 20,000
23 – 23,000
25 – 25,000
25/30 – 25,000/30,000*
*30,000 at creep speed
5.75" Diameter Premium Axle
Ride Height
14" (356 mm)
15" (381 mm)
16" (406 mm)
17" (432 mm)
Figure 6
$#9'64*0/#&".-&/(5)015*0/4
24.50"
33.80" 26.50"
31.70"
