8
ENGLISH

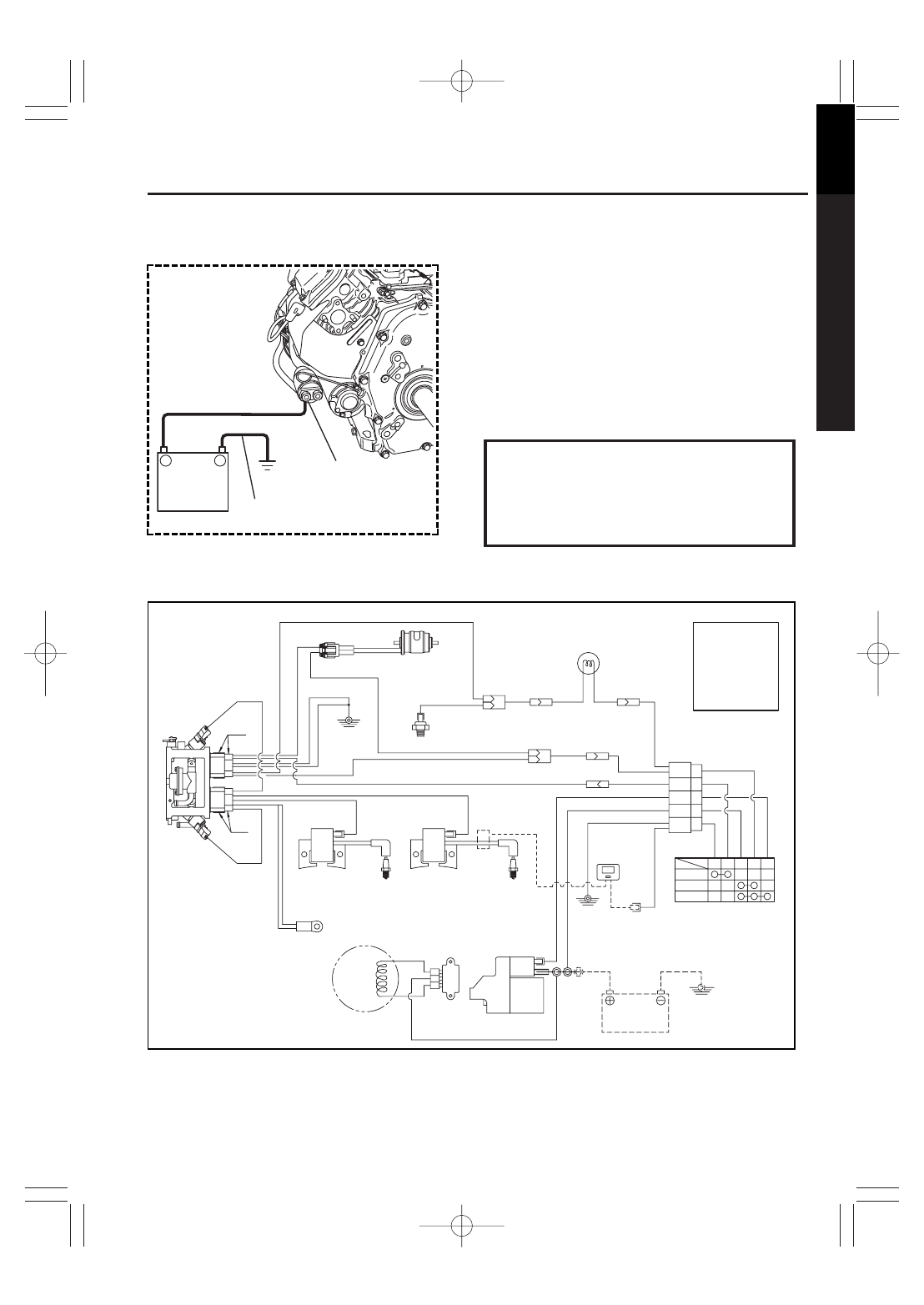

WIRING
Connect positive terminal of
electric starter and positive
terminal of the battery with battery
cable.
Ground negative terminal of the
battery to the body of engine or
machine with ground wire.
NOTE
Tighten bolts and nuts on terminals
securely so they will not be loosened
by vibration.
Battery
+ -
Electric starter
terminal
Earth wire
Cable
WIRING DIAGRAM
Optional hardware shown by dotted lines. Select wires of proper gauge and
connect battery as shown by the dotted line in the wiring diagram.
THROTTLE
BODY
TEMPERATURE
SENSOR (MBC)
OIL
PRESSURE
SWITCH
ELECTRIC
FUEL PUMP
IGNITION
COIL #1 IGNITION
COIL #2
SPARK
PLUG SPARK
PLUG
CHARGE
COIL ELECTRIC
STARTER
REGURATOR
OIL WARNING LAMP
BATTERY
12V
TACHO /
HOUR METER
(OPTION)
Grn
Blk : BLACK
W :
WHITE
R : RED
Y : YELLOW
Grn : GREEN
Gry : GRAY
KEY SWITCH
OFF
RUN
START
G M B L S
Blk
Blk
Blk Blk
Blk
Blk
(Covering: Blk)
Blk (Covering: Gry)
Blk Blk
Blk
Blk
Blk
R
R
R
R
R
Blk / W
R
Y
Y
Y
W
W
W
Grn, R
(Covering: Blk)
Grn, R
(Covering: Gry)
Gry
Gry
