MSO1000Z/DS1000Z Quick Guide 5
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to the digital channel input
terminal at the front panel of the oscilloscope in the correct direction.
2. Connect the other terminal of the logic probe to the signal under test.
MSO1000Z series is provided with the RPL1116 logic probe (standard) which
provides two connecting methods to connect to the signal under test to realize
convenient and flexible detection. For the details, please refer to the RPL1116
Logic Probe User’s Guide .

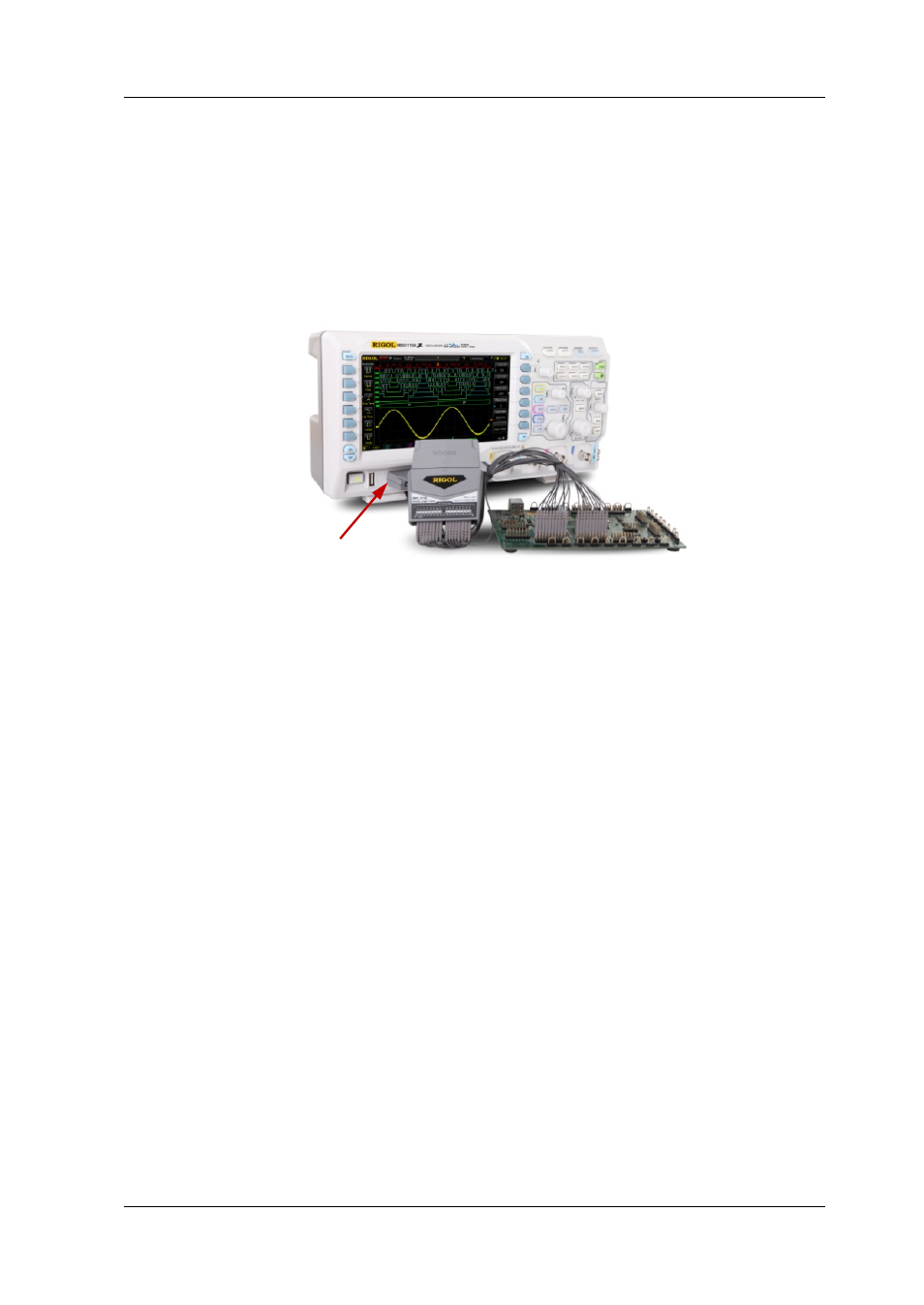

Figure 6 To Connect the Logic Probe
Note: The digital channel input terminal does not support hot plug. Please do not
insert or pull out the logic probe when the instrument is powered on.
Digital Channel Input Terminal
