Configuration area
The configuration area contains the main operating parameters of the UPS and displays its current status. The
parameters found in this area can be modified by taking action directly from the display panel.
SETTABLE PARAMETERS:
 Frequency: output voltage frequency
 Voltage: Output voltage
 Mode: UPS operating mode

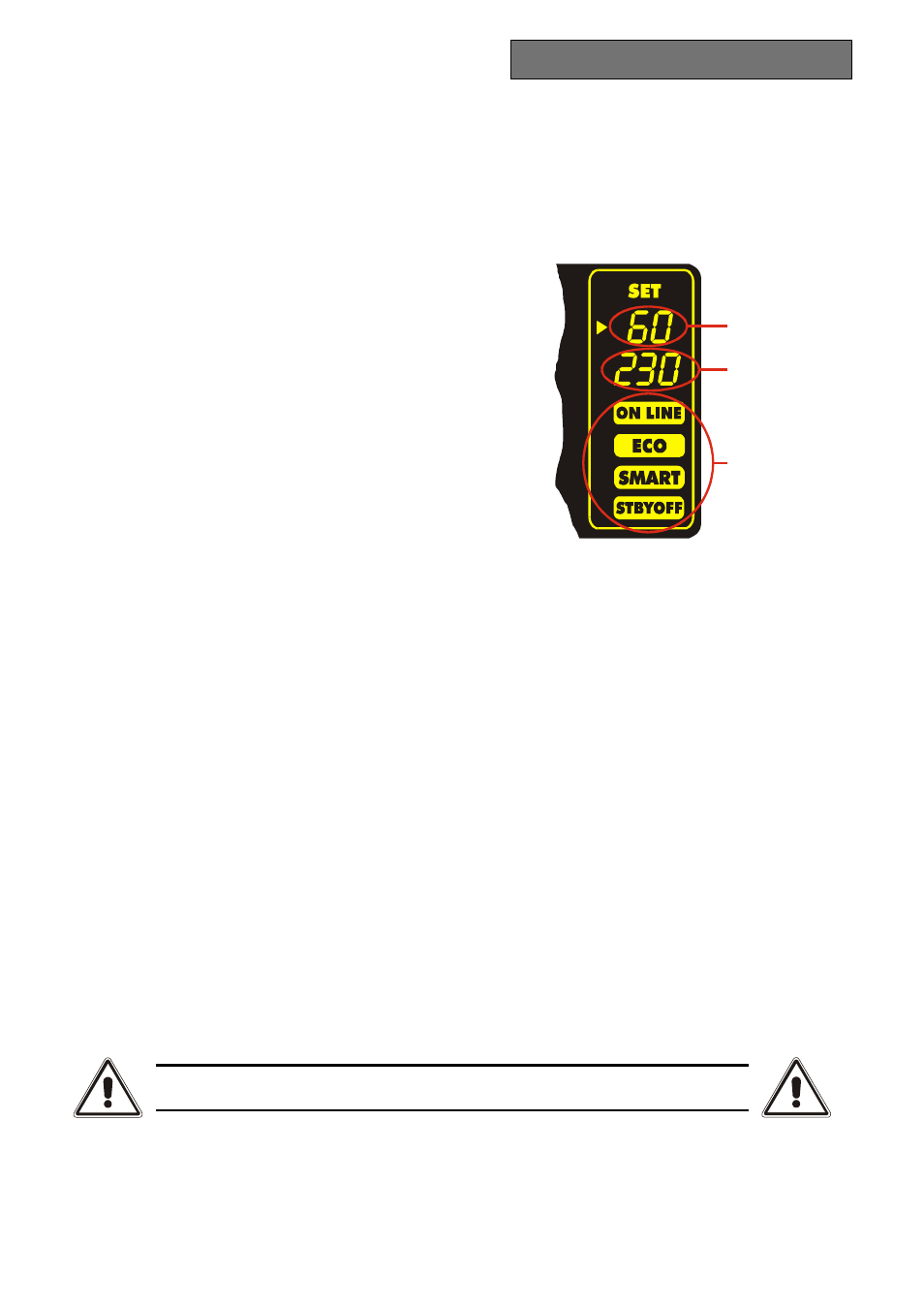

The picture to the side depicts the area of the display reserved
for settings (configuration area), with the three settable
parameters in view.
How to proceed:
 To enter the configuration area hold down the “SEL / SET” button for at least 2 sec.
 The word “SET” lights and an arrow ( ► ) appears to the left of Frequency.
 The arrow indicates the setting selected. To change the selection of the parameter to be modified,
press the “SEL / SET” button.
 To change the item selected, press the “ON” button.
 To exit from the configuration area, hold the “SEL / SET” button down for at least 2 sec.
POSSIBLE SETTINGS
Frequency: □ 50 Hz □ 60 Hz □ Off (frequency self-teach)
Voltage:
□ 220 V □ 230 V □ 240 V
Mode:
□ ON LINE □ ECO □ SMART □ STBYOFF
NOTE: For the change in configuration of output frequency to become effective, the UPS must be switched off
completely and switched on again (by the main switch).
THE PARAMETERS VOLTAGE AND OUTPUT FREQUENCY MUST BE
COMPATIBLE WITH THOSE OF THE LOAD POWERED BY THE UPS
Frequency
Voltage
Mode
