M EASUREMENT DISPLAY AREA
The front panel can be used to display important UPS operating information. When the UPS is switched-on, the display
shows the main voltage value.
To display a different measurement, press the “SEL” button repeatedly until the desired measurement appears.
In the event of a fault/alarm (FAULT) or a lock (LOCK), the display will automatically show the type and code of the
corresponding alarm.
Some examples are shown below:
17

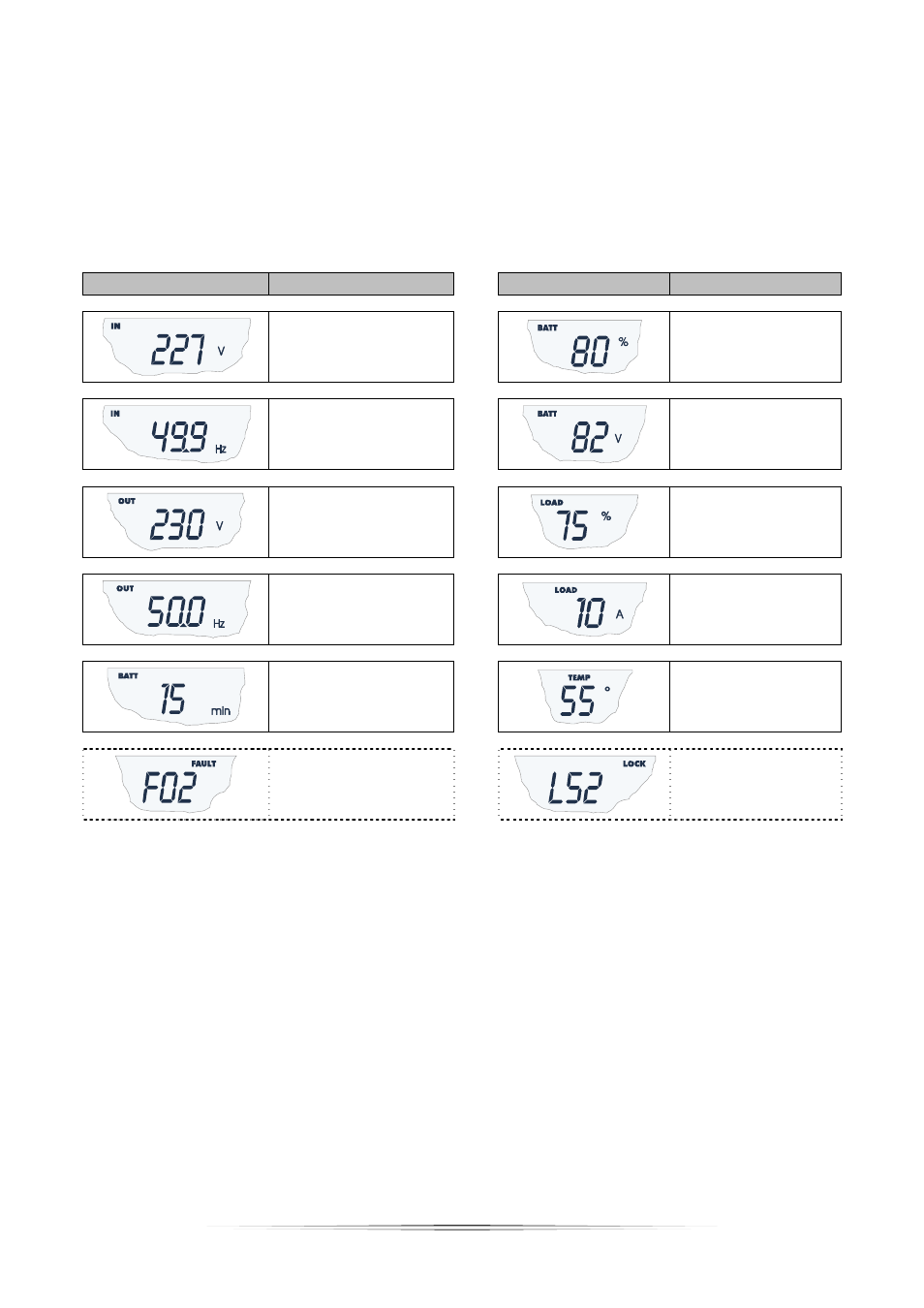

GRAPHIC EXAMPLE
(1)
DESCRIPTION GRAPHIC EXAMPLE
(1)
DESCRIPTION
Mains voltage
Battery charge
percentage
Mains frequency Total battery voltage
UPS output voltage Applied load percentage
Output voltage frequency
Current absorbed by the
load
Residual battery autonomy
Temperature of the
electronics cooling
system inside the UPS
Fault / Alarm (2) : the
corresponding code is
displayed
Lock (2) : the
corresponding code is
displayed
(1) The values shown in the images in the table are purely as an indication.
(2)
The FAULT / LOCK codes can only be displayed if they are active (presence of a fault/alarm or a lock).
