14
R ACK VERSION

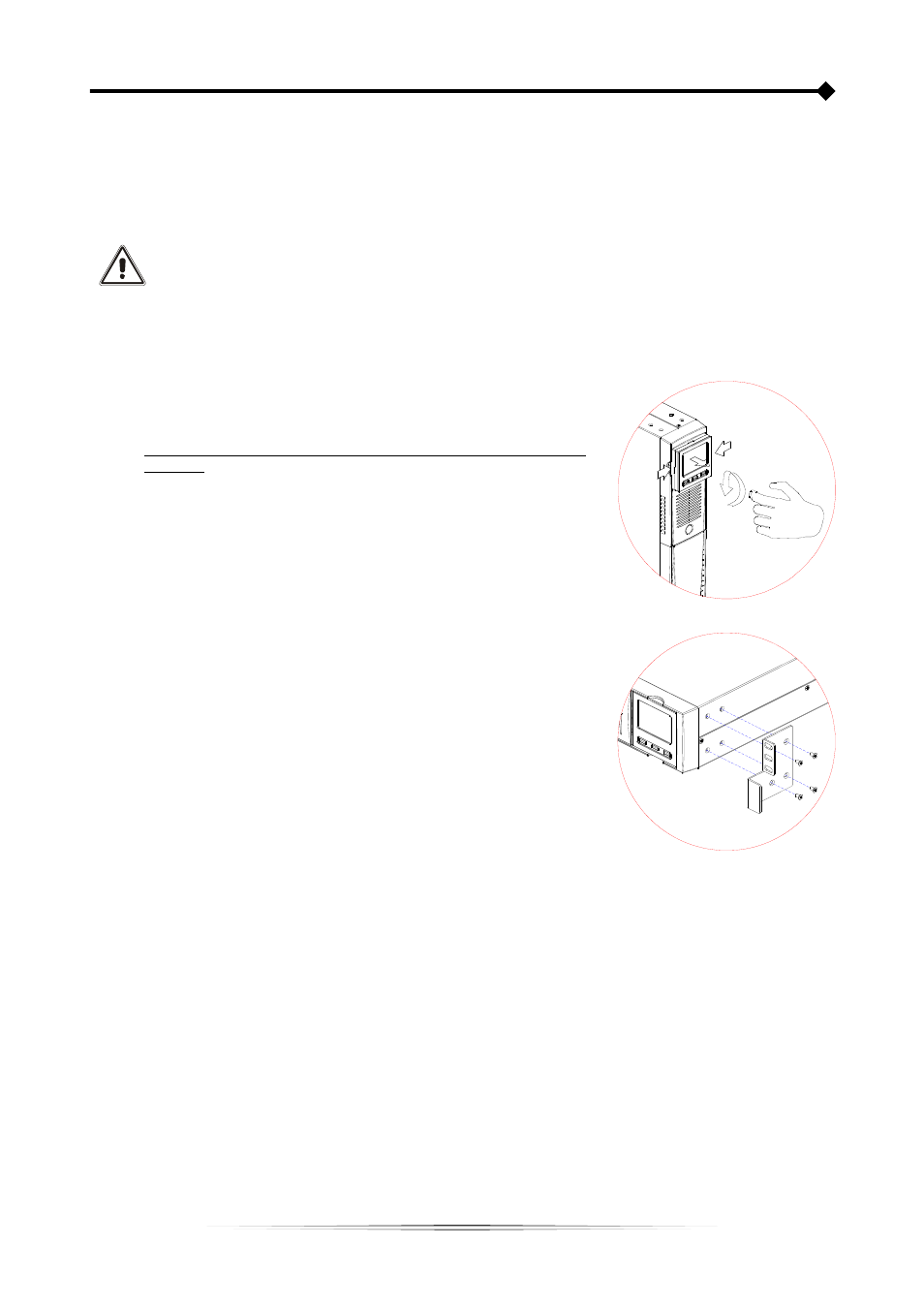

The sequence of operations to be followed in order to transform the UPS or battery box into rack version are described
elow. b
BEFORE CARRING OUT THE FOLLOWING SEQUENCE OF OPERATIONS, ENSURE THAT:
•
THE UPS IS COMPLETELY SWITCHED OFF AND NOT CONNECTED TO THE MAINS POWER
SUPPLY OR TO ANY LOAD.
•
THE BATTERY BOX IS DISCONNECTED FROM THE UPS, FROM ANY OTHER BATTERY BOXES
AND WITH THE BATTERY ISOLATOR OPEN
1 - Pick up the panel from the sides and gently pull it away from its position
just enough to be able to rotate it: ATTENTION: The panel must be
removed carefully
DO NOT ATTEMPT IN ANY WAY TO REMOVE THE PANEL FROM
THE UPS
2 - Rotate the panel 90° counter clockwise and reinsert it carefully into the
special housing.
3 - At this point, with the UPS or battery box in the horizontal position,
secure the handles using the screws provided, as shown in the figure.
NOTE:
Given the heavy weight, the use of support brackets is mandatory during rack installation (guide with L-shaped
support). For the same reason, it is recommended that the UPS and battery box be installed in the lower part
of the rack cabinet.
