Page 17
17
Pro-Flo EFI Installation Instructions
©2005 Edelbrock Corporation
Rev. 2/05
Brochure #63-0273
Catalog #3530 & #3531
Ignition Amplifier
Tach Leed
Fuses - Fuel
Pump Relay
O2 Sensor
Fuel Pump
To ECM
(Computer)
To Calibration
Module
12-volt
Battery Power
MAT Sensor
To Coil
IAC (Idle Air
Control)
Switched 12-volt
Power
Ground
Distributor
MAP
Sensor
(Manifold Air
Pressure)
TPS (Throttle
Position Sensor)
Engine Coolant
Passenger Side
Injectors
2,4,6,8
Driver Side
Injectors
1,3,5,7

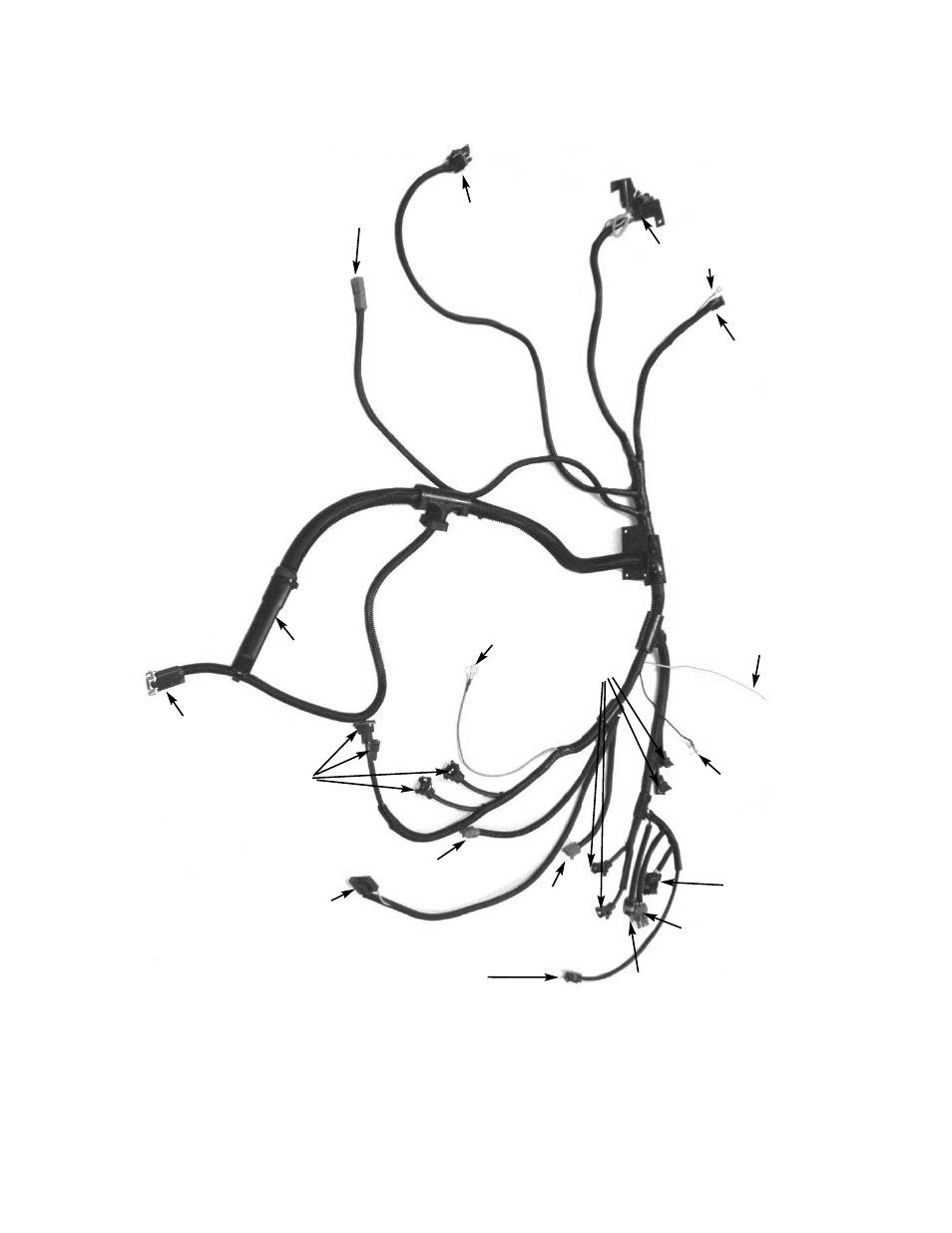

MOP
AR AND AMC WIRING HARNESS
