CONNECTING THE PROJECTOR

CONNECTING THE COMPUTER

CONNECT NC

TO THE COMPU ER. PUT 1

JACKS (BNC TYPE x 5

)

Personal computers can be connected to the computer input (Red, Green, Blue, Horiz. Sync. and Vert. Sync.) on the

projector.

• Connect the computer to these jacks using the BNC cables (not provided).

CONNECTING TO THE COMPUTER INPUT 2 TERMINAL {HDB1 5-PIN (VGA)}

Personal computers can be connected to the HDB1 5-pin (VGA) terminal on the projector.
• Connect the computer to these terminals using the VGA cable or VGA

cable with VGA/MAC adapter (provided).

WARNING: For projectors, the VGA cable provided is designed to reduce RFI (Radio Frequency Interference)

emissions. For regulatory compliance reasons, this cable must be used and must not be replaced by any

other cable.

CONNECTING TO THE COMPUTER AUDIO INPUT JACKS (1 and 2)

• Connect audio outputs from your computer to these jacks using the RCA cable (not provided).
• If the audio input of the audio equipment is stereo, be sure to connect the

right

and

left

channels to the respective right

and left

jacks.

• If the audio input of the audio equipment is monaural, connect it

to the left jack.

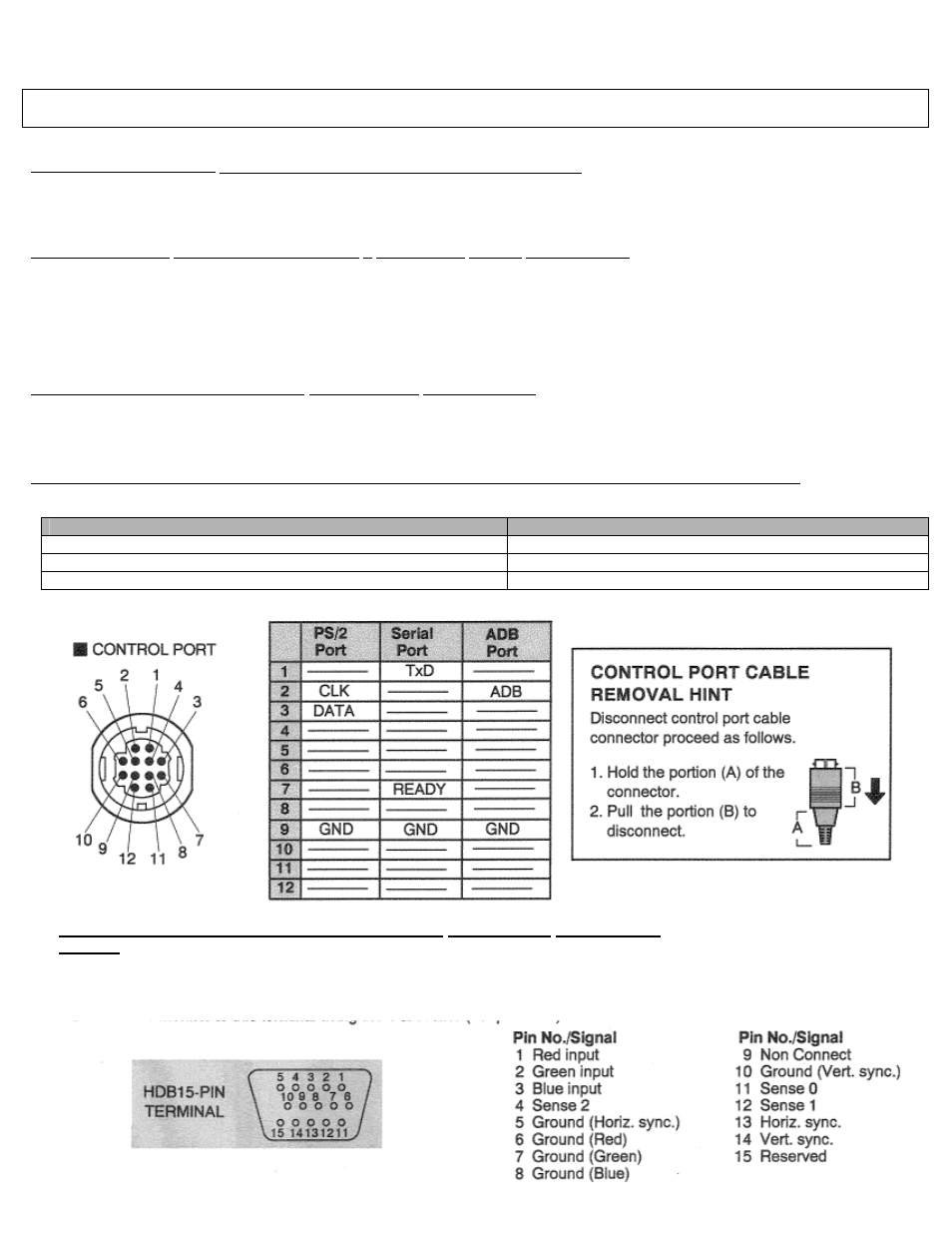

CONNECTING TO THE MULTI-POLE 12-PIN (CONTROL PORT) CONNECTORS (1

and 2

)

When the computer is operated by the remote control unit, connect three different type of cables (provided) between control

port and computer mouse port or serial port.

COMPUTER TYPE

CABLE

IBM Compatible computer

with PS/2

mouse

port

Mouse Cable for PS/2 port.

IBM Compatible computer

with

serial control port.

Mouse

Cable

for

Serial

port.

Apple Macintosh computer with ADB mouse port

Mouse Cable for ADB port.

CONNECTING TO THE MONITOR OUTPUT TERMINAL {HDB15-PIN

(VGA)}

This terminal contains the information that is viewed on the screen.

An external monitor can be connected to the HDB1 5-pin (VGA) terminal on the projector.

• Connect the monitor

to this terminal using the VGA cable (not provided).
