CONNECTING TO THE COMPUTER AUDIO MONITOR OUTPUT (VARIABLE) JACKS

These jacks will contain the audio information of the selected program source being viewed on the screen (Computer

1 or Computer 2). If you have selected program source Computer 2 the audio signal connected to the Computer 2

audio input jack will be available at the computer audio monitor output jacks. If you select program source “Video 1”

or “Video 2, the audio signal connected to the Computer 1 audio input jack will be available at the computer audio

monitor output jacks.

Connect audio input from audio equipment to these jacks using the RCA cables.

• If the audio input of the audio equipment is stereo, be sure to connect the right and left channels to the respective

right and left jacks.

• If the audio input of the audio equipment is monaural, connect it to the left jack.

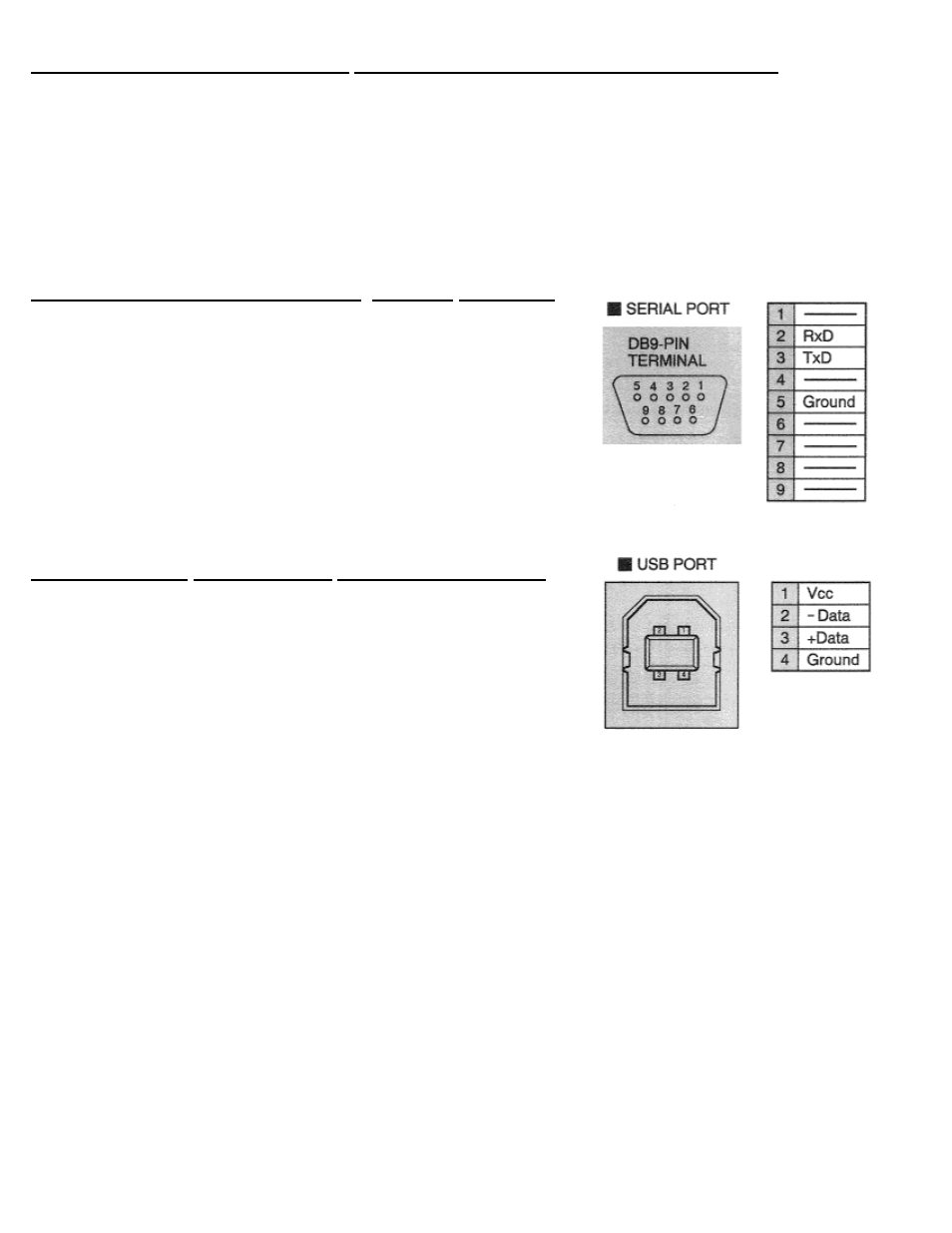

CONNECTING TO THE SERIAL PORT (DB9-PIN) TERMINAL


• if you control the projector by computer, you must connect a cable (not

provided) from your computer to this terminal.

CONNECTING TO THE USB PORT CONNECTORS (1 and 2)

This Projector is designed for connecting with USB Port of the computer

or peripheral equipment that is to be standard.
