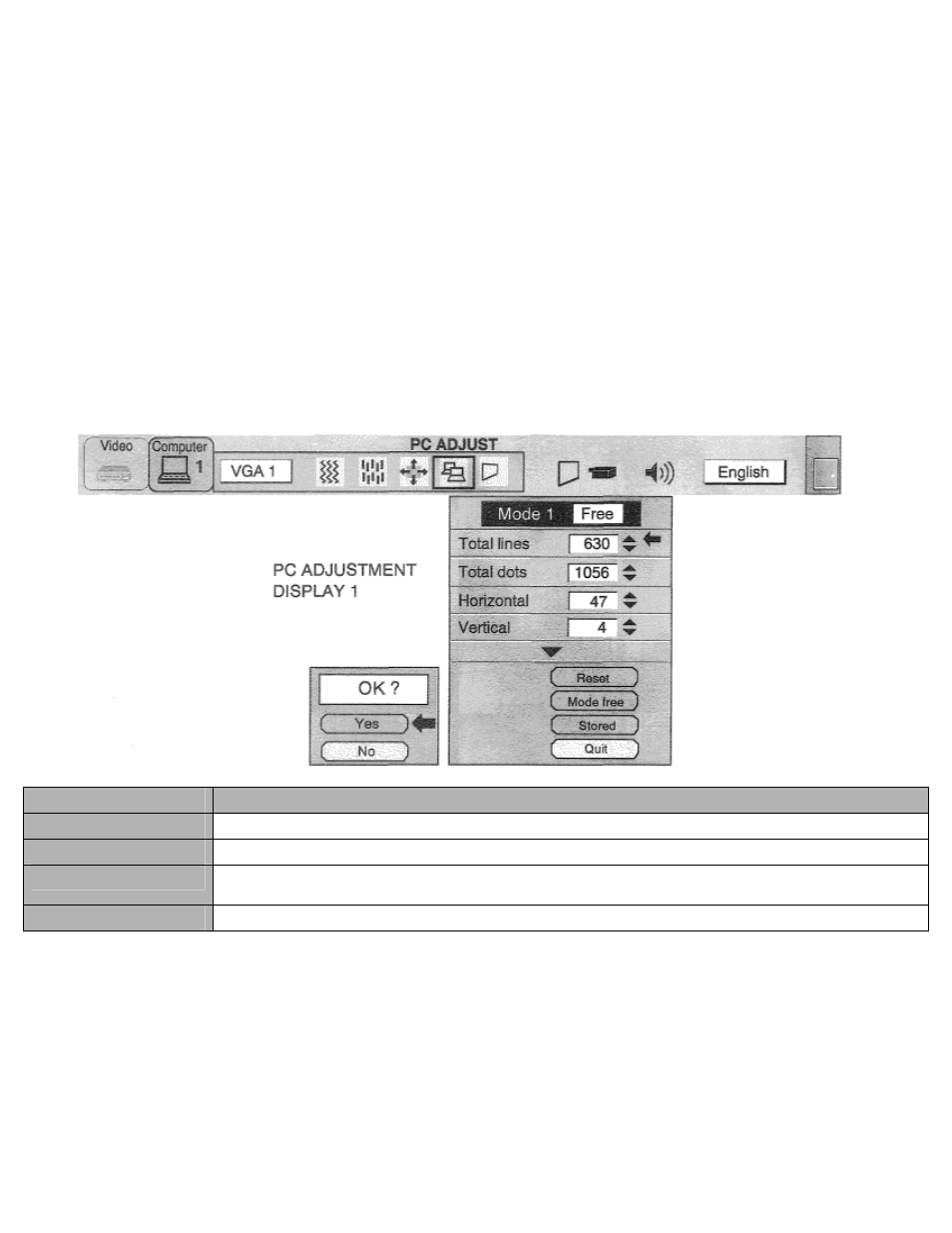

6. Another dialog box “PC ADJUSTMENT DISPLAY 1” will appear and the parameter data for the Mode you have selected is

shown in this dialog box.

7. The parameters will be filled with the data determined by the projector according to the present signal input.

8. The function of the parameters and their values are summarized in the table as below.

9. Move the arrow to an adjusting item you want to adjust by pressing the POINT UP/DOWN BUTTON(s).

10. To increase the level, point the arrow to A and then press the SELECT (REAR CLICK) BUTTON.

To decrease the

level,

point the arrow to 7 and then press the SELECT (REAR CLICK) BUTTON.

11. If you want to store the settings to the memory, move the arrow to Stored and press the SELECT (REAR CLICK) BUTTON.

When you have stored the settings, you will see “OK

?“

as a confirmation. Move the arrow to Yes and then press the SELECT

(REAR CLICK) BUTTON.

12. To recall the parameter data before setting, move the arrow to Reset and then press the SELECT (REAR CLICK) BUTTON.

When you have reset the settings, you will see “OK

?“

as a confirmation. Move the arrow to Yes and then press the SELECT

(REAR CLICK) BUTTON

.

You can adjust the settings again if required.

13. To quit the MENU, move the arrow to Quit and then press the SELECT (REAR CLICK) BUTTON.

14. If you quit the MENU without storing the settings to the memory, the parameter data you

changed

will not be kept.

15. The stored settings are permanently kept even if the MAIN ON/OFF is switched off.

16. When the adjustment of “Clamp”, “Height” and “Width” are required, move the arrow by pressing the POINT UP/DOWN

BUTTON(s) to select (V). Press the SELECT (REAR CLICK) BUTTON.

ITEM

FUNCTION

TOTAL LINES

The number of the total vertical lines. Adjust the number to match your PC image.

TOTAL DOTS

The number of the total dots in one horizontal period. Adjust the number to match your PC image

HORIZONTAL

Adjustment of the horizontal picture position. When the image is not centered on the screen, adjust
this.

VERTICAL

Adjustment of the vertical picture position. When the image is not centered on the screen, adjust this.
