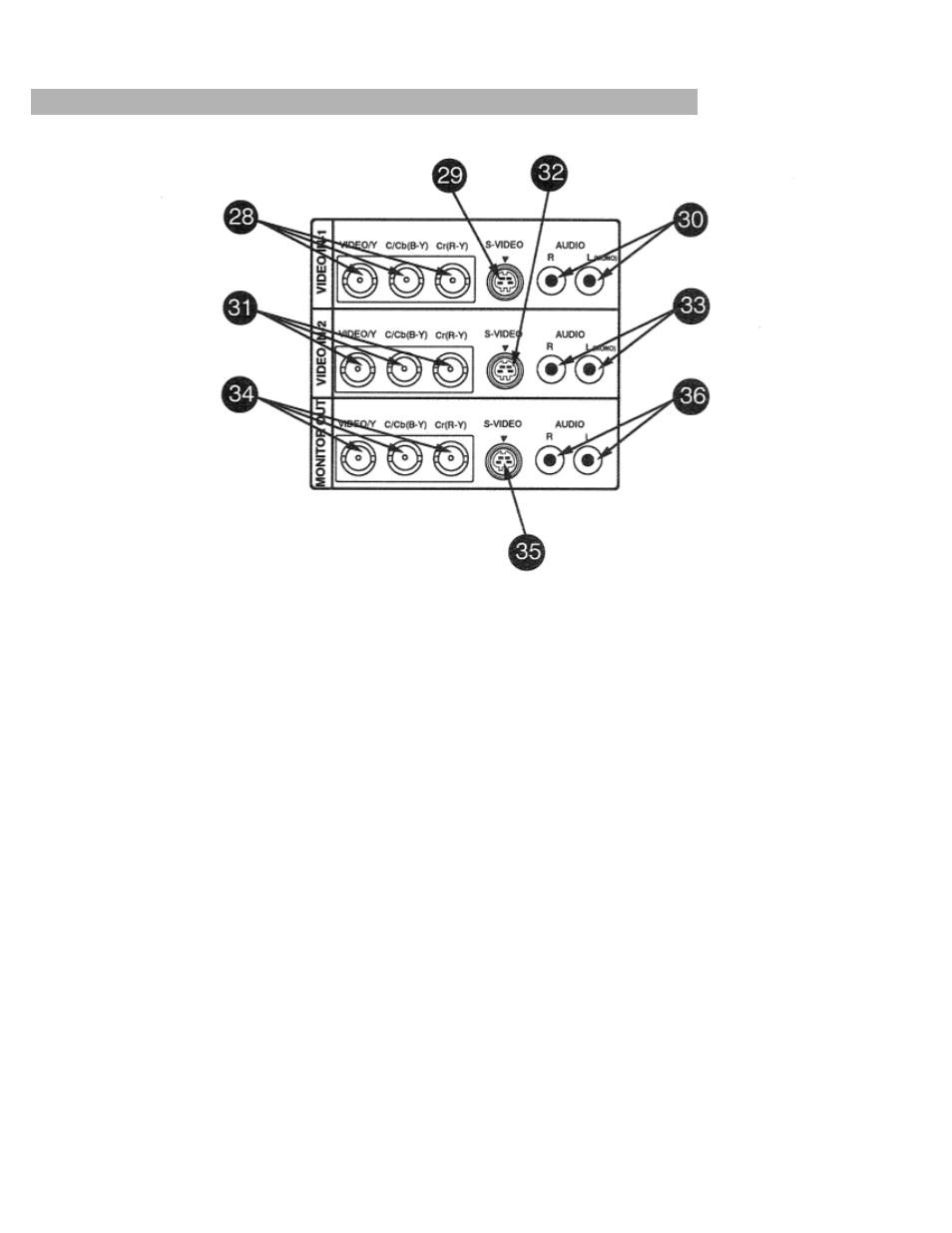

SIDE OF THE PROJECTOR (CONNECT THE VIDEO EQUIPMENT)

28

VIDEO INPUT JACKS-1 (BNC TYPE x 3)
Used to connect a video source to the projector.

33

AUDIO INPUT JACKS-2 (R and L)
Used to connect an audio source to the projector

29

S-VIDEO INPUT JACK-1
Used to connect a S-VHS video source to the
projector.

34

VIDEO MONITOR OUTPUT JACKS (BNC TYPE x 3)

Permits video connection to a monitor.

30

AUDIO INPUT JACKS-1 (R and L)

Used to connect an audio source to the projector.

35

VIDEO MONITOR (S-VIDEO) OUTPUT JACK
Permits S-VHS video connection to a monitor.

31

VIDEO INPUT JACKS-2 (BNC TYPE x 3)

Used to connect a video source to the projector.

36

AUDIO MONITOR OUTPUT JACKS (R and L) Permits
audio connection to a monitor.

32

S-VIDEO INPUT JACK-2

Used to connect a S-VHS video source to the

projector.
.
