To remove the camera, first unplug the wire connection on the back of the camera.
Then loosen the 2 locking screws on the camera base, push the camera base to the right
(toward heater direction, as shown in Figure 2), remove the camera from the mounting
base. Reinstall the camera and the cable while the base mounting is completed.

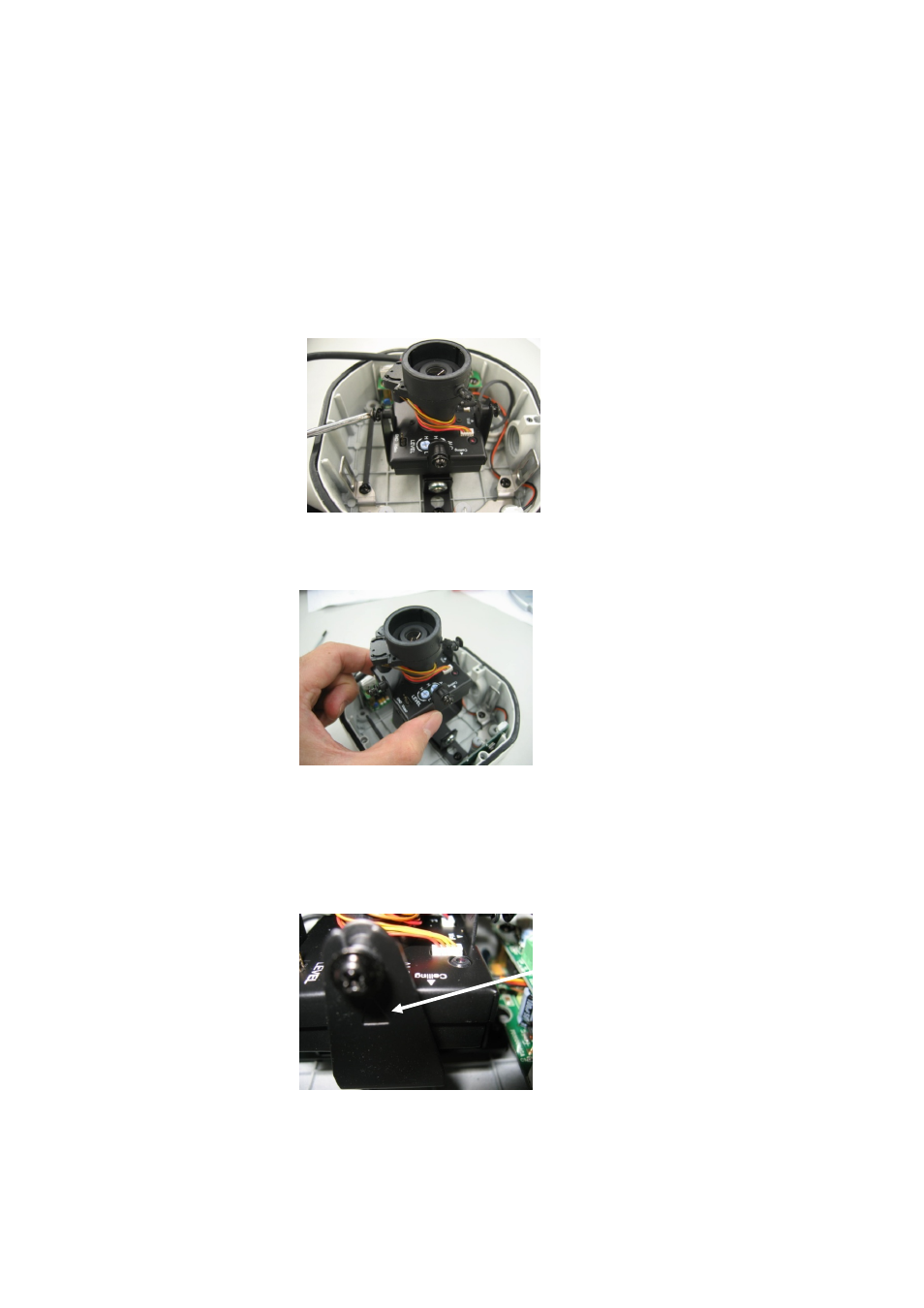

2.1 Instruction for rotating the camera mounting
a. Please unscrew fixing screws that hold the camera module.
b. Remove the camera
c. Aim “ Ceiling” Mark to “S” mark on camera lead frame. See figure
3-3.
“S” mark.
Figure 3-3
Figure 3-1
Figure 3-2
