Page 8

- 8 -
2. INSTALLATION
This section covers simple steps and detail installation. Please follow instruction for
preventing any unnecessary damage.
Simple Steps:
1. Open camera cover.
2. Rotate camera if install on ceiling
3. Drill holes on wall/ceiling. Mount cameras.
4. Connect power and video.
5. Optional connect to EN220 Test Monitor for field testing (monitor is not
included).
6. Adjust lens and camera position.
7. Adjust camera setting by using the OSD controller.
8. Put in DESICCANT PACK and close the camera cover for avoiding moisture in
the camera.
Detail Installation Steps:

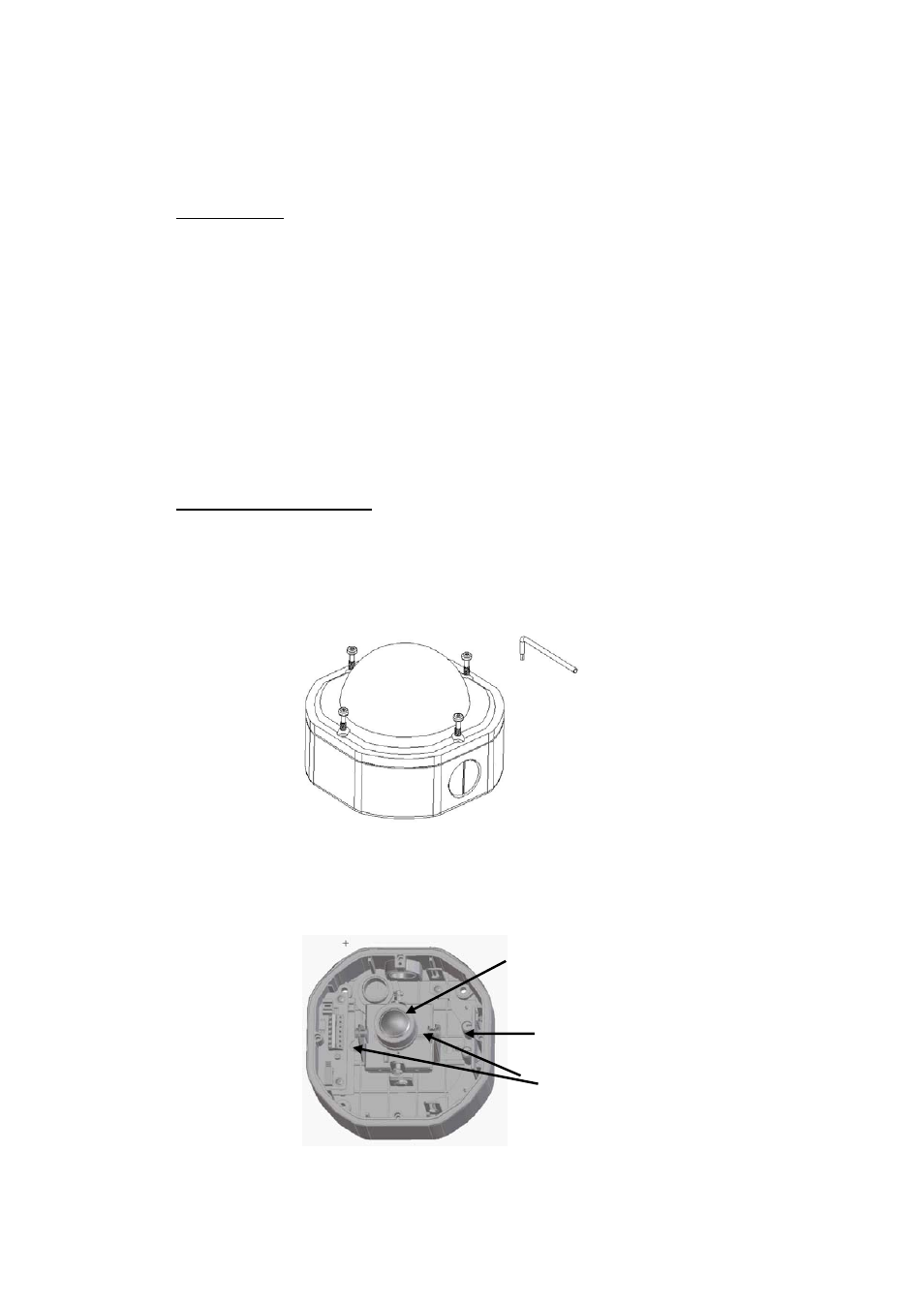

1. Loosen the 4 fix screws on the housing cover by using the attached wrench (Figure
1). Please pay attention not to damage the lens.
2. Remove the camera
Figure 1
Locking Screws
Vari-Focal Lens
Heater
Figure 2
