EverFocus EHD650 User Manual
Page 12
- 12 -

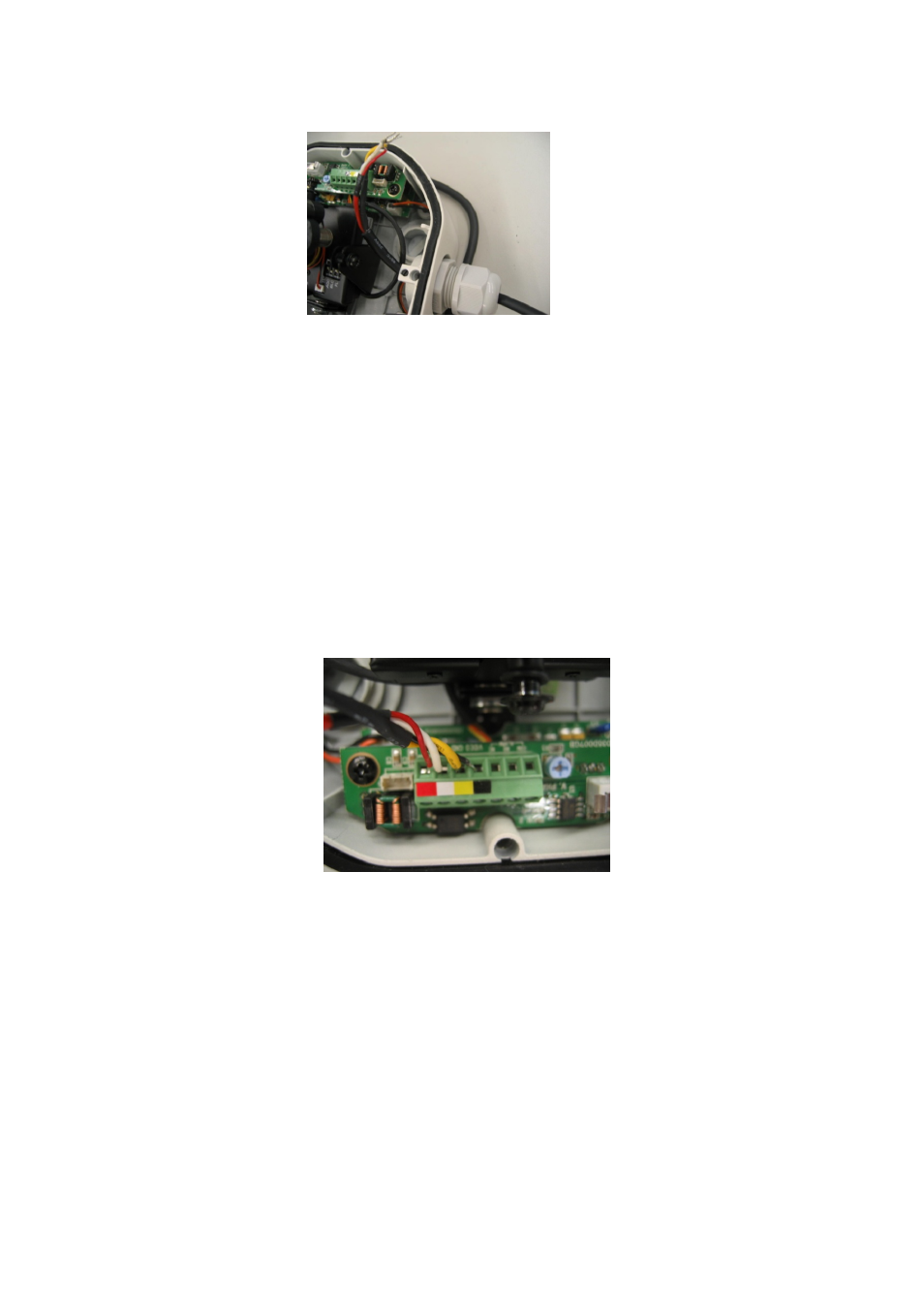

b. Connect cable conduit to the conduit hole and make it tight.
c. Connect the power supply cable (24VAC), video output to the proper
connectors. The extension power has 4 colors for Power +(red), - (white)
and Video(yellow), GND(black). Please match the colors with
terminal board shown as Figure 7. Yellow to yellow, Black to Black,
White to white, red to red. Wrong connection will damage the camera!!
d. Connect 24VAC regulated power source to the camera. Please use
power extension for connecting to it if the power adapter cable is not
long enough.
Figure 7
Figure 6-3
