Access Control List Examples
This section presents three access control list examples:
•
Using the permit-establish keyword
•
Filtering ICMP packets
•
Using a rate limit
Using the Permit-Established Keyword
This example uses an access list that permits TCP sessions (Telnet, FTP, and HTTP) to be established in
one direction.
The switch, shown in Figure 7, is configured as follows:
•
Two VLANs, NET10 VLAN and NET20 VLAN, are defined.
•
The NET10 VLAN is connected to port 1:2 and the NET20 VLAN is connected to port 1:10
•
The IP addresses for NET10 VLAN is 10.10.10.1/24.
•
The IP address for NET20 VLAN is 10.10.20.1/24.
•
The workstations are configured using addresses 10.10.10.100 and 10.10.20.100.
•
IPForwarding is enabled.

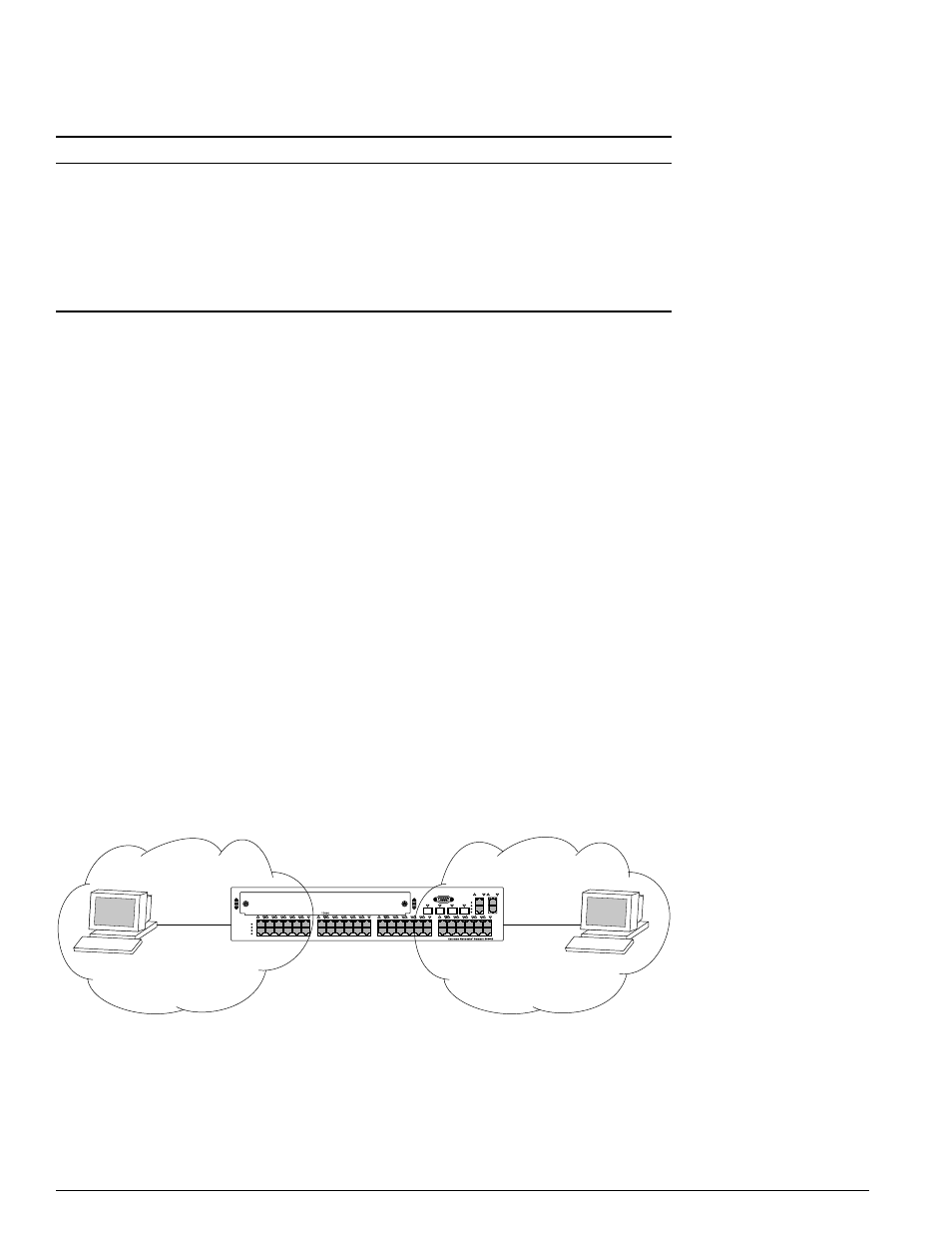

Figure 7: Permit-established access list example topology
The following sections describe the steps used to configure the example.
delete access-mask
Deletes an access mask. Any access lists or rate
limits that reference this mask must first be
deleted.
delete rate-limit
Deletes a rate limit.
show access-list {
Displays access-list information.
show access-mask {
Displays access-list information.
show rate-limit {
Displays access-list information.
Table 39: Access Control List Configuration Commands (continued)
Command
Description
LB48009
10.10.10.1
10.10.10.100
10.10.20.100
10.10.20.1
NET20 VLAN
NET10 VLAN
