orientation and, when multiple loudspeakers are used, the correct
location of each. For the DSA250, the Power End is the end with the
HF subsystem and Signal End is the end with the LF subsystem.
5 . 5 . 3 M U LT I P L E L O U D S P E A K E R S A N D C L U S T E R C O N F I G U R AT I O N S
CAUTION: Only clusters included in DSAPilot may be used. Any
other configurations will result in poor to unusable performance.

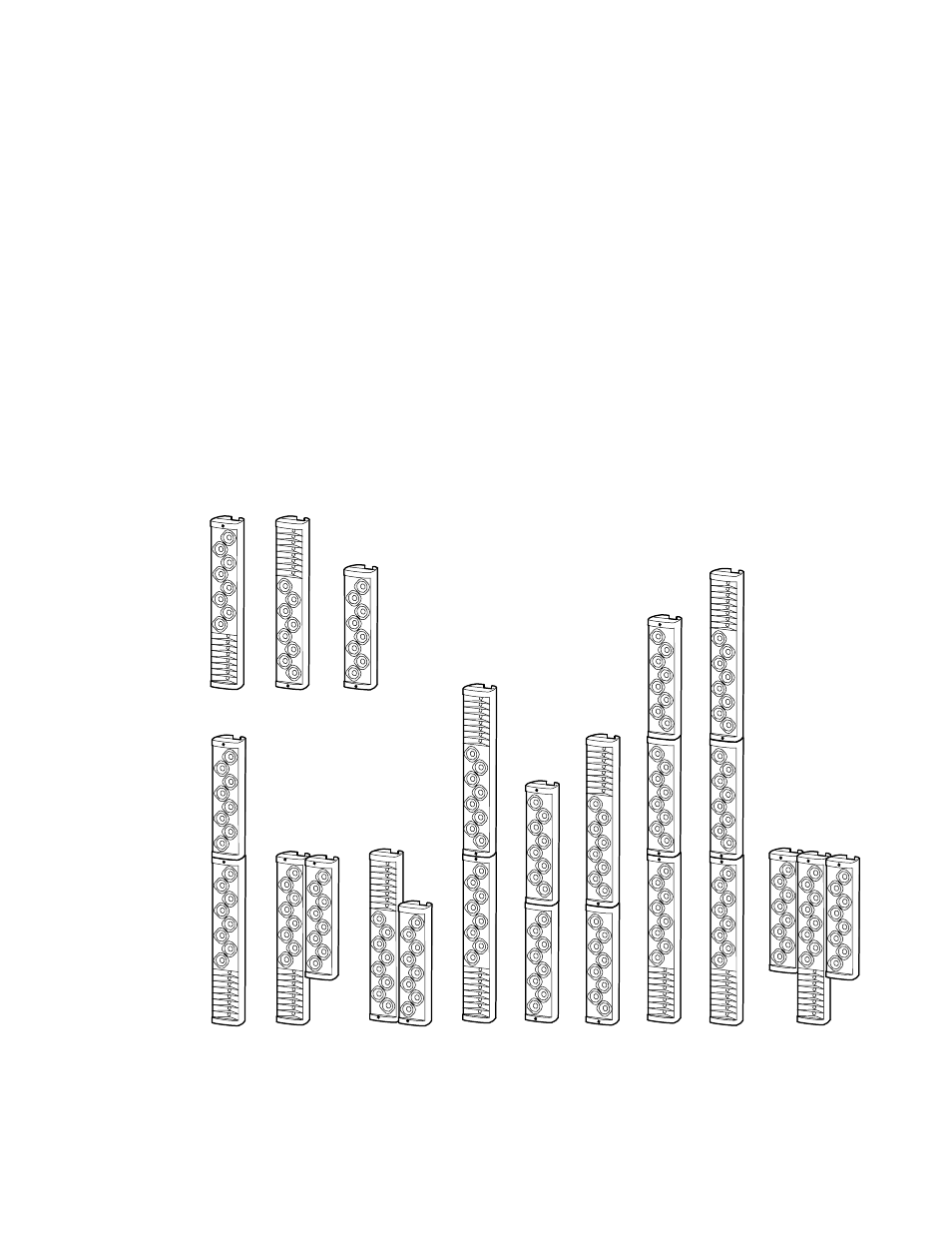

Several cluster configurations are shown in Figure 5.5.3. In some
applications, tighter LF pattern control, higher output, or narrower
vertical coverage may be desirable. Because of these and other possible
requirements, DSAPilot allows several cluster configurations to be
used in a single or in multiple locations to achieve various coverage
and output results.
23
1A 1B 1C
2A 2C 2D 2G 2F 3A 3B 2H 3T
Figure 5.5.3 DSA Cluster Configurations
