CHAPTER 8: DEBUGGER

200

EPSON

S5U1C63000A MANUAL

(S1C63 FAMILY ASSEMBLER PACKAGE)

8.9.10 Program Display

(unassemble)

Function

This command displays a program in the [Source] window after unassembling it. The display con-
tents are as follows:
• Program memory address
• Object code
• Unassembled contents of the program

Format

>u [

]

↵

(direct input mode)

: Start address for display; hexadecimal or symbol (IEEE-695 format only)
Condition: 0

≤

address

≤

last program memory address

Display

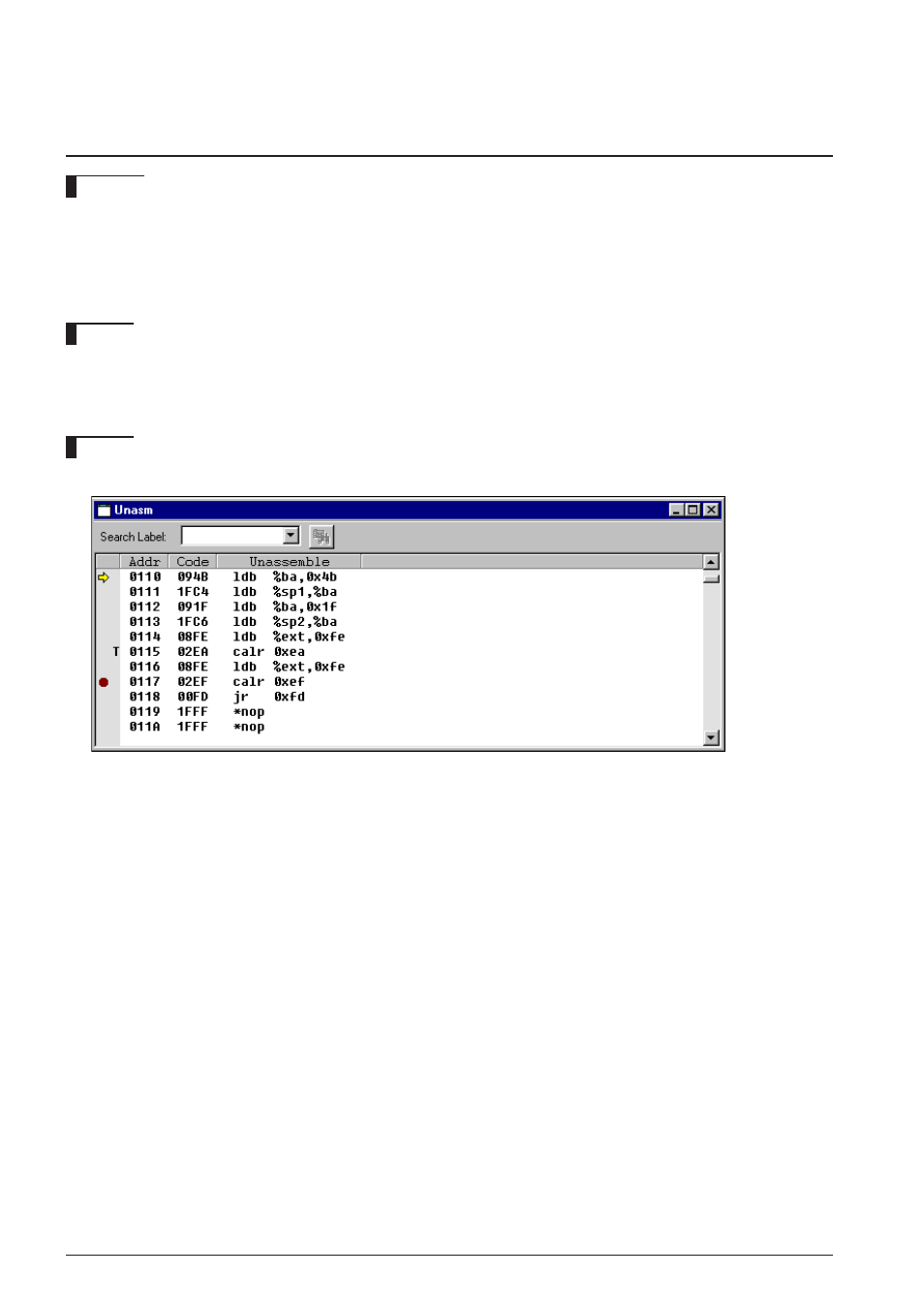

(1) When [Source] window is opened

is not specified, display in the [Source] window is changed to the unassemble display
mode. If

is specified, display in the [Source] window is changed to the unassemble display
mode. At the same time, code is displayed beginning with

(2) When [Source] window is closed

The 16 lines of unassembled result are displayed in the [Command] window. The system then waits
for a command input.
If

is not specified, this display begins with the current PC (displayed in the [Register]
window). If

is specified, the display begins with

↵

ADDR CODE UNASSEMBLE
0110 094B ldb %ba,0x4b
0111 1FC4 ldb %sp1,%ba
0112 091F ldb %ba,0x1f
0113 1FC6 ldb %sp2,%ba
: : : :
011E 1FFF *nop
011F 1FFF *nop
>
