Connecting to COM Port for Local Management
3-22 Installation

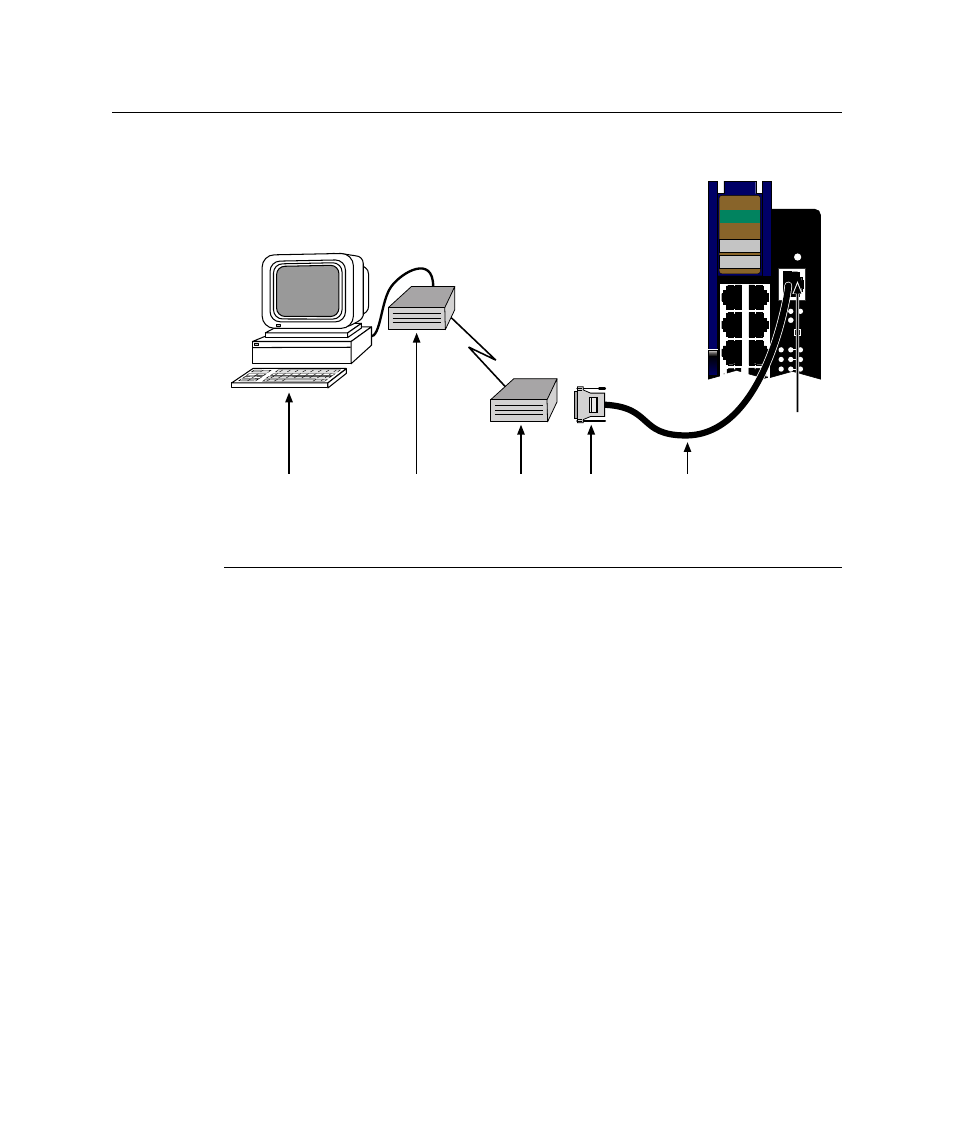

Figure 3-11 Connecting Using a Modem
1 UTP straight-through cable with RJ45 connectors 4 Local modem
2 RJ45 COM port 5 Remote modem
3 RJ45-to-DB25 modem adapter 6 PC
