Preparing to Install the 4H4285-49
Matrix DFE-Gold Series PoE Module 4H4285-49 Installation Guide 3-11
Electrical Hazard: To prevent exposure to an energy hazard in a 4H4285-49 connected
to an external N-POE Power System, disconnect the 48-Vdc power cable from the 48-Vdc
input connector before servicing or removing the 4H4285-49.
Riesgo Eléctrico: Para prevenir la exposicion a un riesgo electrico en una tarjeta
4H4285-49 conectada a un sistema externo de energia N-POE Power System,
desconectar el cable de poder de 48-Vdc del conector de entrada 48-Vdc antes de dar
servicio o remover la tarjeta 4H4285-49.
Elektrischer Gefahrenhinweis: Um den Schutz vor el. Schäden des Moduls
(4H4285-49) zu gewähleisten, bei Verwendung der N-POE Systeme, sollte dies bevor
man dieses entnimmt oder Servicearbeiten daran vornimmt, vom 48-Vdc Stecker getrennt
werden.

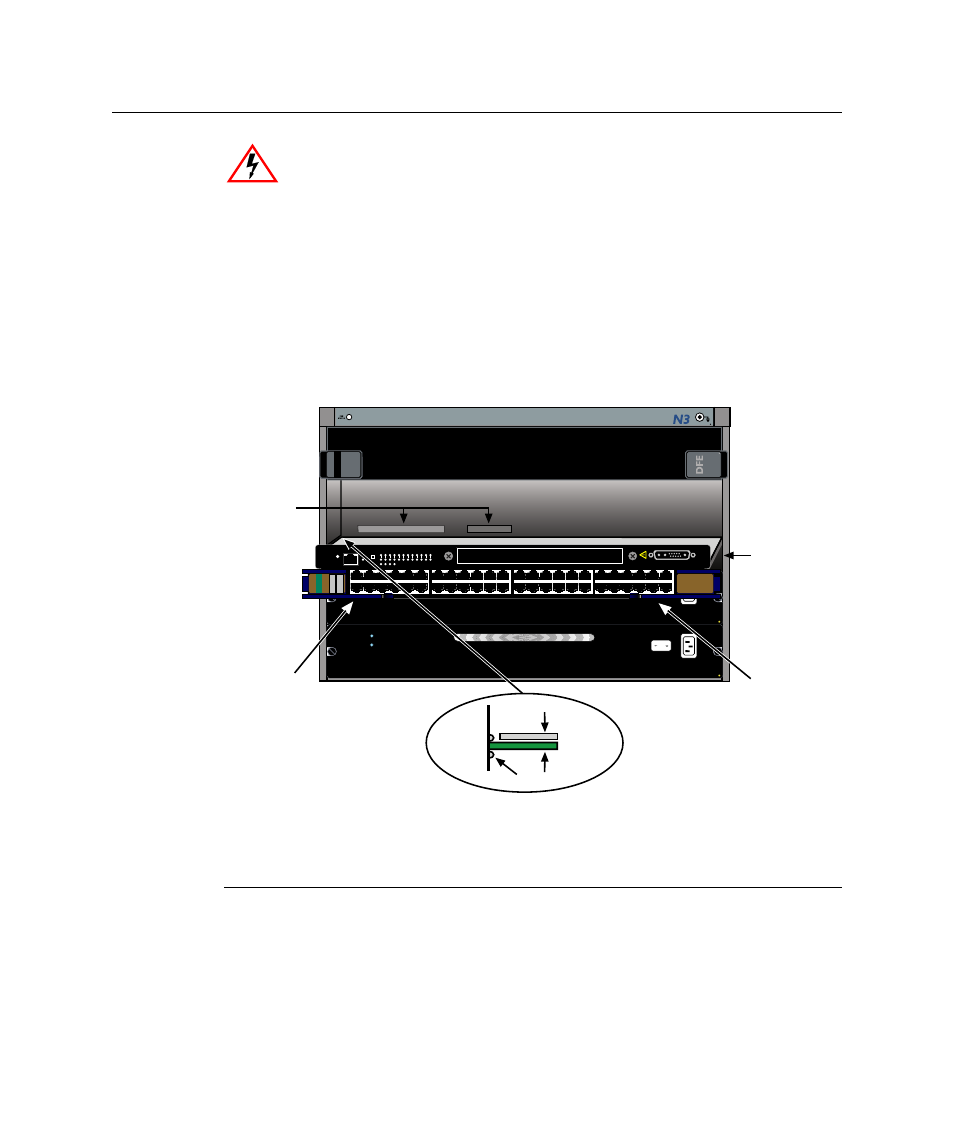

Figure 3-3 Installing Module into Matrix N3 or N5 Chassis (Matrix N3 shown)
1 Card guides 5 Upper locking tab (shown in closed position)
2 Slot 1 (Top slot is slot 3.) 6 Lower locking tab (shown in closed position)
3 Module card 7 FTM2 backplane and power connectors
4 Metal back panel
7C203-1
REDUNDANCY
PWR
100-125V~12.0A 200-240V~6.0A 50/60 Hz
7C203-1
REDUNDANCY
PWR
100-125V~12.0A 200-240V~6.0A 50/60 Hz
1X G R O U P 1 G R O U P 2 11X 13X 23X
OFFLINE/ RESET COM
CPU
MGMT
GR OUP SELECT
GR OUP
1 2 3 4 5 6 7 8 9 10 11 12
POE 12 X 14X 24X
G R O U P 3 25X 35X
26X 36X
G R O U P 4 37X 47X
38X 48X 1 2 3 4 48V
--- 20A
MAX
OPTIONAL PO WER INPUT
DFE 4H4285-49 FAST ENET
