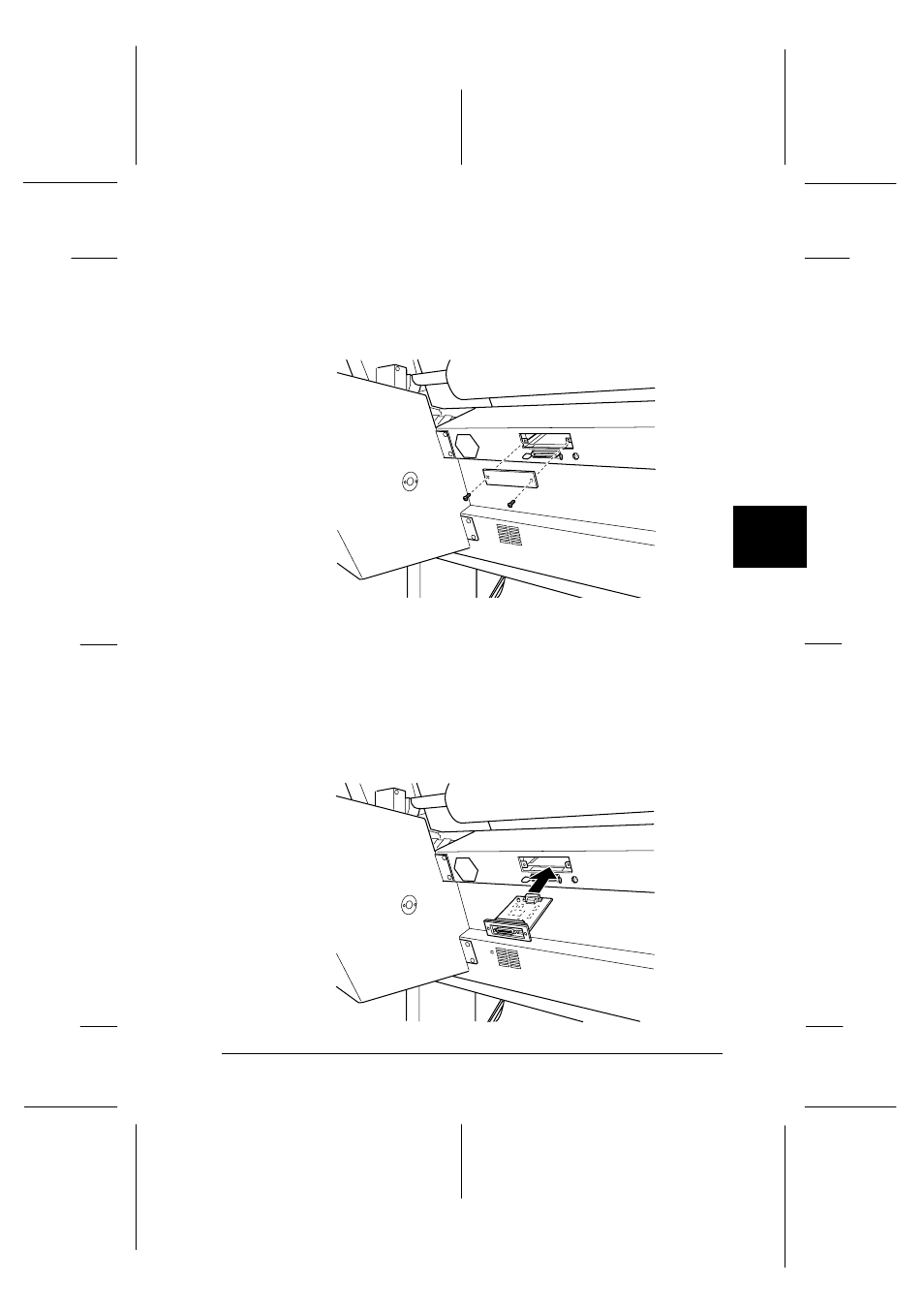

4. Use a cross-head screwdriver to remove the two screws

securing the shield plate to the optional interface slot; then lift
off the plate. Be sure to keep the screws; you may need to use
them again when you re-install the shield plate.

5. Set any DIP switches and jumpers on the card, if necessary.

See the interface card's documentation for details.

6. Slide the interface card along the slots on both sides of the

interface compartment. Push it in firmly to fully insert the
connector at the rear of the interface card into the printer’s
internal socket.
