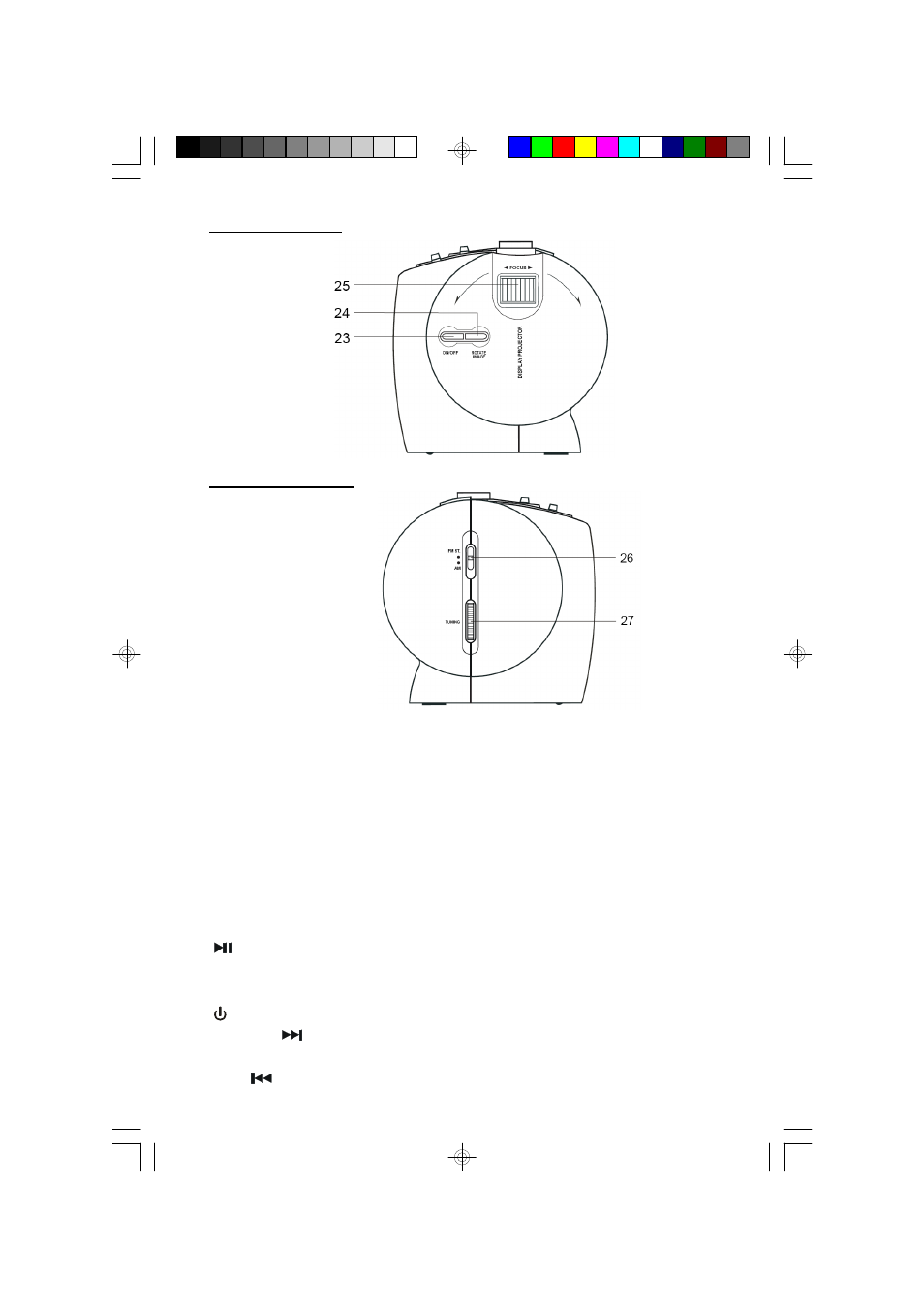

Left Side Panel
Right Side Panel
1. Display Projector.
2. FUNCTION Button (RADIO / iPOD or
AUX).
3. ALARM 2 (RADIO / BUZZER / iPOD /
OFF) Selector Switch.
4. ALARM 1 (RADIO / BUZZER / iPOD /
OFF) Selector Switch.
5. iPod Dock & Dock Adapter.
6. iPod Connector.
7. ALM MODE Button.
8. PLAY Y Button.
9. VOLUME + Button.
10. Right SPEAKER.
11. POWER Button.
12. SKIP/SET H Button
13. VOLUMN - Button.
14. SKIP M Button.
15. ALARM 2 Setting Button.
16. ALARM 1 Setting Button.
17. SNOOZE (SLEEP OFF / BRIGHTNESS
CONTROL) Button.
18. TIME ZONE Button.
19. TIME Setting Button.
20. MONTH/DATE Setting Button.
21. SLEEP Button.
22. Left SPEAKER
23. ON/OFF (Projector) Button.
24. ROTATE IMAGE Button.
25. Projector Focus-Adjustment Ring.
26. FM ST/ AM Band Selector.
27. TUNING Control.
28. PHONES Jack.
29 AUX IN Jack.
30. Battery Holder (Memory Backup) .
