LW Scientific Mi5 Polarizer - Manual (Page 4)

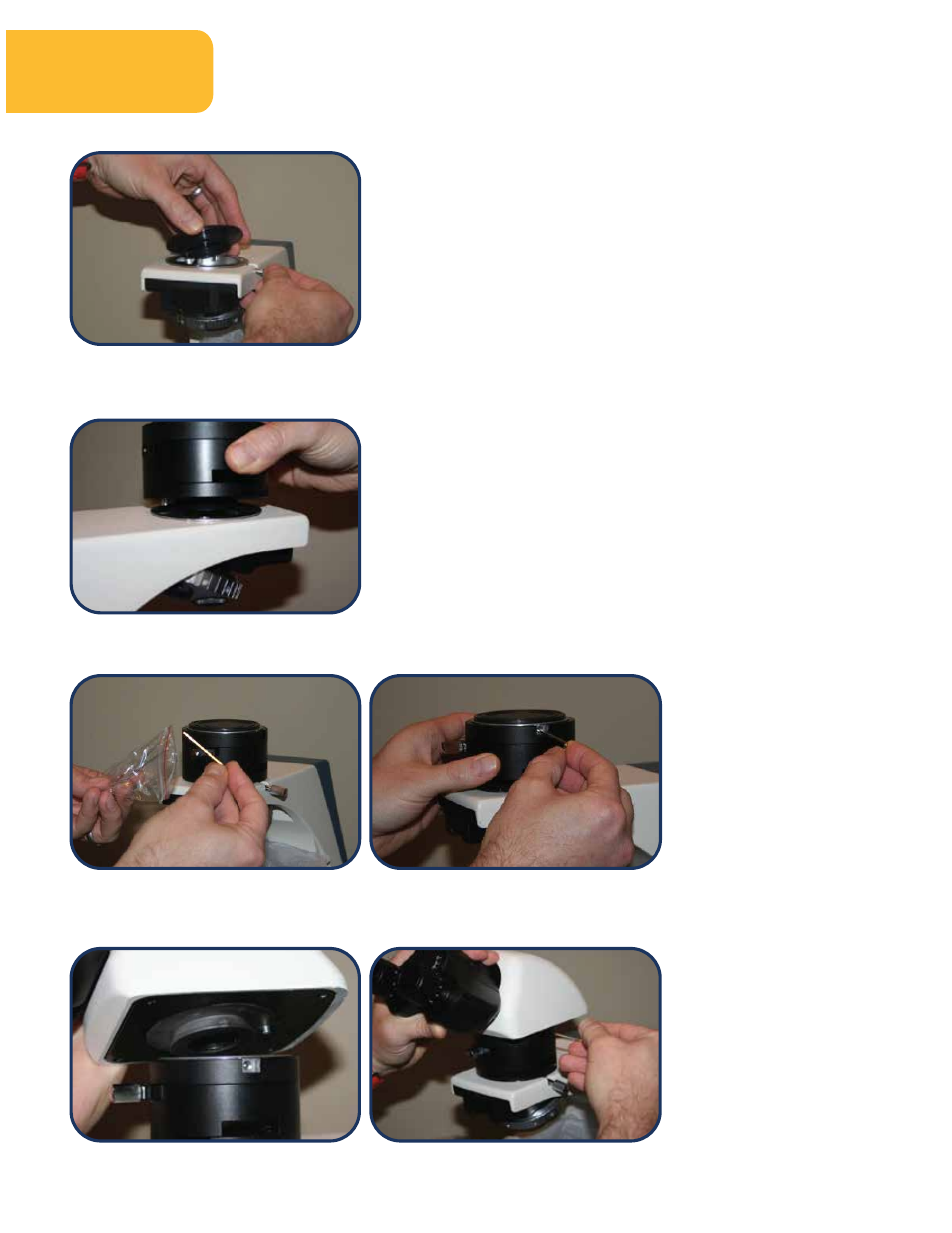

Assembly
2
3
4
1 First, remove the cap from the top of the microscope base and put back in the box.
Unscrew the set screw to enable the Analyzer Module to be inserted on to the top of the microscope base. Take the
Analyzer Module” and ensure that the silver pin in positioned on the bottom and towards the back. It should align with the
notch on the microscope base. Screw down the set screw to ensure the Analyzer Module is securely in place.
Next, take the included Allen wrench and slightly loosen the hex head screw on the top of the Analyzer Module’ (*be sure
NOT to loosen all the way) and remove plastic cap.
Take the binoc/trinoc head and carefully insert it onto the top of the Analyzer Module. Ensure that the flange on the head
of the microscope is firmly flush with the base. To secure the head of the microscope to the Analyzer Module, screw back in
the Allen screw and securely fasten. *BE SURE NOT TO OVERTIGHTEN*
