H/W Monitor
This menu shows the hardware monitor configuration
settings. Select an item then press to display the
configuration options.
System/CPU Temperature
The onboard hardware monitor automatically detects and
displays the CPU and motherboard temperatures.
FAN Speed
The onboard hardware monitor automatically detects
and displays the CPU , chassis and system fan speeds in
rotations per minute (RPM). If the fan is not connected to
the motherboard, it displays N/A.
CPU Voltage, 3V voltage, 5V voltage, 12V voltage
The onboard hardware monitor automatically detects the
voltage output through the onboard voltage regulators.

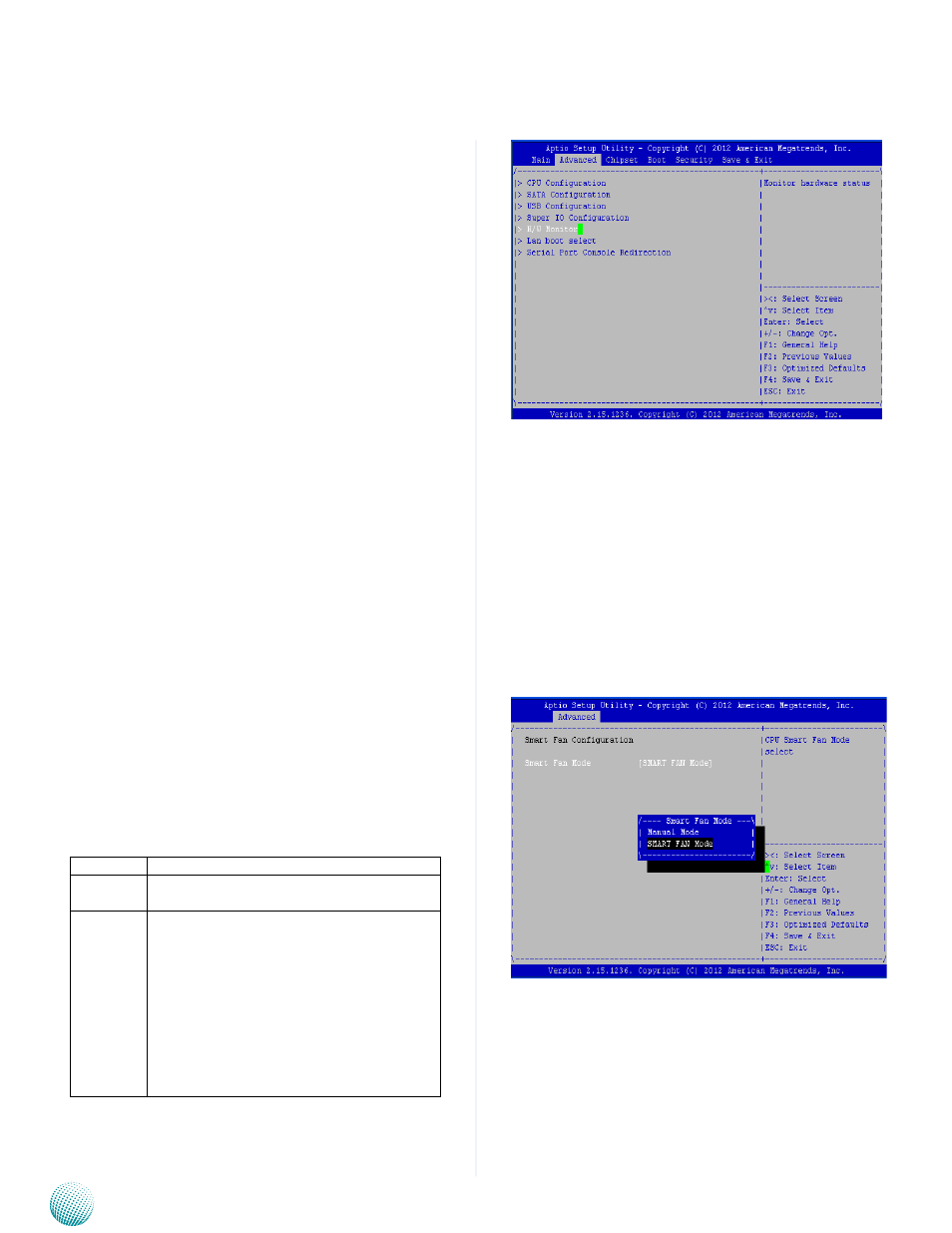

Smart Fan Mode Configuration
It allows you to configure the smart fan feature. You
can manually turn on the fans or set the target CPU
temperature at which the fans will start running if the
fan is not yet turned on. And the fans can also be turned
off automatically if the temperature for the CPU is at or
below the specified value. Refer to Motherboard Layout on
Chapter 3 Block Diagram for CPU fan connectors.
Item Selection
Manual
Mode
Manually set the fan speed from 0 (lowest)
speed to 255 (highest speed)
Smart Fan
Mode
It presets the target system temperature at
which the system fan will start running if
the fan is not yet turned on with this mode.
And the system fan can also be turned off
automatically if the temperature for the
system is at or below the specified value.
This feature specifies the temperature with
the corresponding fan speed but it may vary
depending on model specifications.
