Hardware Setup
Chapter 2
Network Application Platforms
CompactFlash Card Installation

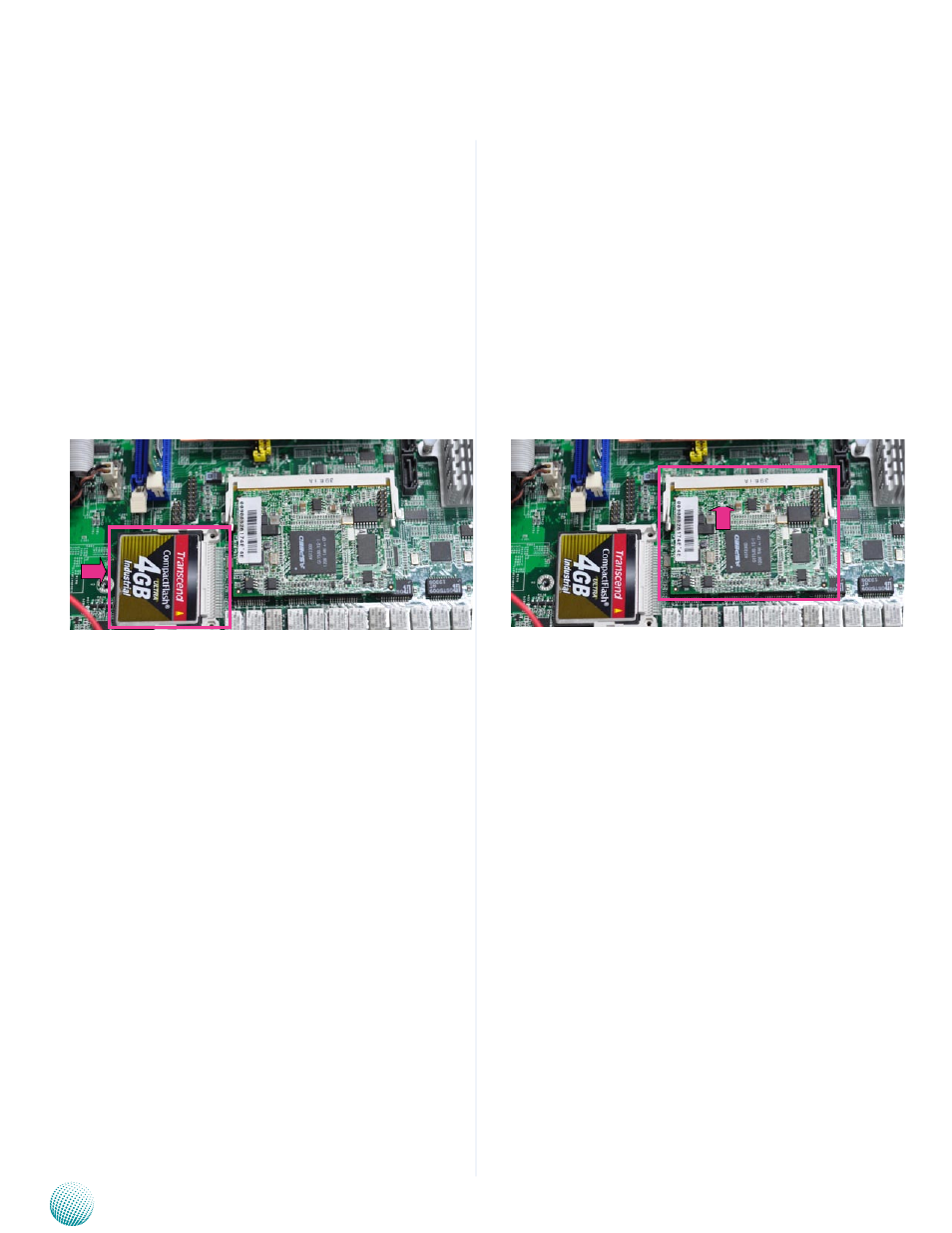

FW-8759 provides one CompactFlash slot. Follow the
procedure bellow for installing a CompactFlash card.
Align CompactFlash card and the card slot with the
1.
arrow pointing toward the connector.
Push the card to insert into the connector.
2.
IPMI Card Installation
FW-8759 provides one OPMA slot for Lanner IPMI card
AST2300. Follow the procedure bellow for installing an IPMI
card. After installing the card, the LAN7 port on the front
panel is able to perform IPMI 2.0 based management
Align the IPMI card and the card slot.
1.
Push the card to insert into the connector.
2.
