Mounting

Mini-Argus Operating Manual_EN

Page 7

Authorised electrician

5.4

Connecting DC strings

DANGER

Danger of death from high voltage.
Serious injury or death by contact with cables and terminals in the string collector.

Disconnect the device from the power supply.

Lock circuit breakers to prevent reconnection.

Ensure that the device is completely disconnected.

The fuse holder must not be opened until the string collector is disconnected.

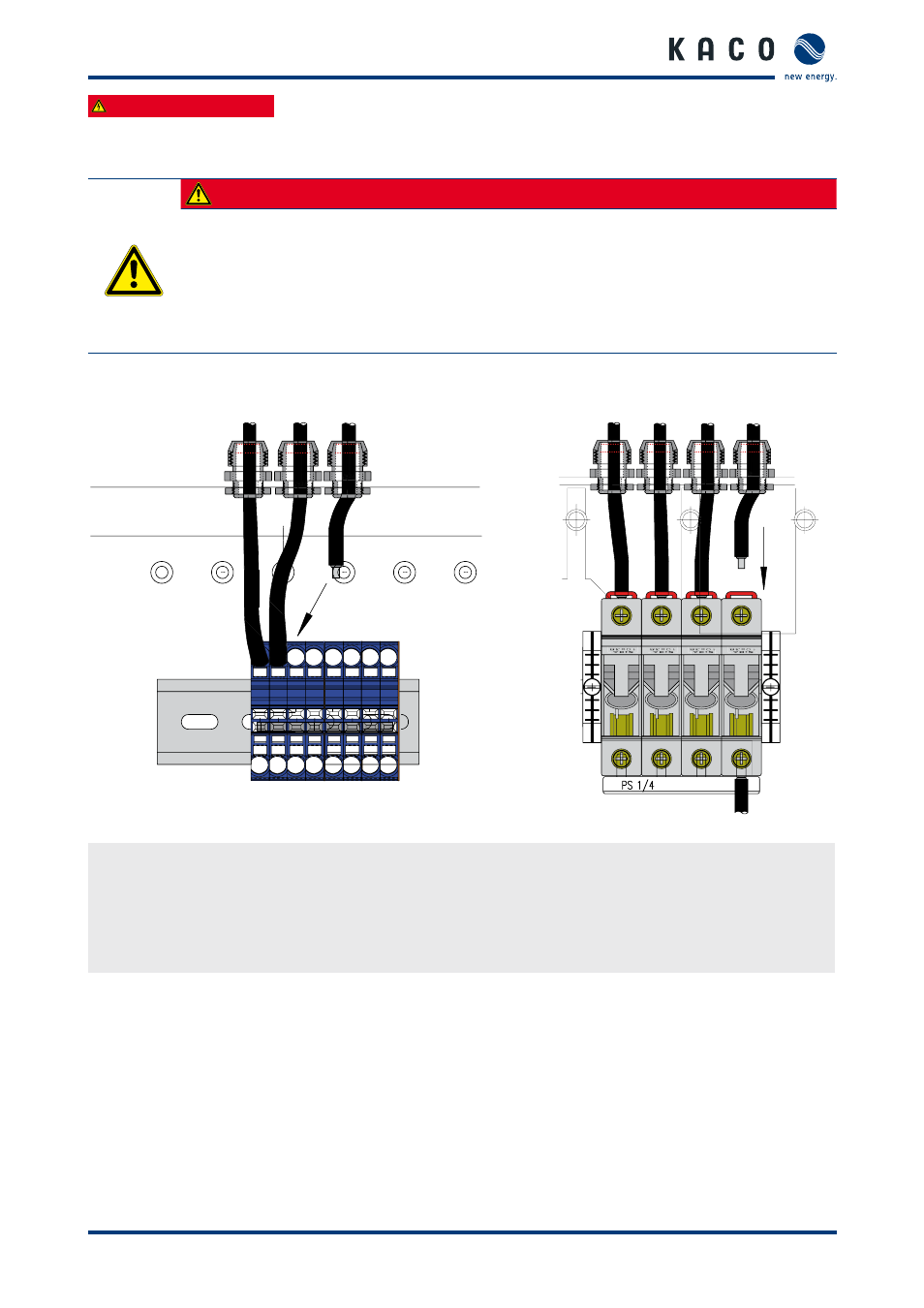

↻ Connect positive strings directly to the fuse holders with screw terminals.

↻ Connect negative strings to the blue spring-loaded terminals.
Use the operating tool for spring-loaded terminals to connect the string lines to the spring-loaded terminals.

↻ Observe the wire cross-sections.

↻ Observe the polarity.

The connection of the Mini-Argus FR is with DC solar plugs.
