Mounting
Page 12 Mini-Argus Operating Manual_EN
Authorised electrician

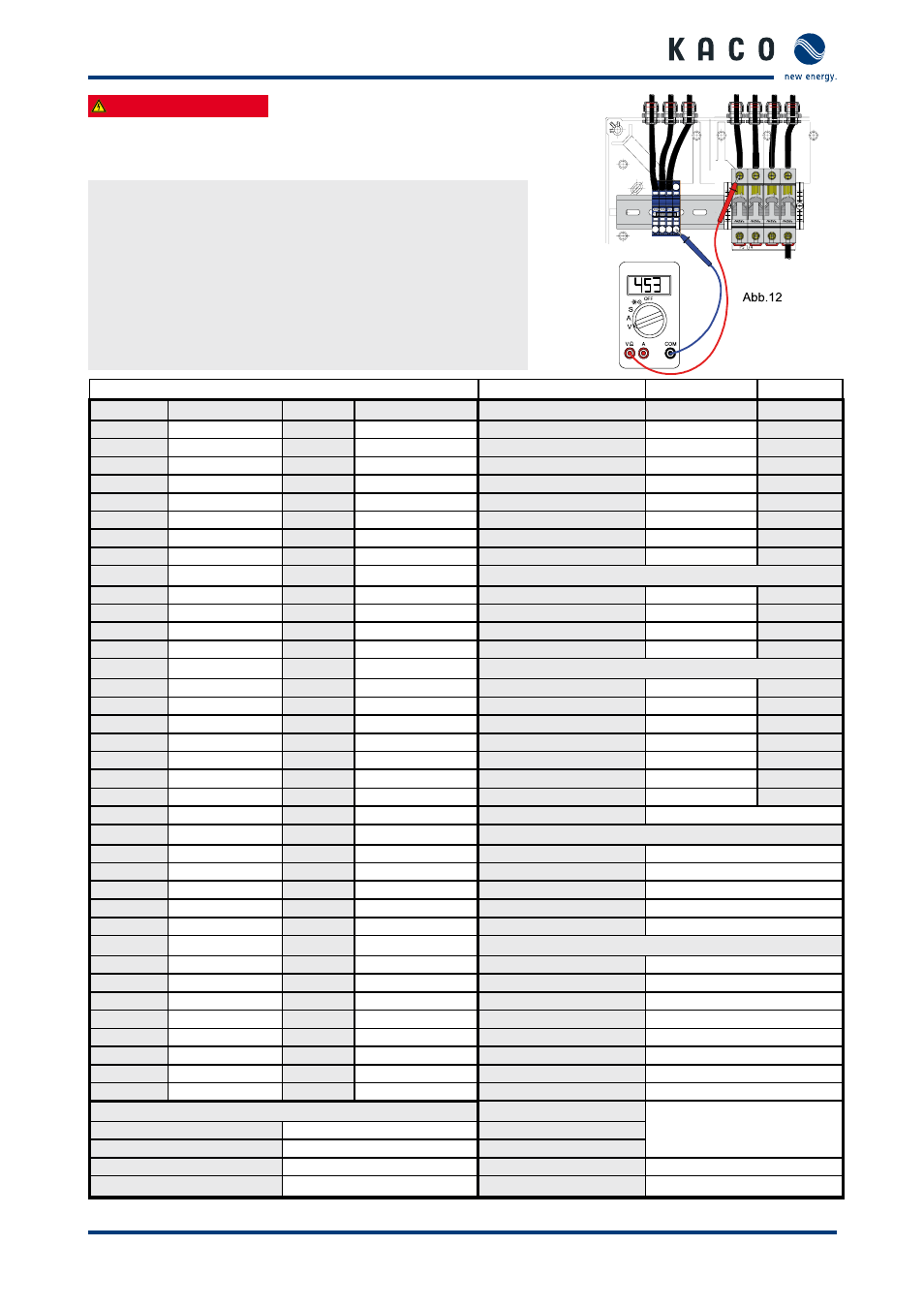

5.11 String measurement
Checking the array
↻ Disconnect the device from the power supply.
↻ Observe safety instructions.
↻ Open fuse holder.
↻ Remove fuses.
↻ Set voltmeter to measure DC voltage.
↻ Measure strings.
↻ Record measured values in the protocol.
String measurements
Input
Uoc (VDC) Input Uoc (VDC) Modules
String 1 String 36 Vendor
String 2 String 37 Type
String 3 String 38 Rated power Wp
String 4 String 39 Open-circuit voltage V (Uoc)
String 5 String 40 Rated voltage V (Umpp)
String 6 String 41 Rated current A (Impp)
String 7 String 42 Short-circuit current A (Isc)
String 8 String 43 TK (Uoc) % /K / mV/K
String 9 String 44 Strings
String 10 String 45 Number of
String 11 String 46 Modules in series A
String 12 String 47 Protection mm²
String 13 String 48 Cable cross-section
String 14 String 49 Inverter
String 15 String 50 Manufacturer
String 16 String 51 Type kW AC
String 17 String 52 Rated power V
String 18 String 53 AC voltage kWp DC
String 19 String 54 max. DC power A
String 20 String 55 max. DC current V
String 21 String 56 max. DC open-circuit voltage V
String 22 String 57 MPP control range
String 23 String 58 System address
String 24 String 59 Name
String 25 String 60 Addition
String 26 String 61 Street
String 27 String 62 Post code, city
String 28 String 63 Contact
String 29 String 64 Installation company
String 30 String 65 Company
String 31 String 66 Name
String 32 String 67 Addition
String 33 String 68 Street
String 34 String 69 Post code, city
String 35 String 70 Telephone
Fax
e-mail
Start-Up
Date
Company
Installer
Date
Signature of installer Signature of customer
