24 Option Module - LIO-06 Module
82 YASKAWA America, Inc. MP3200iec Hardware Manual YAI-SIA-IEC-5
‹

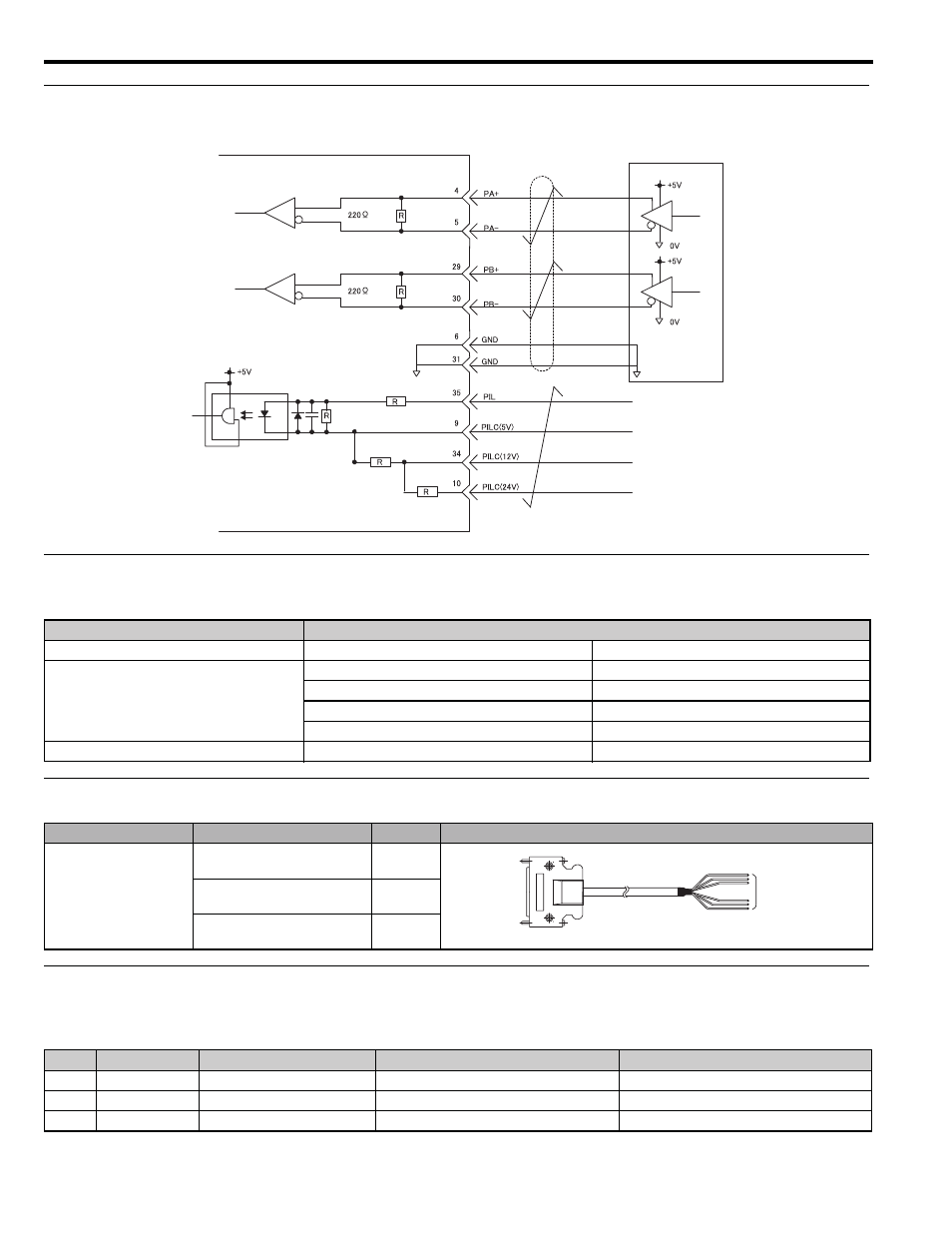

Encoder Input Circuit Connection Example
‹
LIO-06 Connectors and Pin Layouts
• Connectors
‹
Standard Cable Model and External Appearance
‹
Standard Cable Wiring Table
The following shows the standard cable wiring for the JEPMC-W2064 cable.
Item Description
Use Connector 10250-52A3PL (Sumitomo 3M) LIO-06 Connector (RoHS-compatible)
Mating Connector
10150-3000VE (Sumitomo 3M) Connector unit
10150-3000PE (Sumitomo 3M) Connector Unit (RoHS-compatible)
10350-52A0-008 (Sumitomo 3M) Shell screw lock type
10350-52F0-008 (Sumitomo 3M) One-touch lock type
Standard Cable JEPMC-W2064-oo-E Pigtail
Name Model Length External Appearance (JEPMC-W2064-oo-E)
Cable for LIO-06
Module
(Single loose wire)
JEPMC-W2064-A5-E 0.5 m
JEPMC-W2064-01-E 1 m
JEPMC-W2064-03-E 3 m
Pin Wire Color Markings Signal Name Function
1 Orange — AO Analog Output
2 Gray — AI Analog Input
3 White — N.C.
A-phase
Pulse Generator
B-phase
50-core
Loose wires
