38

YASKAWA America, Inc. MP3200iec Hardware Manual YAI-SIA-IEC-5

17 Connecting the RLY OUT Connector

17

Connecting the RLY OUT Connector

The RLY OUT connector connects the status output terminal. It is a normally open contact relay output. The RLY OUT
connector is linked to the operation of the RDY indicator: The contacts close when the indicator lights, and they open
when the indicator goes out.

Note: When the RDY indicator is lit, the Controller is operating normally. It does not necessarily mean that the user programs are being

executed.

‹

RLY OUT Connector Specifications

The operation of the RLY OUT connector is linked to the operation of the RDY indicator on the CPU Unit.

RDY indicator lit: Circuit closed

RDY indicator not lit: Circuit open

„

Contact Ratings

‹

RLY OUT Connector Connection Cable

To connect the RLY OUT connector, use a cable with a wire size of AWG28 to AWG14 (0.08 to 2.0 mm

2

) and a

maximum outer diameter of 3.4 mm.

The procedure to make the RLY OUT connector cable is the same as for the 24-VDC power supply cable.

Note: You can use the RLY connector on the Power Supply Unit only on the Rack to which the CPU Unit is mounted. On Racks without

the CPU Unit, the power supply circuit is always open.

‹

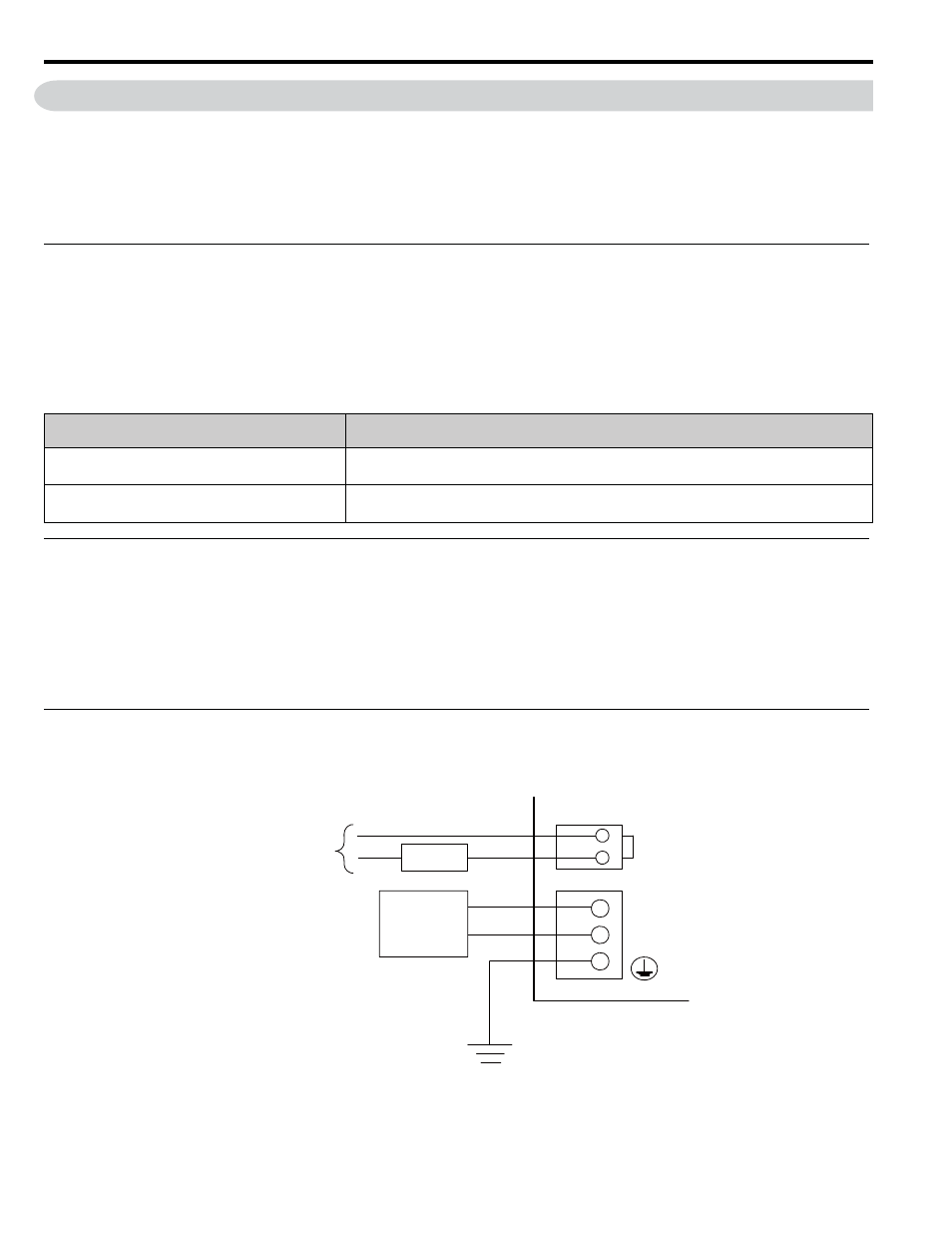

RLY OUT Connector Connection Example

Refer to the following figure for an example of connecting the RLY OUT connector.

Input

Voltage

Current Capacity

24 VDC

0.5 A (resistive load)

0.25 A (inductive load)

125 VAC

0.4 A (resistive load)

0.2 A (inductive load)

RLY OUT

24 VDC

0 VDC

POWER

Ground to 100

Ω max.

24-VDC

power supply

Power
supply

Error: OFF

Normal operation: ON

RLY OUT output
