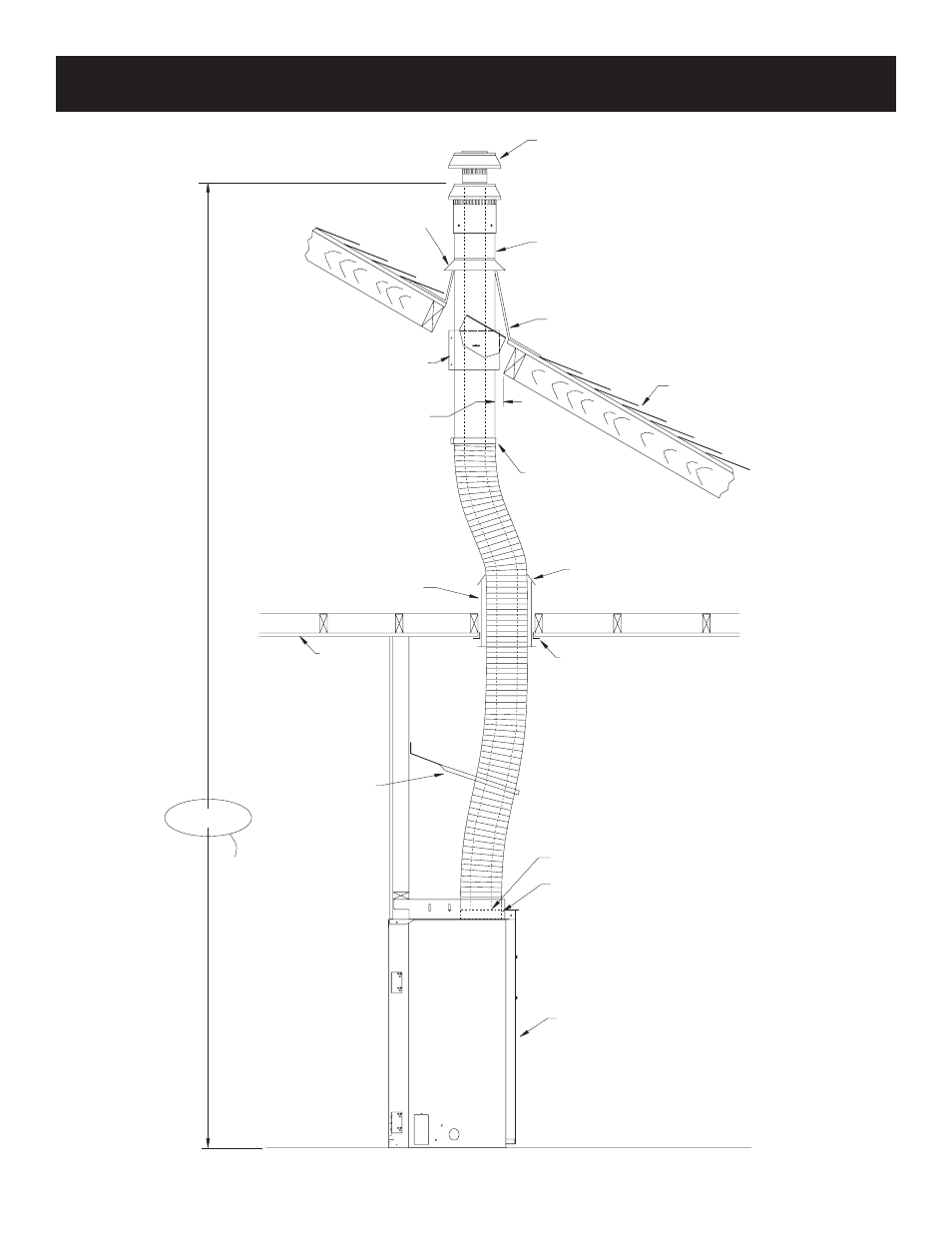

VERTICAL TERMINATION
4’ LONG RIGID PIPE
ROOF FLASHING
ROOF EXTERIOR
CLAMPS AT FLUE &
INLET VENT CONNECTIONS
STORM COLLAR (USE TO
KEEP INSULATION OUT OF
THIMBLE ASSEMBLY)
FIRESTOP/THIMBLE
4” DIA. FLUE CONNECTOR
7” DIA. ADAPTER COLLAR
WITH GASKET & CLAMPS
DIRECT VENT FIREPLACE
NOTE: DVVK-4FV KIT
MAXIMUM HEIGHT
(INCLUDING FIREPLACE) IS
13’. TO EXTEND VENT RUN,
AN ADDITIONAL VENT
EXTENSION KIT IS
NECESSARY
VENTING SUPPORT
STRAPS (AS REQ’D)
35’ MAX
CEILING
ADJUSTABLE
FIRESTOP/THIMBLE
ASSEMBLY
CLEARANCE TO
COMBUSTIBLES
REQUIRED FROM
VENT PIPE
ADJUSTABLE
ROOF JACK
ASSEMBLY
STORM COLLAR
DVVK-4FV DIRECT VENT TERMINATION KIT (cont.)
Figure 36
