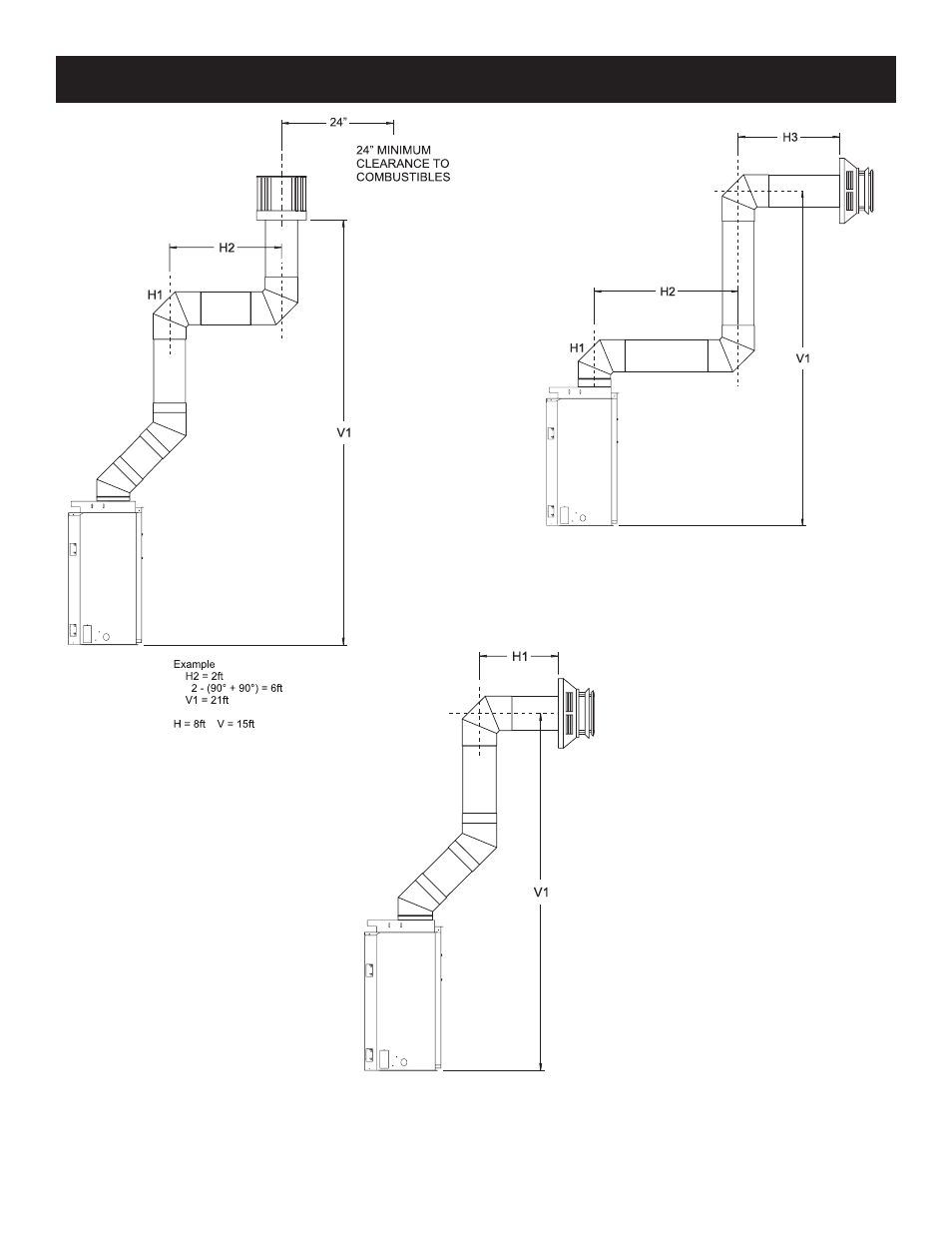

Figure 28
Figure 26
Figure 27
Example
H2 3ft, H3 1ft = 4ft
(90° + 90° + 90°) = 6ft
V1 = 21ft
H = 10ft V = 21ft
Example
H1 = 2ft
V1 = 20ft
H = 2ft V = 20ft
EXAMPLES - TOP VENT RUN
