Connecting to a Video Source
■ ■ ■ ■ ■ ■
23
2. If your video source uses a small, round, one-prong
composite (RCA) video connector, you’ll need the RCA
video cable that comes with the projector. If your video
source uses a large, round, four-prong S-Video connector,
you will need to purchase the appropriate cable or use the
cable that came with your video source.

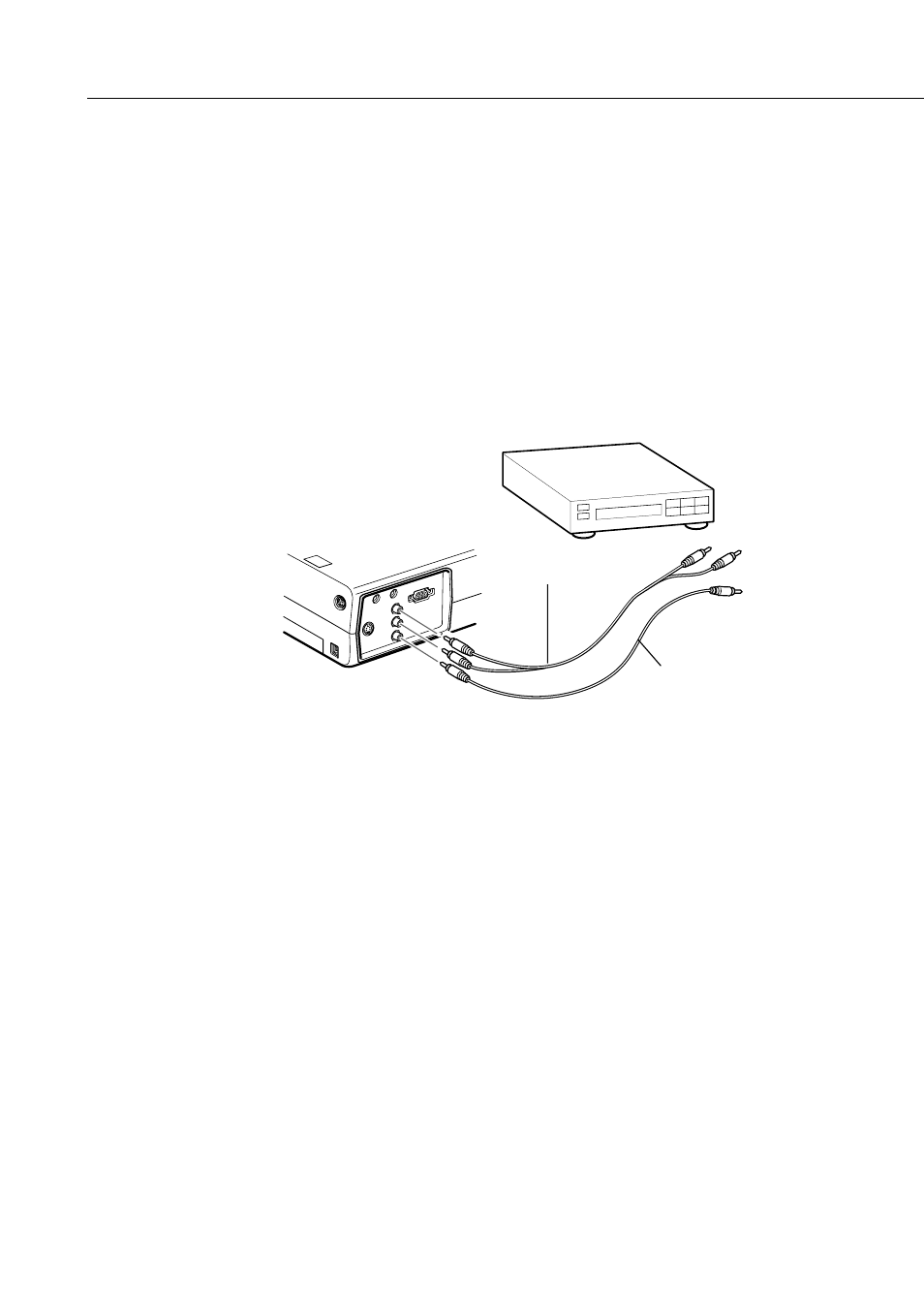

3. For Composite Video, connect the yellow RCA plug on
one end of the RCA video cable to the projector’s Video
jack. Connect the other yellow RCA plug to the video-out
jack of your video source.
4. Connect the RCA audio cable to the Audio jacks of the
projector: insert the white plug into the L jack and the red
plug into the R jack. Connect the plug at the other end of
the RCA audio cable to the audio output jacks of the
video source.
5. For S-Video, insert one end of an S-Video cable into the
projector’s S-Video connector. Insert the other end into
the S-video out jack of your video source.
RCA video cable
RCA audio cable
