15
EC9535
Reference Manual
3 Connect the other end of the cable to the PC running the UniConfig application.
4 If a secondary (optional for redundancy) control card is installed, connect to the ‘DIAG’ con-
nection in the ‘SEC’ section using a DE9 connector and a serial cable as described in step 2
and step 3.
Making System Alarm Connections
The EC9535 provides a system alarm that notifies you of a malfunction, such as when a fan or
power supply is not functioning properly. And alarm can be connected to an external alarm
indicator that displays visual cues when the alarm is activated. Grass Valley does not provide
external indicator equipment, but does provide instructions on wiring the alarm connections.
See
Alarm Indicator Equipment on page 15.
How to Make Alarm Connections
1 On the rear of the router, locate the ‘ALARMS’ connector:

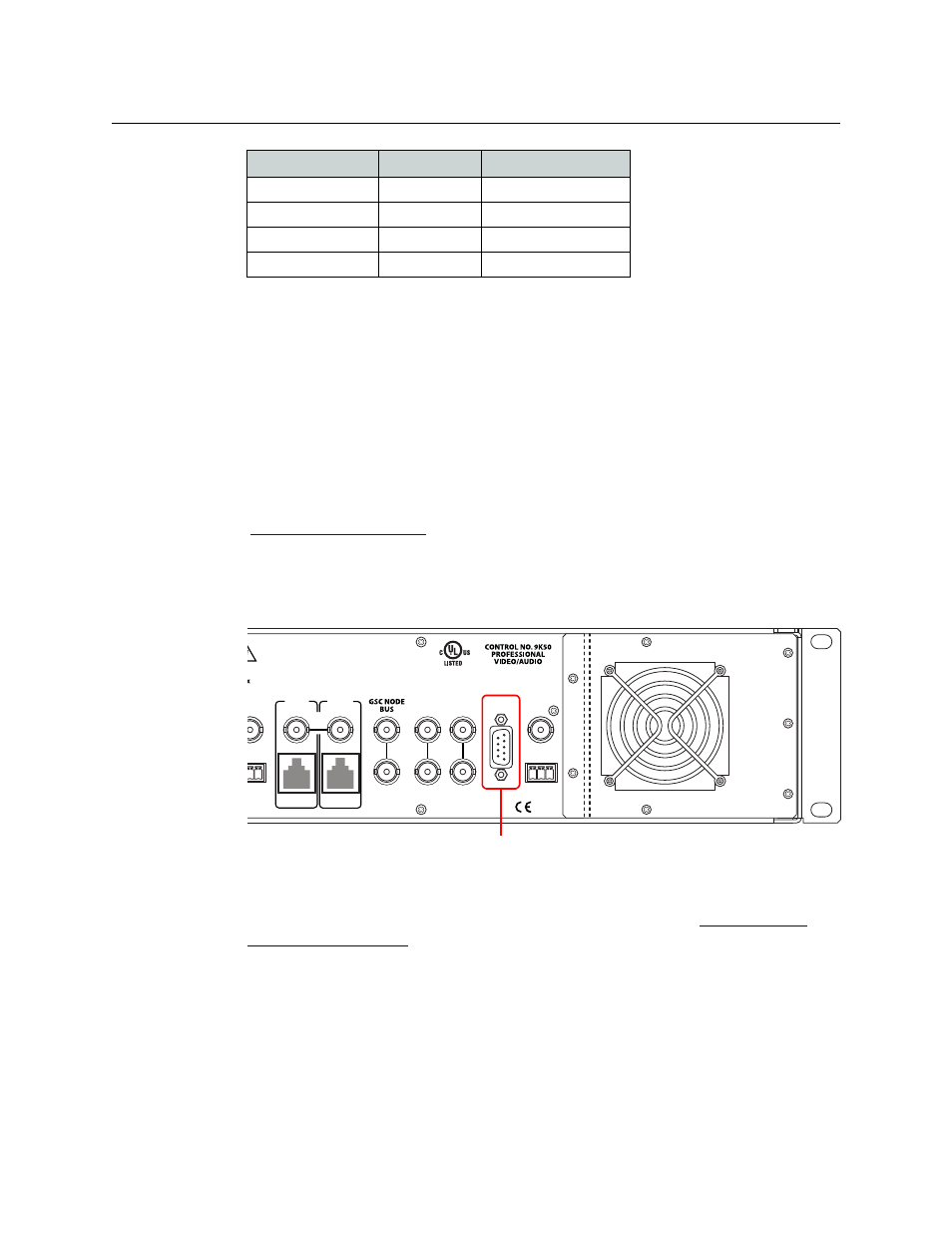

Fig. 2-6: System Alarm Connection (Rear View)
2 Connect to the ‘ALARMS’ connection using a DE9 connector and cable.
3 Connect the other end of the cable to an external alarm indicator. See “Alarm Indicator
Equipment” on this page for information on wiring the DE9 connector.
Alarm Indicator Equipment
An external alarm indicator can be created to display visual cues when a failure has occurred on
the EC9535 frame. LEDs can be wired to specific pins on a DE9 connector such that each LED
indicates what specific router module has failed.
The ‘ALARM’ connection on the rear of the EC9535 uses a DE9 connector. An “alarm” or ON
condition occurs when the connection between an alarm pin and Alarm_COM (common)
DSR 6 DTR
RTS 7 CTS
CTS 8 RTS
Ground 9 Ground
PC End (DCE) Pin Router End (DTE)
VIDEO
REF 2
VIDEO
REF 1
ALARMS
TIME
CODE
LOOP LOOP LOOP
SEC
CTRL
LOOP
THRU
10/100 BT
10 B 2
PRI
CTRL
10 B 2
10/100 BT
AES
REF 1
AES
REF 2
E146905
System Alarm Connector
