3.1.3 Rack mounting
The optional LDK 4902 19” rack mount casing can be used to mount up to three BMO
boxes in a single 19-inch, 2HE rack. The unused positions in the bracket should be
covered with a LDK 4906/10 empty bay cover.
Slide the BMO box into the rack mount casing until it snaps into place. To remove the
BMO box push the locking lever at the bottom and pull out the unit.
Install and remove the empty bay cover in the same manner.

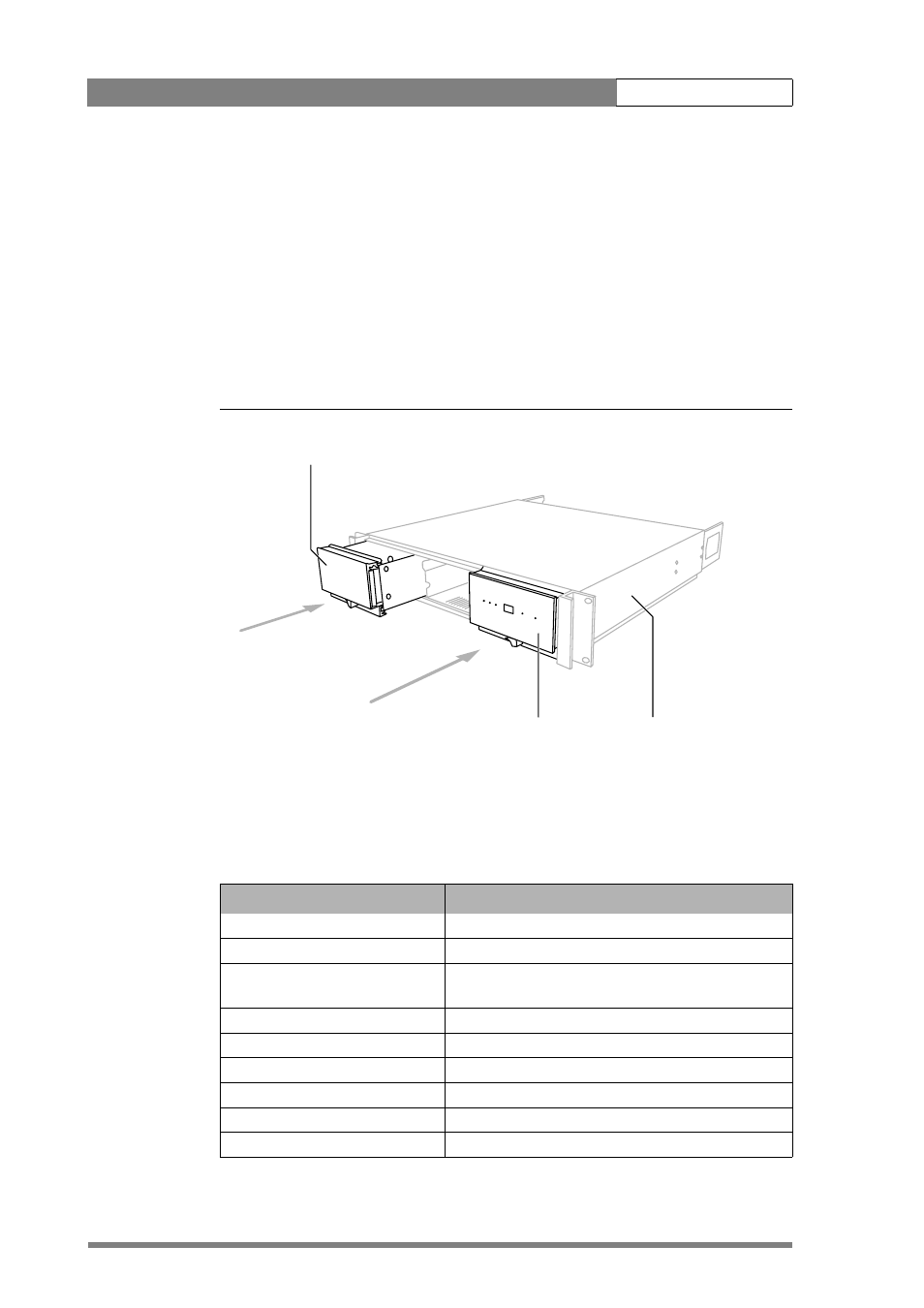

Figure 14. BMO box rack mounting
3.2 Specifications
LDK 4901
BMO Box LDK 4902
19” rack mount casing
LDK 4906/10
empty bay cover
Table 2. LDK 4901 BMO box specifications
Item Value
Power requirements 100 to 240 Vac (-10% / +6%) 50 to 60 Hz
Power connection IEC type, 3-pin male
Fiber connection SMPTE 304 hybrid fiber (other systems are
available)
HD-SDI Input SMPTE 292
Triax connection Triax connector
Operating temperatures -20 to +50°C (-4 to +122°F)
Storage temperatures -40 to +70°C (-40 to +158°F)
Weight (approx.) 2.7 kg
Dimensions 460 (D) x 140 (W) x 88 (H) mm (19” 2 HE)
