Site Preparation
BlackDiamond 12800 Series Switches Hardware Installation Guide 50

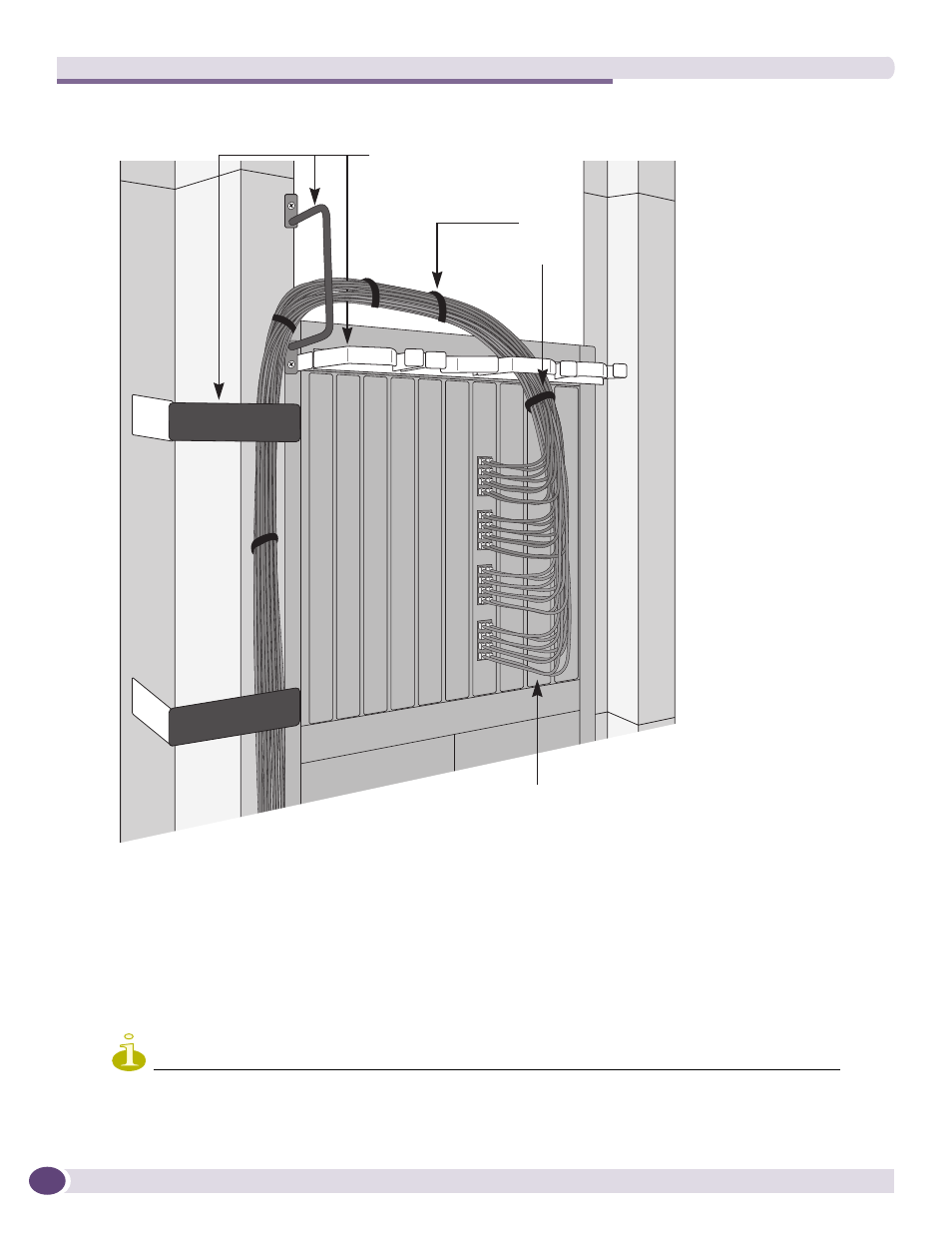

Figure 23: Properly Installed and Bundled Cable
Fiber Optic Cable
Fiber optic cable must be handled carefully during installation. Every cable has a minimum bend
radius, for example, and fibers will be damaged if the cables are bent too sharply. It is also important
not to stretch the cable during installation. We recommend that the bend radius for fiber optic cable
equal 2 inches (5.08 cm) minimum for each 90-degree turn as shown in
Figure 24 .
NOTE
Kinks and sharp bends can destroy or impair the cable’s ability to convey light pulses accurately from one end of
the cable to the other. Use care in dressing the optical fiber cables: provide satisfactory strain relief to support the
SPG_008
Proper
bundling
of cables
Cable managers supporting
and directing cables
Adequate
slack, and
bend radius
