Figure 3-12, Figure 3-13 – Grass Valley CopperHead PowerWafer User Manual
Page 28
24
CopperHead System Components
MPS External PowerWafer Power Supply

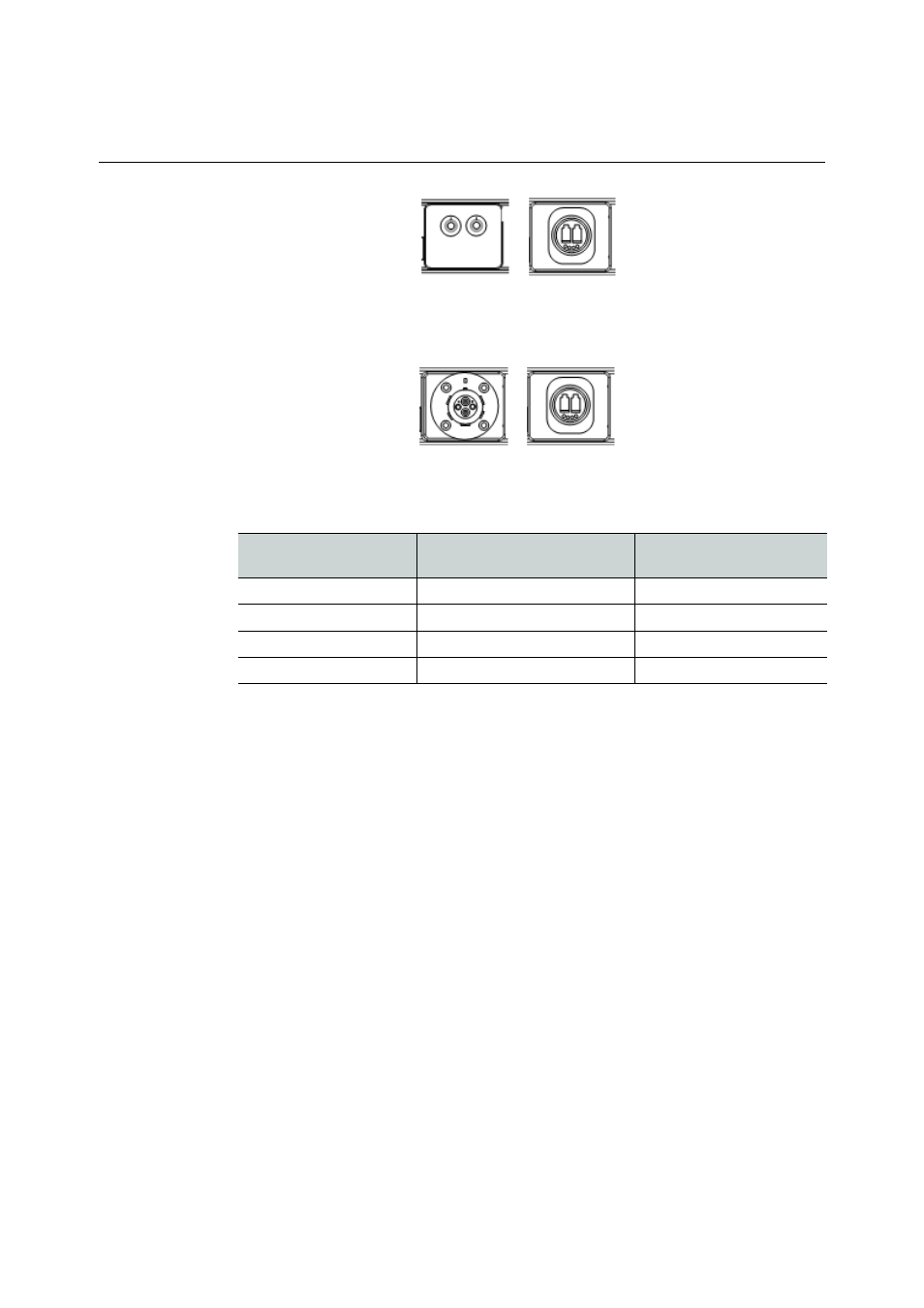

Fig. 3-12: MPS "dry" fiber connector options
The "dry" connection y to the CopperHead Base Station can be equipped with two ST
connectors or a "dry" OpticalCON connector.
Fig. 3-13: MPS powered fiber connector options
The powered connection V to the CopperHead Camera Unit can be equipped with a SMPTE
304M connector or a powered OpticalCON connector.
Part Number
Dry Unpowered Fiber
Connection to Base Station (y)
Powered Fiber Connection
to Camera (V)
CH2-MPS-95VD-2ST-NEU
2 STs
OpticalCON
CH2-MPS-95VD-2ST-304
2 STs
SMPTE 304M
CH2-MPS-95VD-NEU-NEU OpticalCON
OpticalCON
CH2-MPS-95VD-NEU-304
OpticalCON SMPTE
304
