CopperHead Transceiver System Components
The CopperHead Camera Unit fits between the battery or optional power supply and the
camera. The Camera Unit is configured at time of purchase with mounting plates to
accommodate the appropriate camera battery type.
The camera battery or optional power source attaches to Camera Unit, which in turn,
attaches to the video camera. Batteries accommodated are Anton/Bauer Gold Mount and
Sony "V" Mount. Other camera mounting plates may be available by special order. Please
contact Miranda (see
on page 35) or your authorized dealer.
The Camera Unit is equipped with a swivel-mounted fiber optic connector, which can be
ordered with an OpticalCON, MX or SMPTE 304M connector. For more information, see

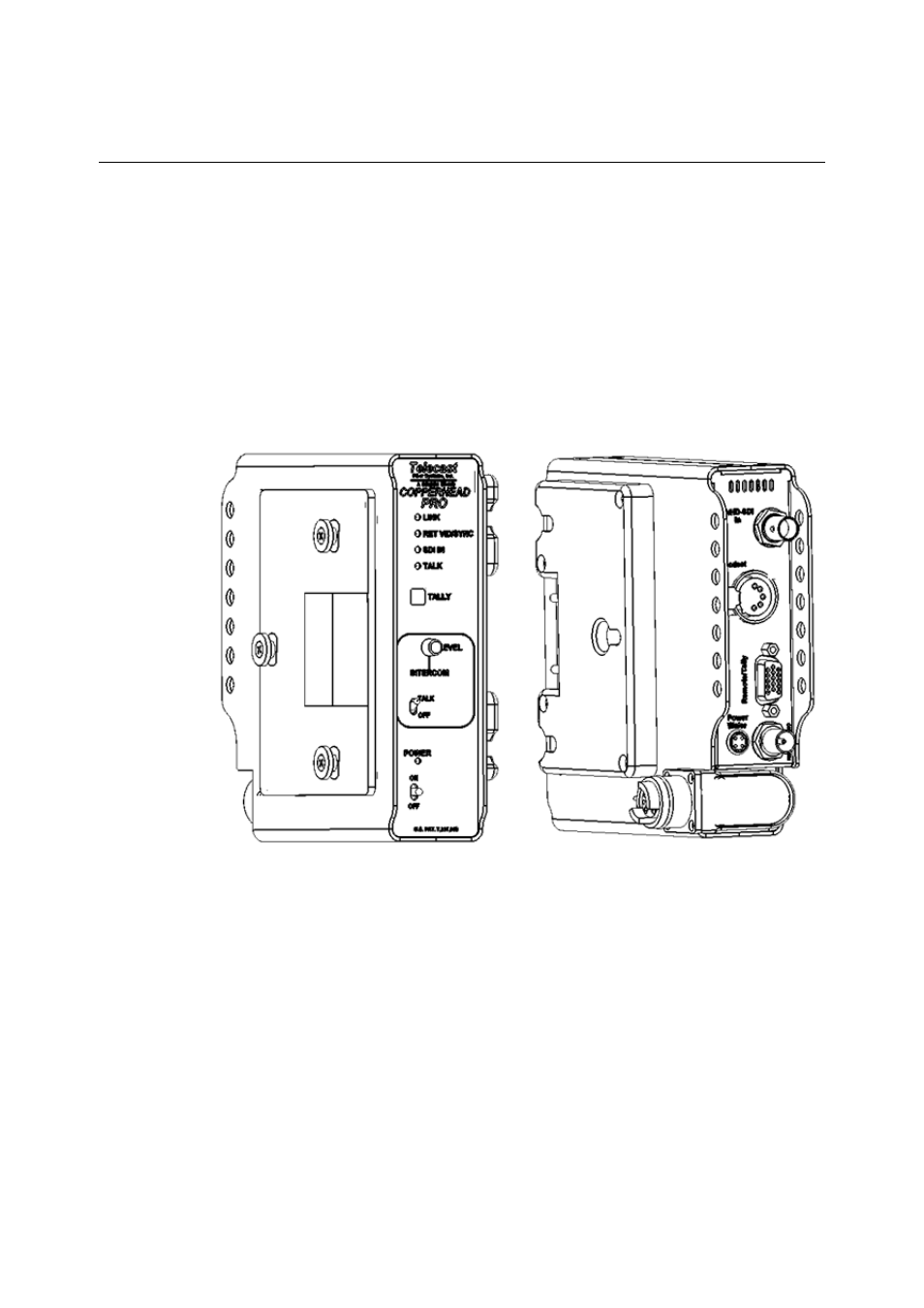

Fig. 2-6: Camera Unit Front and Rear
The actual appearance of your CopperHead Camera Unit will vary depending on the
battery mount and fiber cable connector options specified at the time of purchase.
Camera Unit Front
(attaches to the camera)
Camera Unit Rear (attaches to
battery or power supply)
