8949MDA-CFR/-SFR — Instruction Manual 27
Remote Configuration
8949MDA-CFR and 8949MDA-SFR Links and Web Pages
The 8900 GUI provides the following links and web pages for the
8949MDA-CFR and 8949MDA-SFR modules (
Figure 11 ):
• Status – reports input and output signals and frame bus communica-
tion status and module information (
page 28 ),
• Settings – allows the configuration of the inputs and outputs ( page 33 ),
• Slot Config – provides Locate Module and Slot Memory functions
along with links to the SNMP, LED Reporting, and Frame Alarm con-
figuration web pages (
page 37 ).
All parameters that can be set on the web pages are summarized in Table 10
on page 49 .

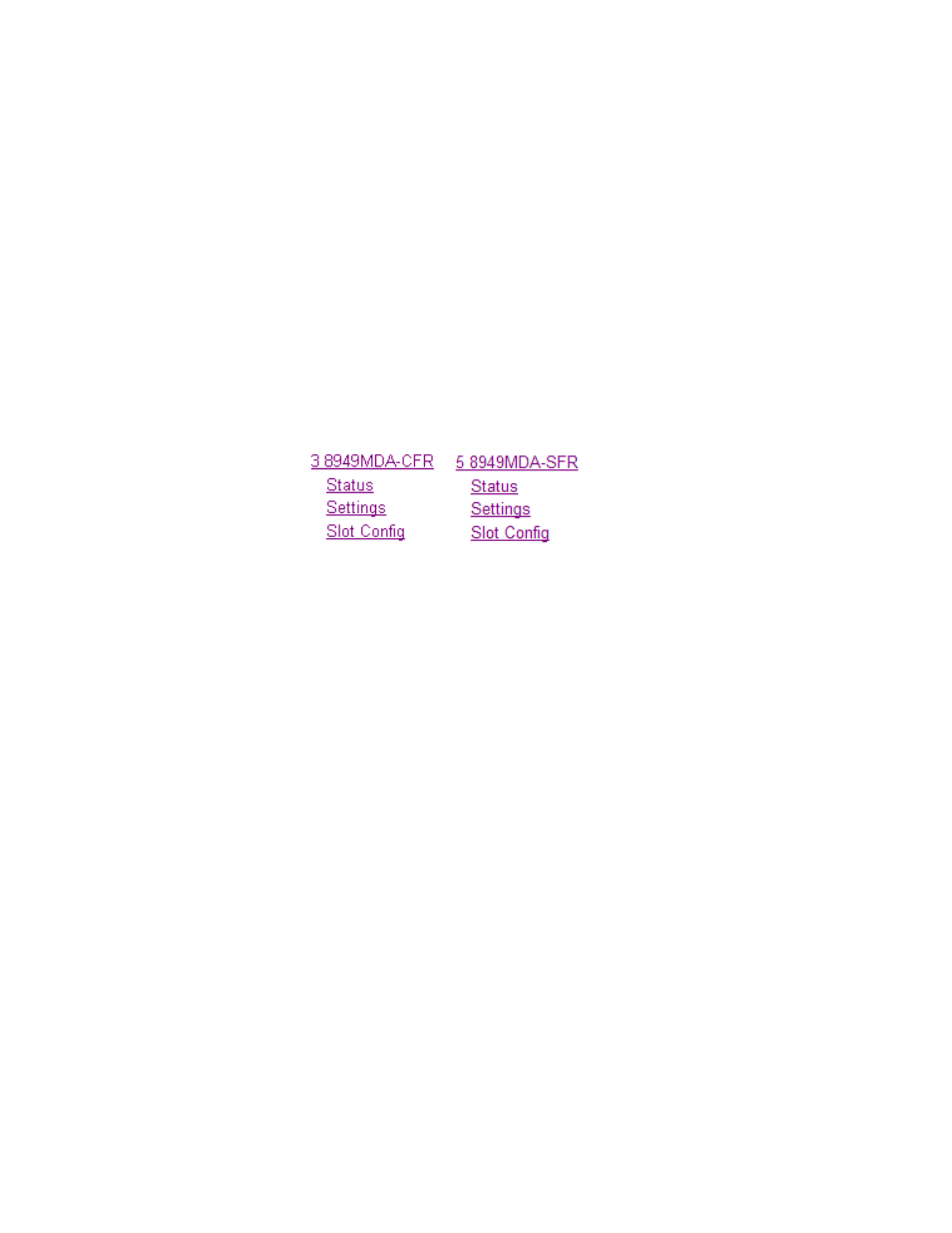

Figure 11. 8949MDA Web Page Links
