Local On-board Module Configuration
The 2090MDC module can be configured locally using the jumper, and
rotary and paddle switches shown in
Figure 7 . The CONF LED indicates
status of the configuration process.
These components perform the following:
■ Jumper JP5 – sets control mode for Local only or Remote and Local.
■ SW 1 Function (rotary) switch – selects functions performed by paddle
switch SW2. Refer to
Table 4 for details.
■ SW2 (paddle) switch – executes the functions selected by rotary switch.
Refer to
Table 4 for details.
■ CONF (configuring) LED – when on, indicates the module is initial-
izing or processing configuration information.

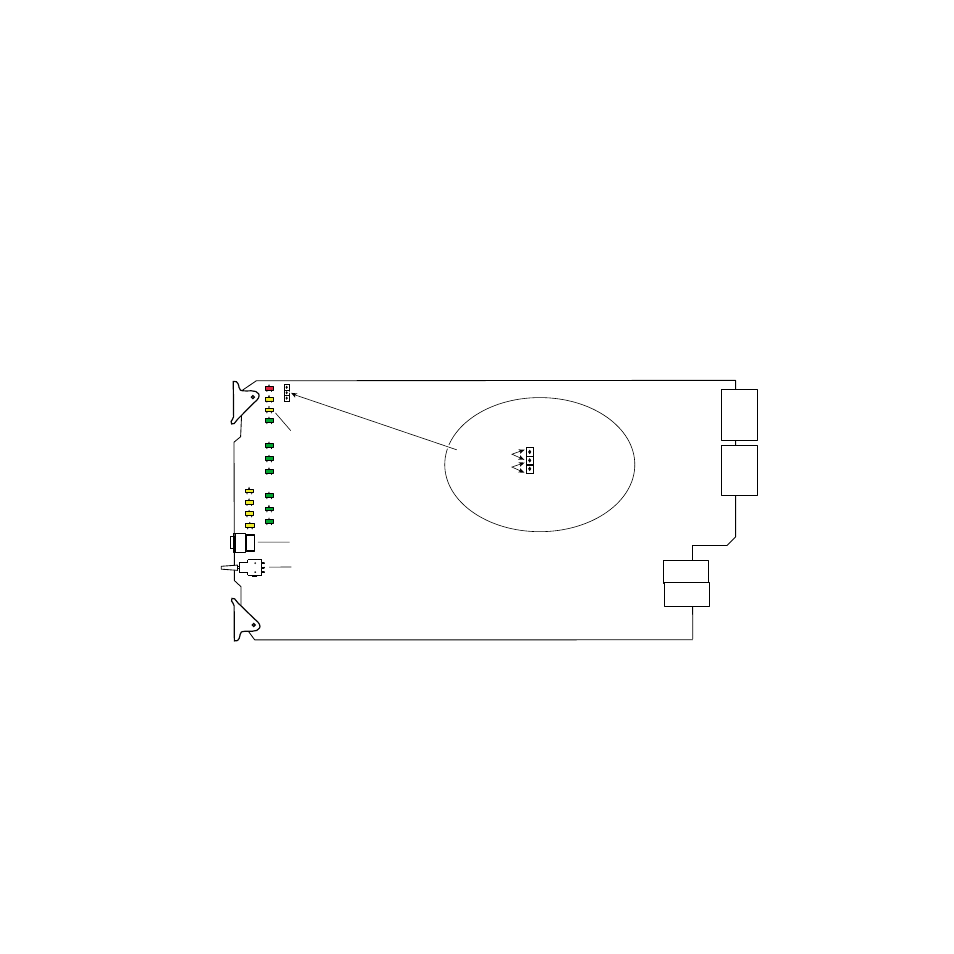

Figure 7. Module Configuration Jumpers and Switches
Remote Control Jumper
When the jumper is placed across pins 1 and 2 of jumper block JP5 (see
Figure 7 ), module output mode settings are adjustable from the local on-
board switches only. To have both local and remote access, set the jumper
across pins 2 and 3.
8029_06
Remote Control Lockout
JP5
LOCAL
LOCAL & REM
Jumper across pins 1–2
locks out remote control
Jumper across pins 2–3
enables remote and
local control
1
CONF – Configuration
processing LED
SW1 – Function rotary switch
SW2 – Paddle switch for executing function selections
