Cabling
All cabling to the 2090MDC module is done on the corresponding passive
rear module at the back of the 2000 frame. Refer to
illustration of the rear connections referenced below.
Note
At the back of this manual are overlay cards that can be placed over the BNC
connectors to identify specific 2090MDC connector functions.
Inputs
Connect an HD video input to BNC J10. The 2090MDC will accept any of
the HD video standards listed in the Serial HD Input specifications in
.
Outputs
Connect video monitors to the following outputs provided on the passive
rear module:
■
HD Out1 and HD Out 2 – two output BNCs (J8/J9)
■
SD Out1 and SD Out2 – two serial digital output BNCs (J6/J7)
■
NTSC/PAL composite – two output BNCs (J4/J5)
■
Component analog – three output BNCs (J3–Y/G, J2–U/B, J1–V/R)

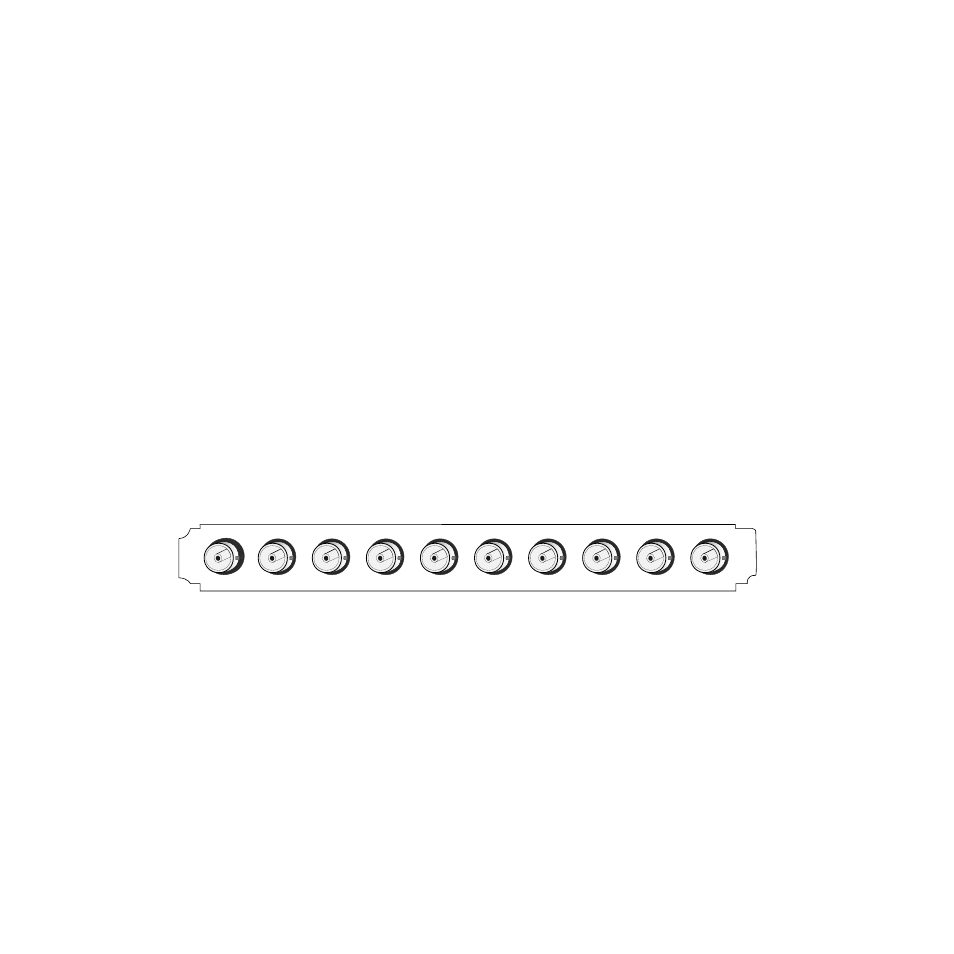

Figure 4.
2090MDC
Input/Output Connectors
8029_03
J10
J9
J8
J7
J6
J5
J4
J3
J2
J1
R
B
G
Comp2
Comp1
SD Out2
SD Out1
HD Out2
HD Out1
HD In
2090MDC
